MOX-300002506JE datasheet, PDF

Datasheet> All Categories > Passive components> MOX-300002506JE

MOX-300002506JE: Descriptionthick film resistors - through hole 250m 5%; CategoryPassive components; File Size245KB，2 Pages; ManufacturerOhmite; Websitehttps://www.ohmite.com; Environmental Compliance

Download Datasheet Parametric Compare View All

MOX-300002506JE Overview

thick film resistors - through hole 250m 5%

MOX-300002506JE Parametric

Parameter Name	Attribute value
Manufacture	Ohmite
Product Category	Thick Film Resistors - Through Hole
RoHS	Yes
Resistance	250 MOhms
Power Rating	500 mW (1/2 W)
Tolerance	5 %
Termination Style	Axial
Packaging	Bulk
Factory Pack Quantity	100

Preview

Download Datasheet

View All

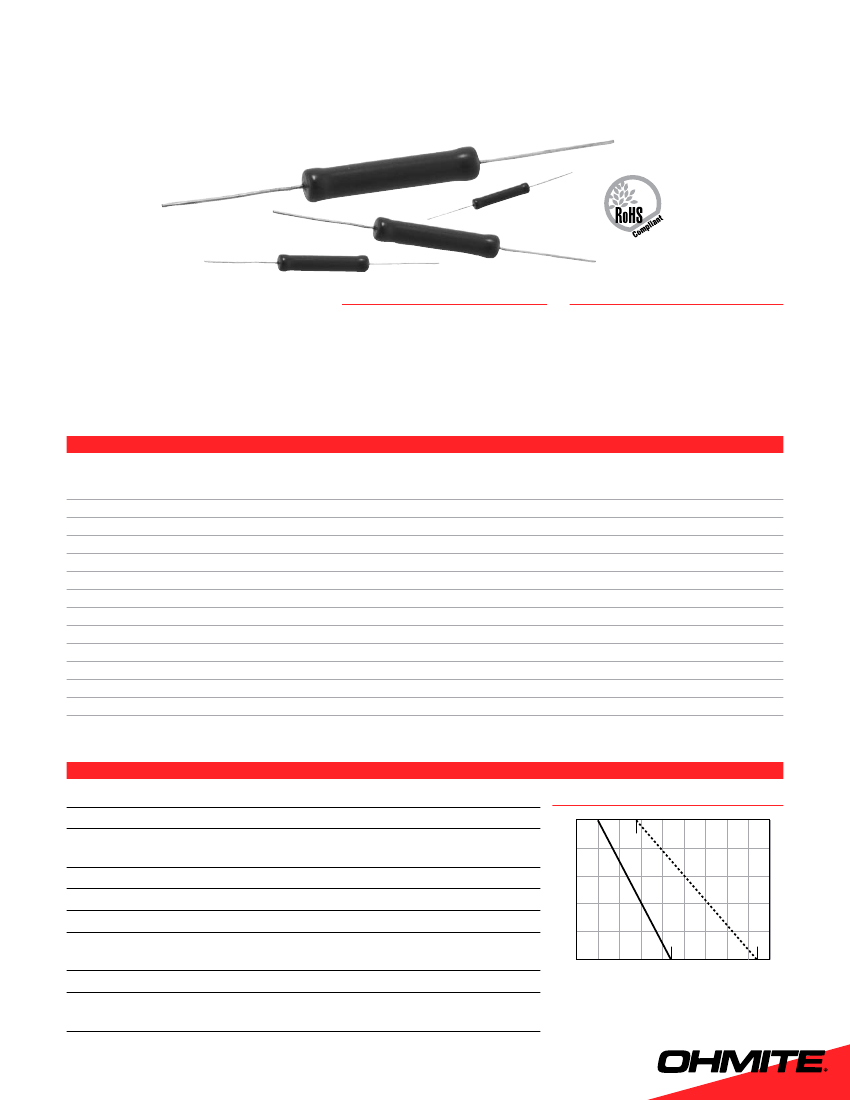

Maxi-Mox

Precision Thick Film Axial Terminal

High Voltage/High Resistance

Maxi-Mox resistors are also versatile.

Suitable for industrial applications

requiring still more power for high

voltage switching, industrial control,

and high voltage current limiting.

F e at u r e s

a P P l i C at i O n s

• Wide resistance ranges

• Voltage rating to 50KV

• Power rating to 12.5 watts

• Silicone or epoxy coating

• Non-inductive available

Power

@70°C

• HV power supplies

• Power distribution

• Medical instrumentation

• Avionics

s e r i e s s P e C i F i C at i O n s

Ohmite

Resistance

Series

Range (Ω)

• High-temperature (silicone coated)

MOX-1-12

250Ω to 300,000M

MOX-2-12

500Ω to 700,000M

MOX-3-12

750Ω to 1,000,000M

MOX-4-12

1K to 1,000,000M

MOX-5-12

1.25K to 1,000,000M

• Standard (epoxy coated)

MOX-1-13

250Ω to 300,000M

MOX-2-13

500Ω to 700,000M

MOX-3-13

750Ω to 1,000,000M

MOX-4-13

1K to 1,000,000M

MOX-5-13

1.25K to 1,000,000M

Voltage

Rating

Available

Tolerances*

Capacitance

(pf)

2.5W

10.0KV

1% to 20%

0.75

5.0W

20.0KV

1% to 20%

0.60

7.5W

30.0KV

1% to 20%

0.50

10.0W

40.0KV

1% to 20%

0.40

12.5W

50.0KV

1% to 20%

0.30

@25°C

2.0W

10.0KV

0.1% to 20%

0.75

3.0W

20.0KV

0.1% to 20%

0.60

4.0W

30.0KV

0.1% to 20%

0.50

5.0W

40.0KV

0.1% to 20%

0.40

6.0W

50.0KV

0.1% to 20%

0.30

*Some tolerances are not available over the entire resistance range.

CharaCteristiCs

Percent Rated Watts

Resistance Range

250Ω to 1 Teraohm

Voltage Rating

10KV to 50KV

Power Rating

2.0W to 12.5W

Terminal

RoHS solder composition is 96% Sn, 3.5% Ag,

0.5% Cu

Resistor

Thick Film

Core

Alumina

d e r at i n g

100

70°

Silicone

Epoxy

Operating Temperature

-55°C to +210°C

Tolerance

0.5% to 20%; not all tolerances available in all

values

110°

100

125

150

175

210°

200

225

Ambient Temperature,

°C

Temperature

25ppm/°C 0° to 85°C available

Coefficient

(continued)

1-866-9-OHMITE • Int’l 1-847-258-0300 • Fax 1-847-574-7522 • www.ohmite.com • info@ohmite.com
