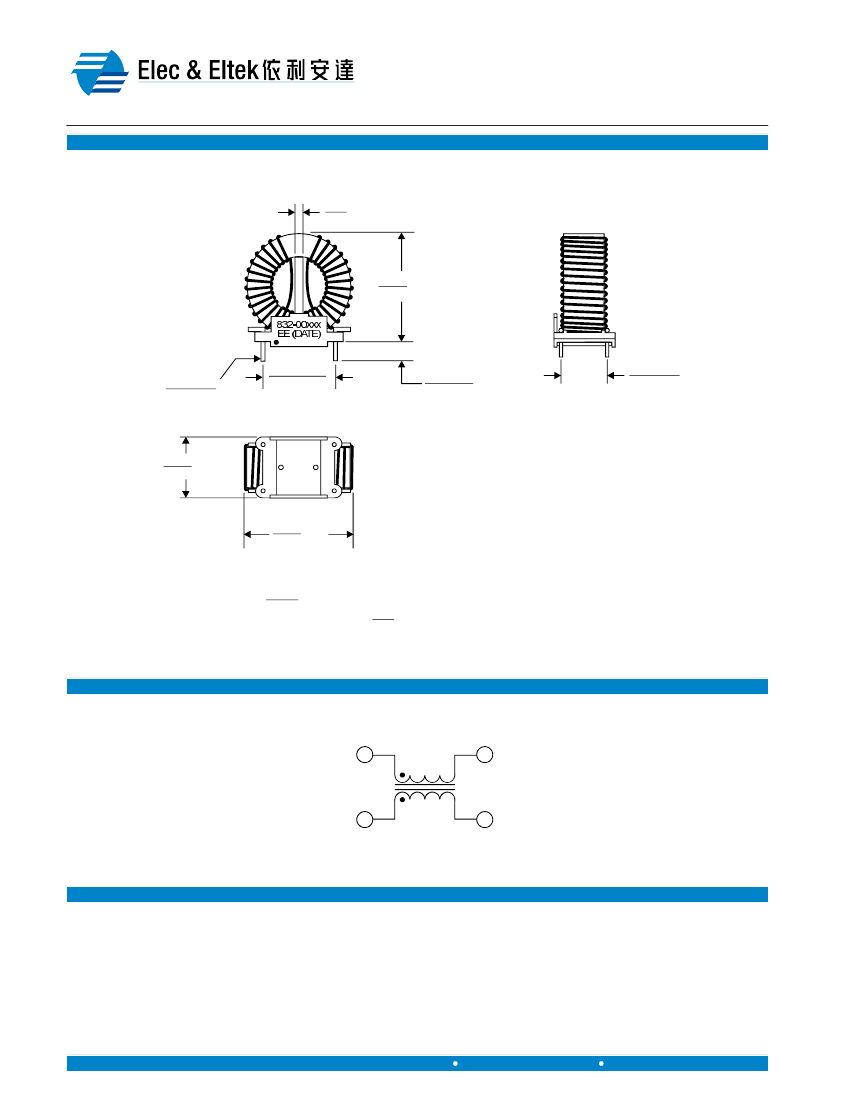

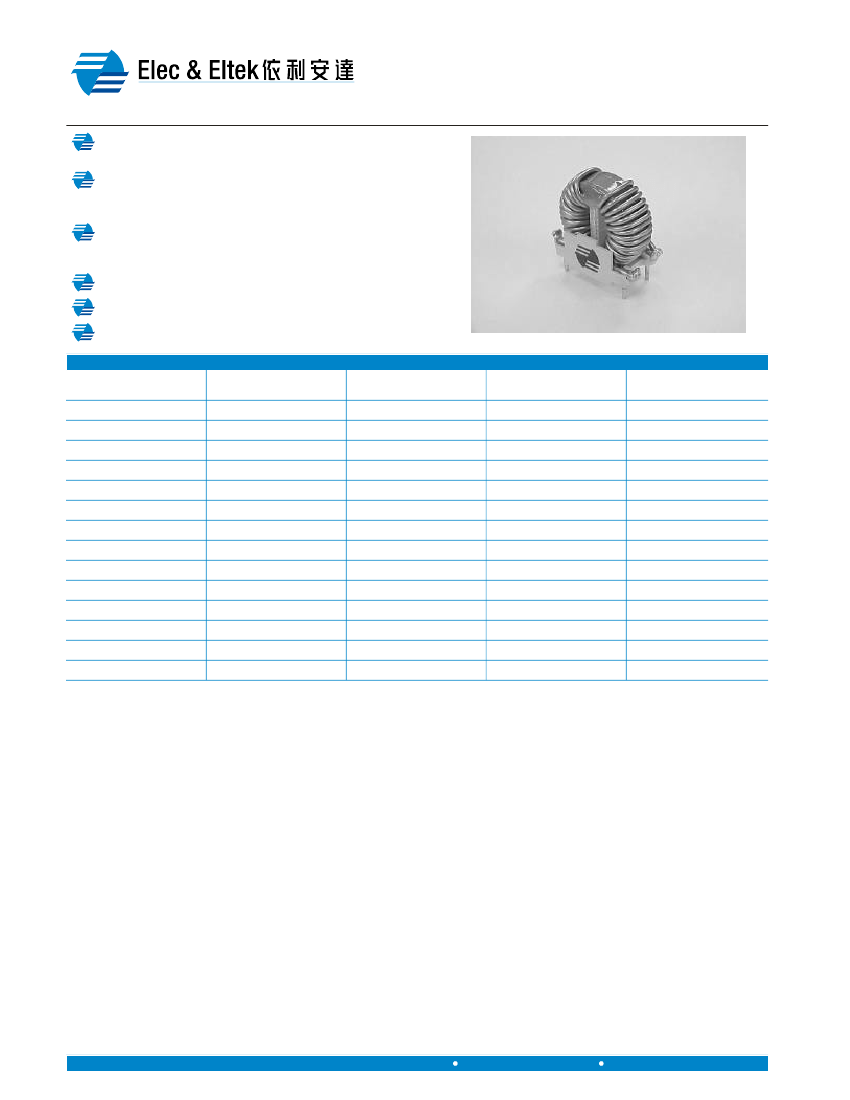

COMMON MODE CHOKE
E & E Magnetic Products Limited
Toroid Type, Vertical Mount
Effective in filtering supply lines having in-phase
S
CHEMATICS
signals of equal amplitude
Substantial attenuation can be achieved when the
part is used in conjunction with input and output
capacitors
Broad frequency range can be filtered by placing
high and low inductance common mode toroids in
series
1250 Vrms isolation between windings
Operating temperature: -40° to +85°C
Lead(Pb)-free versions are available
E
LECTRICAL
S
PECIFICATION @
25°C
Part
Number
832-00080
832-00079
832-00078
832-00077
832-00076
832-00075
832-00074
832-00073
832-00072
832-00071
832-00070
832-00069
832-00068
832-00067
Inductance, Ls
¹
(mH) Min.
72.0
125.0
36.0
62.0
19.0
32.0
15.0
26.0
10.0
17.0
7.5
13.0
6.0
10.0
Leakage Inductance, LL
(
µ
H) Max.
1400
1400
680
750
350
370
275
320
155
220
140
155
111
122
DCR
(
Ω)
Max.
1.150
1.150
0.415
0.415
0.150
0.158
0.114
0.115
0.057
0.062
0.042
0.043
0.030
0.029
Rated Current, Irms
(A) Max.
1
1
2
2
4
4
6
6
9
9
12
12
15
15
Notes:
1. Inductance tested at 15.75kHz, 0ADC.
Unit B10, 3/F., 94 Tokwawan Road, Kowloon, Hong Kong
1
Tel: (852) 2954 3333
Fax: (852) 2954 3304
PC104(02)
Revised in 04/05
COMMON MODE CHOKE
E & E Magnetic Products Limited
Toroid Type, Vertical Mount
M
ECHANICAL
D
IMENSIONS
S
CHEMATICS
.118 Typ.
3.00
2.100 Max.
53.34
1
∅:
.048±.005 X4
1.22±0.13
1
1.130
28.70 Max.
4
2.100
53.34 Max.
1.500±.010
38.10±0.25
2
2
.120-.180
3.05-4.57
3
.900±.010
22.86±0.25
2
3
Notes: Dimensions are specified in
inches
with higher precedence in inches.
mm
Unless otherwise specified, all tolerances are ±
0.25
.
“xxx” represents the last three digits of the corresponding part number.
.010
S
CHEMATICS
1
4
2
3
FOR MORE INFORMATION, PLEASE CONTACT
HEADQUARTER
UNIT B10, 3/F., Merit Industrial Centre,
94 Tokwawan Road, Kowloon,
Hong Kong
Tel: (852) 2954 3333
Fax: (852) 2954 3304
Email: eempl@eleceltek.com
Website: http://www.eleceltek.com
Information herein is for reference only and subject to change without notice. It does not constitute any representation, warranty or commitment of the company in respect
of the products in any aspect. All logos, brands and product names mentioned herein are trademarks or registered trademarks of their respective owners. The company
does not assume any liability arising out of the application or use of any product or circuit described herein. Copyrights 2004, E & E Magnetic Products Limited.
Unit B10, 3/F., 94 Tokwawan Road, Kowloon, Hong Kong
2
Tel: (852) 2954 3333
Fax: (852) 2954 3304
PC104(02)
Revised in 04/05
