DLZ-13CA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> DLZ-13CA

DLZ-13CA: DescriptionTrans Voltage Suppressor Diode, 500W, 13V V(RWM), Bidirectional, 15 Element, Silicon, 0.300 INCH, HERMETIC SEALED, CERAMIC, CASE 29, DIP-16; CategoryDiscrete semiconductor diode; File Size101KB，2 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric Compare View All

DLZ-13CA Overview

Trans Voltage Suppressor Diode, 500W, 13V V(RWM), Bidirectional, 15 Element, Silicon, 0.300 INCH, HERMETIC SEALED, CERAMIC, CASE 29, DIP-16

DLZ-13CA Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	DIP
package instruction	R-CDIP-T16
Contacts	16
Manufacturer packaging code	CASE 29
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	LOW CAPACITANCE
Minimum breakdown voltage	14.4 V
Breakdown voltage nominal value	14 V
Maximum clamping voltage	25.4 V
Configuration	COMMON BIPOLAR TERMINAL, 15 ELEMENTS
Minimum diode capacitance	385 pF
Diode component materials	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
JESD-30 code	R-CDIP-T16
JESD-609 code	e0
Maximum non-repetitive peak reverse power dissipation	500 W
Number of components	15
Number of terminals	16
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR
Package form	IN-LINE
polarity	BIDIRECTIONAL
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	13 V
Maximum reverse current	4 µA
surface mount	NO
technology	AVALANCHE
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal location	DUAL
Base Number Matches	1

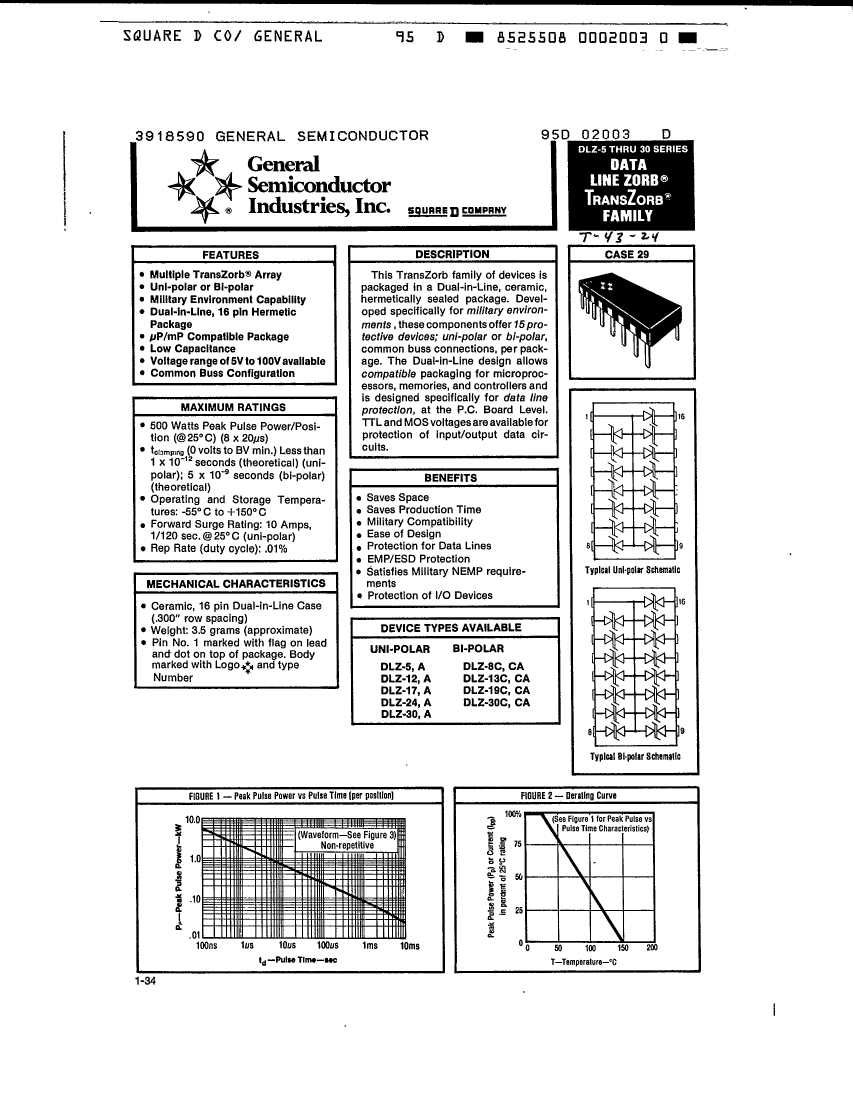

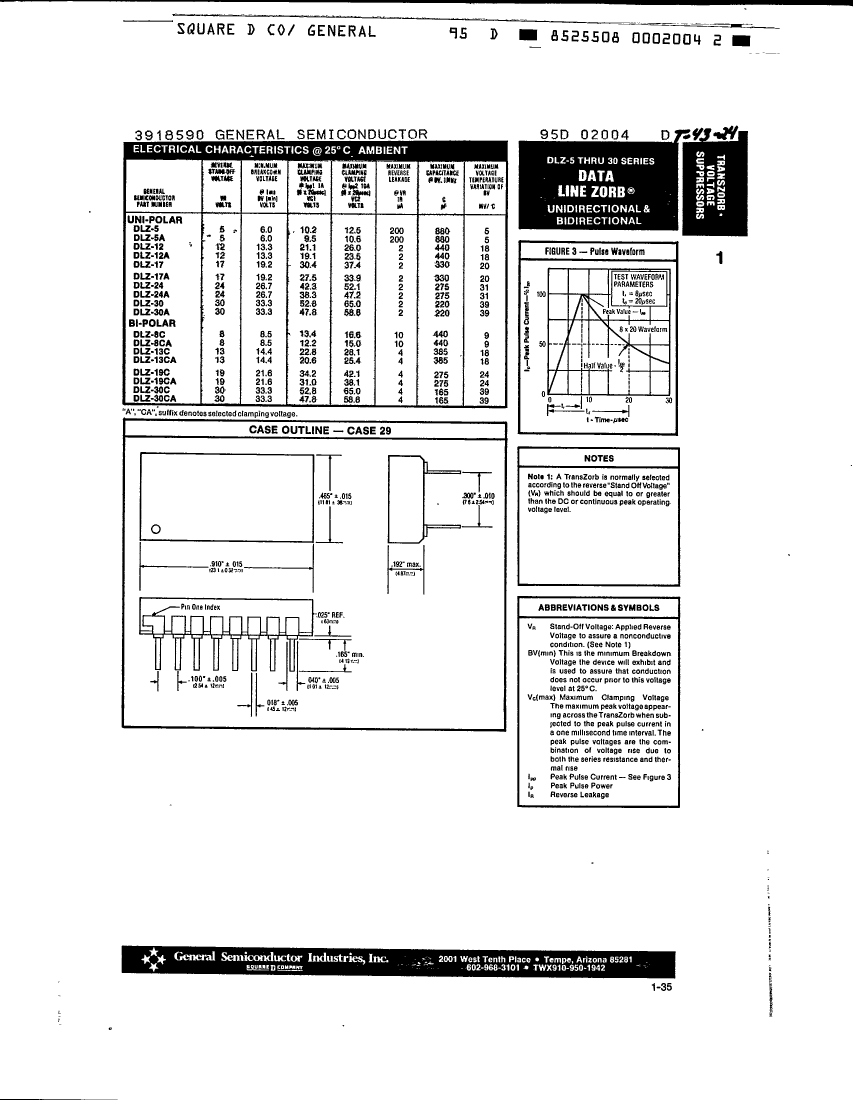

Preview

Download Datasheet

View All

DLZ-13CA Related Products

	DLZ-13CA	DLZ-13C	DLZ-8CA	DLZ-8C	DLZ-30CA	DLZ-19C	DLZ-30C	DLZ-19CA
Description	Trans Voltage Suppressor Diode, 500W, 13V V(RWM), Bidirectional, 15 Element, Silicon, 0.300 INCH, HERMETIC SEALED, CERAMIC, CASE 29, DIP-16	Trans Voltage Suppressor Diode, 500W, 13V V(RWM), Bidirectional, 15 Element, Silicon, 0.300 INCH, HERMETIC SEALED, CERAMIC, CASE 29, DIP-16	Trans Voltage Suppressor Diode, 500W, 8V V(RWM), Bidirectional, 15 Element, Silicon, 0.300 INCH, HERMETIC SEALED, CERAMIC, CASE 29, DIP-16	Trans Voltage Suppressor Diode, 500W, 8V V(RWM), Bidirectional, 15 Element, Silicon, 0.300 INCH, HERMETIC SEALED, CERAMIC, CASE 29, DIP-16	Trans Voltage Suppressor Diode, 500W, 30V V(RWM), Bidirectional, 15 Element, Silicon, 0.300 INCH, HERMETIC SEALED, CERAMIC, CASE 29, DIP-16	Trans Voltage Suppressor Diode, 500W, 19V V(RWM), Bidirectional, 15 Element, Silicon, 0.300 INCH, HERMETIC SEALED, CERAMIC, CASE 29, DIP-16	Trans Voltage Suppressor Diode, 500W, 30V V(RWM), Bidirectional, 15 Element, Silicon, 0.300 INCH, HERMETIC SEALED, CERAMIC, CASE 29, DIP-16	Trans Voltage Suppressor Diode, 500W, 19V V(RWM), Bidirectional, 15 Element, Silicon, 0.300 INCH, HERMETIC SEALED, CERAMIC, CASE 29, DIP-16
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP
package instruction	R-CDIP-T16	R-CDIP-T16	R-CDIP-T16	R-CDIP-T16	R-CDIP-T16	R-CDIP-T16	R-CDIP-T16	R-CDIP-T16
Contacts	16	16	16	16	16	16	16	16
Manufacturer packaging code	CASE 29	CASE 29	CASE 29	CASE 29	CASE 29	CASE 29	CASE 29	CASE 29
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	LOW CAPACITANCE	LOW CAPACITANCE	LOW CAPACITANCE	LOW CAPACITANCE	LOW CAPACITANCE	LOW CAPACITANCE	LOW CAPACITANCE	LOW CAPACITANCE
Minimum breakdown voltage	14.4 V	14.4 V	8.5 V	8.5 V	33.3 V	21.6 V	33.3 V	21.6 V
Breakdown voltage nominal value	14 V	14 V	8.5 V	8.5 V	33 V	22 V	33 V	22 V
Maximum clamping voltage	25.4 V	28.1 V	15 V	16.6 V	58.8 V	42.1 V	65 V	38.1 V
Configuration	COMMON BIPOLAR TERMINAL, 15 ELEMENTS	COMMON BIPOLAR TERMINAL, 15 ELEMENTS	COMMON BIPOLAR TERMINAL, 15 ELEMENTS	COMMON BIPOLAR TERMINAL, 15 ELEMENTS	COMMON BIPOLAR TERMINAL, 15 ELEMENTS	COMMON BIPOLAR TERMINAL, 15 ELEMENTS	COMMON BIPOLAR TERMINAL, 15 ELEMENTS	COMMON BIPOLAR TERMINAL, 15 ELEMENTS
Minimum diode capacitance	385 pF	385 pF	440 pF	440 pF	165 pF	275 pF	165 pF	275 pF
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE
JESD-30 code	R-CDIP-T16	R-CDIP-T16	R-CDIP-T16	R-CDIP-T16	R-CDIP-T16	R-CDIP-T16	R-CDIP-T16	R-CDIP-T16
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
Maximum non-repetitive peak reverse power dissipation	500 W	500 W	500 W	500 W	500 W	500 W	500 W	500 W
Number of components	15	15	15	15	15	15	15	15
Number of terminals	16	16	16	16	16	16	16	16
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
polarity	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	13 V	13 V	8 V	8 V	30 V	19 V	30 V	19 V
Maximum reverse current	4 µA	4 µA	10 µA	10 µA	4 µA	4 µA	4 µA	4 µA
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
technology	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Base Number Matches	1	1	1	1	1	1	1	-
