284527: DescriptionD Subminiature Connector, 15 Contact(s), Female, Press Fit Terminal, #4-40, Plug,; CategoryThe connector The connector; File Size80KB，1 Pages; ManufacturerERNI; Websitehttp://www.erni.com; Environmental Compliance

Download Datasheet Parametric Compare View All

284527 Overview

D Subminiature Connector, 15 Contact(s), Female, Press Fit Terminal, #4-40, Plug,

284527 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ERNI
Reach Compliance Code	compliant
Other features	STANDARDS: DIN 41652; IEC 807-3; MIL-C-24308
body width	0.496 inch
subject depth	0.583 inch
body length	1.547 inch
Body/casing type	PLUG
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Tin (Sn)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	STAGGERED
Contact resistance	25 mΩ
Contact style	RND PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	1400VAC V
empty shell	NO
Filter function	NO
IEC compliance	YES
maximum insertion force	3.2804 N
Insulation resistance	5000000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e3
MIL compliance	YES
Mixed contacts	NO
Installation option 1	#4-40
Installation option 2	THREADED
Installation method	RIGHT ANGLE
Installation type	BOARD AND PANEL
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.54 mm
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Housing size	2/A
Terminal length	0.118 inch
Terminal pitch	2.7432 mm
Termination type	PRESS FIT
Total number of contacts	15
UL Flammability Code	94V-0
Evacuation force-minimum value	.278 N
Base Number Matches	1

Preview

Download Datasheet

View All

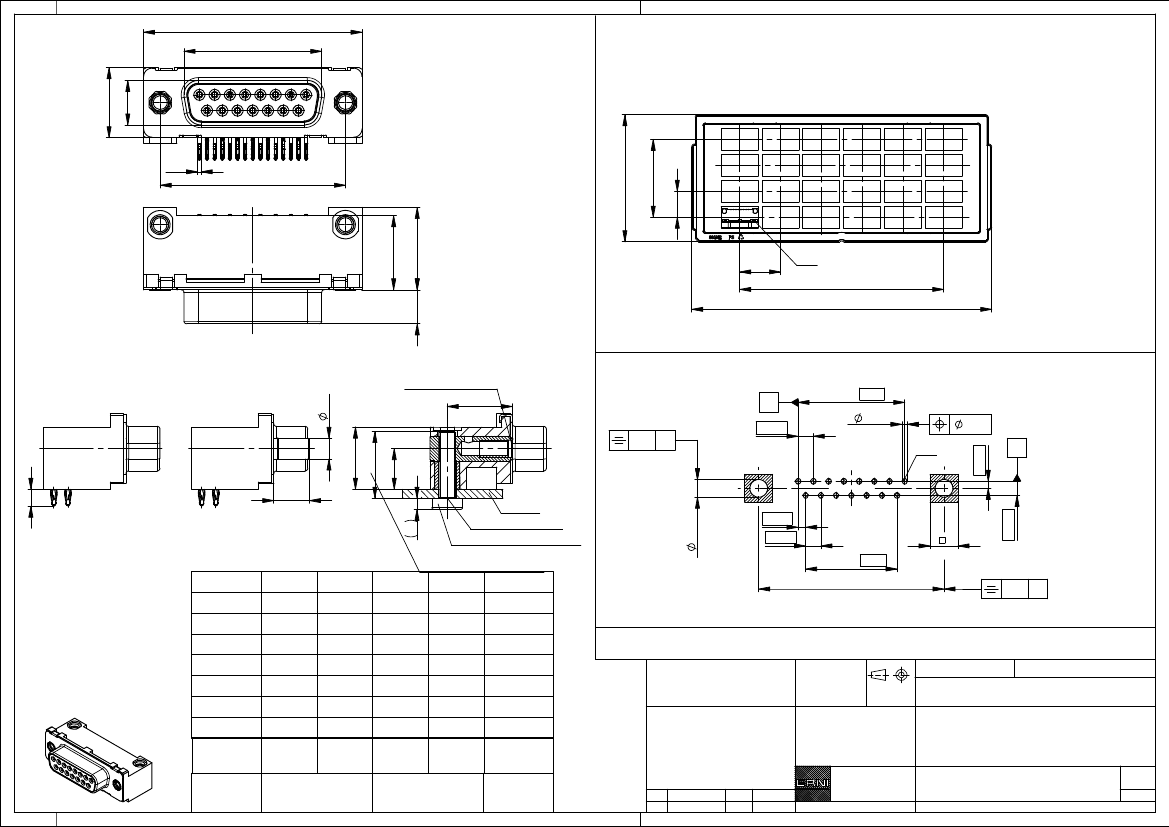

39,3

-0,4

+0,2

24,75

-0,2

Verpackt in Tray

Verpackungseinheit 24 Stck

12,6

±0,3

tray packaging

packaging unit 24 pcs

8

-0,2

33,3

±0,1

138

max.

0,6

3 x 28 = 84

13,3

14,8

28

44

6,3

-0,25

Pin 1

5 x 44 = 220

325

max.

Sonstige Angaben siehe Zeichnung 204629 /

Additional inications according to drawing 204629

Mutter /

nut

Gewindetiefe 5,9 mm

Bolzen /

bolt

Gewindetiefe 6 mm

Anwendungsbeispiel /

example of use

Gewinde A /

thread A

3,7

11,7

Layoutvorschlag

depth of thread 5,9 mm

depth of thread 6 mm

recommended layout

A

2,74

0,05

B

7x 2,74 = 19,18

1

-0,06

+0,09

0,05

1,27

Pin 1

B

11,2

±0,1

6,4

3,2

±0,1

2,54

5

6 x 2,74 = 16,44

33,3

±0,05

sonstige Angaben siehe 164062 /

additional indications according to 164062

Fehlende Masse und Angaben siehe DIN 41652 /

Missing information and dimensions according to DIN 41652

Sonstige Angaben siehe Fertigungsunterlagen /

Additional indications according to production documentation

Copyright by ERNI GmbH

Proprietary notice pursuant to ISO 16016 to be observed.

3

7,3

±0,1

12

2

LP /

PCB

Gewinde B /

thread B

( Schraube /

Screw

DIN 7984 )

empfohlene Gewindelänge /

M3

#4-40

M3

1,37

2,74

recommended thread length

Anschlussbereich verzinnt

284529

284528

#4-40

M3

#4-40

M3

#4-40

M3

#4-40

M3

0,05

A

terminal area tin plating

Anforderungsstufe: 2

class: 2

Information:

Tolerances

All Dimensions

in mm

Scale

2:1

284527

#4-40

M3

Gewinde A Gewinde B Gewinde A Gewinde B

thread A

thread B

thread A

thread B

Ident-Nr.

Tray /

tray

Only for Information.

To ensure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

d

Index

09.12.2011

Date

Designation

Subject to modification without

prior notice.

Drawing will not be updated.

TMC-S-15-EE-SV-Standard-BA8-ZV

part-no.

Quermutter

nut

Querbolzen

bolt

Bemerkung

www.ERNI.com

Class

remark

224962

TMCS

I

A3
