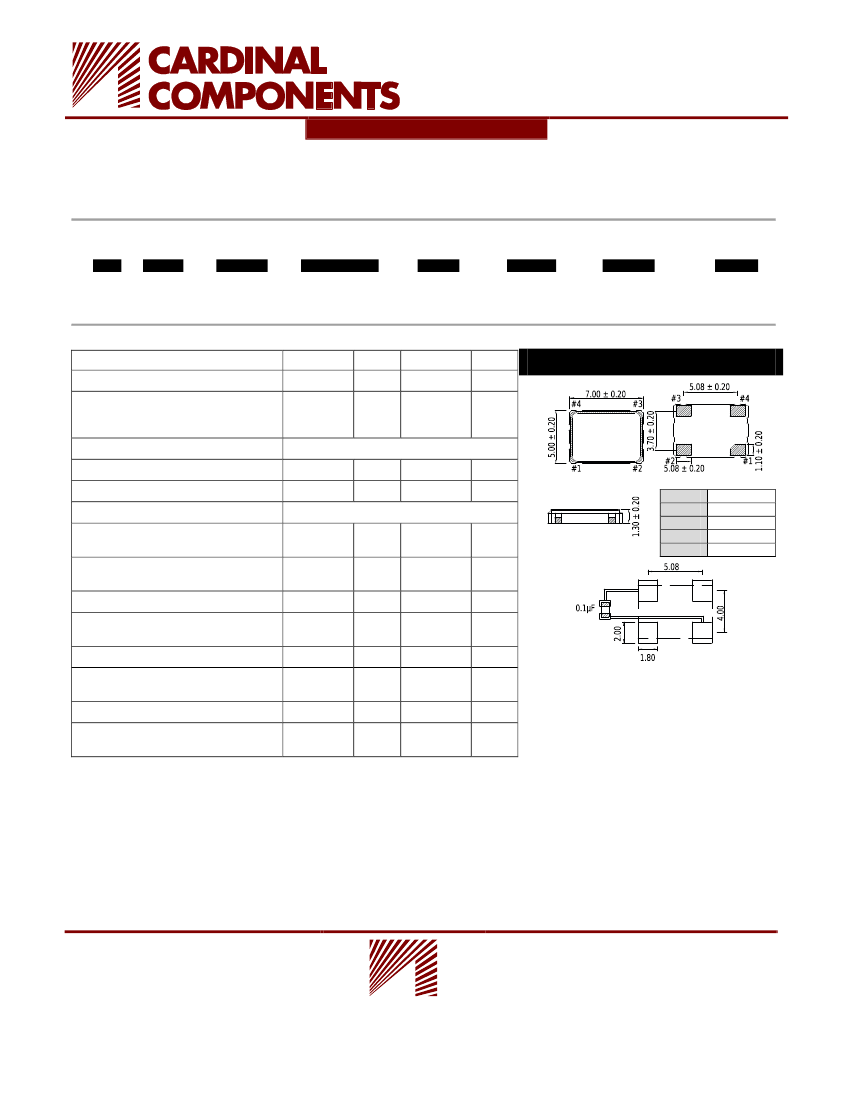

CARDINAL COMPONENTS
Surface Mount Clock Oscillator
●
●
●
1.7mm height
High frequency range
Tight stability available
Series CC85
Instrument Part Number:
CC85
SERIES
CC85
CC85 L Z - A2 B2 45 - 83.333 TS
Z
A2
OPERATING TEMP
Blank = 0°C ~ +70°C
A2 = -40°C ~ +85°C
L
VOLTAGE
Blank = 5V
L = 3.3V
B2
STABILITY
Blank = ±100 PPM
B2 = ±50 PPM
BR = ±25 PPM
45
SYMMETRY
Blank = 40 / 60%
45 = 45 / 55%
83.333
FREQUENCY
0.0137 ~ 100.0 MHz
TS
TRI-STATE
TS = Tristate Standard
PACKAGING
Blank = Bulk Pack
Z = Tape and Reel
Specifications:
Description
Frequency Range:
Available Stability Options:
(Standard)
Min
13.7 KHz
-100.0
-50.0
-25.0
Typ
-
-
-
-
HCMOS
Max
166.00 MHz
100.0
50.0
25.0
Unit
PPM
PPM
PPM
PACKAGE OUTLINE
Output Format
Low Output Voltage:
High Output Voltage:
Output Load:
Input Voltage:
Input Current:
Rise/Fall Time:
Duty Cycle:
Tri-state Disable:
Tri-state Enable:
(@ 5V)
(@ 3.3V)
(Standard)
(@ 5V)
(@ 3.3V)
4.5
2.97
-
-
-
40
45
-
3.6
2.2
-55
0
-40
-
V
DD
* 0.9
-
-
V
DD
* 0.1
-
V
V
Pin #
1
2
3
4
Function
Tri-state
GND
Output
V
DD
15pF CMOS
5.0
3.3
-
-
-
-
-
-
-
-
-
-
-
5.5
3.63
65
35
3
60
55
0.8
-
-
+125
+70
+85
V
V
mA
mA
Ns
%
%
V
V
V
°C
°C
°C
For optimal performance, place a by-pass capacity of 0.1μF as close to the
part as possible between V
DD
and GND pads
Storage Temperature Range:
Operating Temperature Range:
(Standard)
