33-7023-30.00 Overview

Fixed Attenuator,

33-7023-30.00 Parametric

Parameter Name	Attribute value
Maker	Smiths Group
Reach Compliance Code	unknown
RF/Microwave Device Types	FIXED ATTENUATOR
Base Number Matches	1

Preview

Download Datasheet

View All

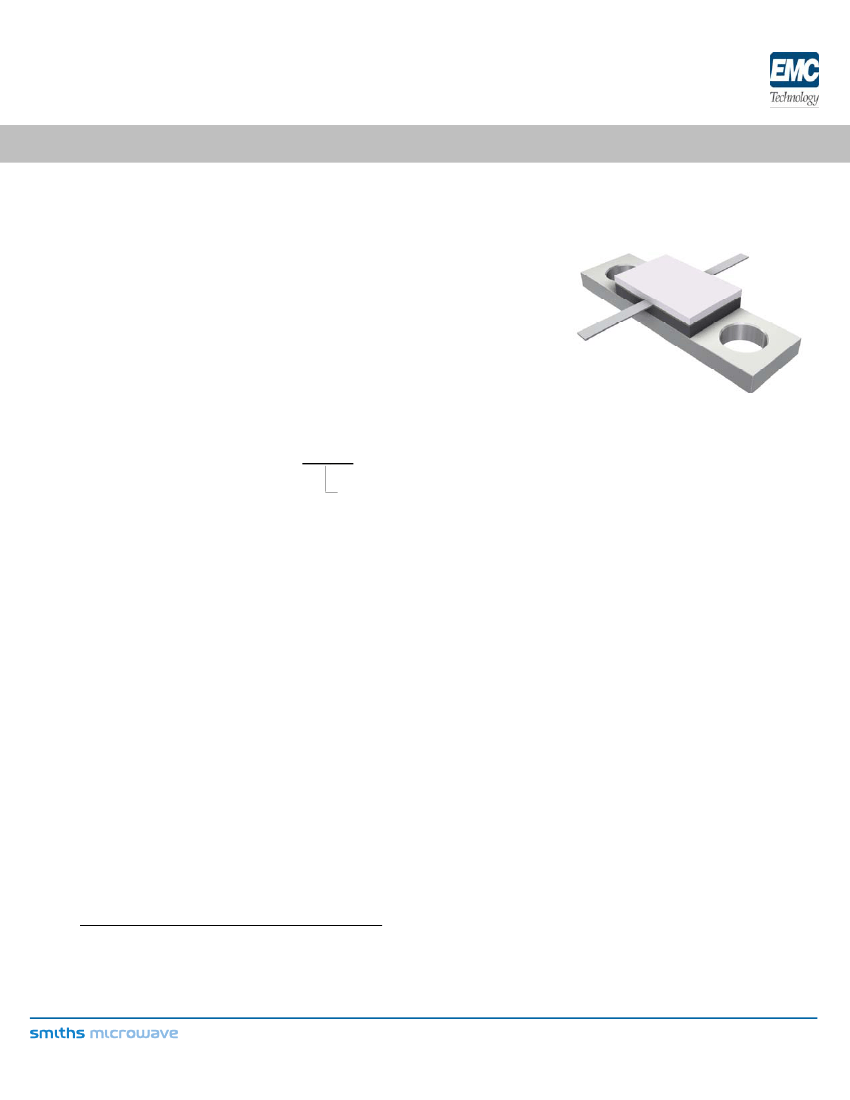

ATTENUATOR

FLANGE MOUNT 100 WATT

DATA SHEET

FEATURES

Tab Launch

High Power

Integrated Heat Sink

Low VSWR

Easy Installation

PART SERIES: 33-7023-XX.XX

APPLICATIONS

Mobile Networks

Broadcast

High Power Amplifiers

Isolators

Military

Instrumentation

SHEET 1 OF 2

Dwg 33-7023

EN 13-3530

Revision-

GENERAL DESCRIPTION

EMC Technology offers the widest selection of flange mount attenuators worldwide.

High power flange components offer excellent performance and the convenience of

bolt on installation.

ORDERING INFORMATION

Part Identifier:

33-7023-XX.XX

Attenuation Value

SPECIFICATIONS

1.0 ELECTRICAL

Nominal Impedance:

Frequency Range:

Attenuation Values Available:

Attenuation Accuracy:

50 ohms

DC - 2.5 GHz

1 through 30 dB in 1 dB increments

1 through 10 dB ± 0.5 dB

11 through 29 dB ± 1.0 dB

30 dB ± 1.5 dB

Input Power CW:

Peak Power:

VSWR:

100 watts @ 100˚C heat sink, derated linearly to zero power at 150˚C

1000 watts (based on 10us pulse width and 1% duty cycle)

1.20:1 Max

2.0 ENVIRONMENTAL

Operating Temperature:

Non-operating Temperature:

Temperature Coefficient:

-55˚C to +150˚C

-65˚C to +150˚C

+/-200 PPM / ˚C max

3.0 MARKING

Unit Marking:

Logo and Part Number; legibility and permanency per MIL-STD-130

4.0 QUALITY ASSURANCE

Sample Inspect Per MIL-STD-105, Level II, 1.0% AQL.

Visual and Mechanical Examination for Conformance To Outline Drawing Requirements.

Measure Attenuation and VSWR

Data Retention – Standard

5.0 PACKAGING

Standard Packaging:

Form 423F108

Tray

Rev-

Cage Codes: 24602 / 2Y194

Specifications are Subject to Change Without Notice

www.emc-rflabs.com • +1 772-286-9300

AS 9100, ISO 9001 and 14001 Certified
