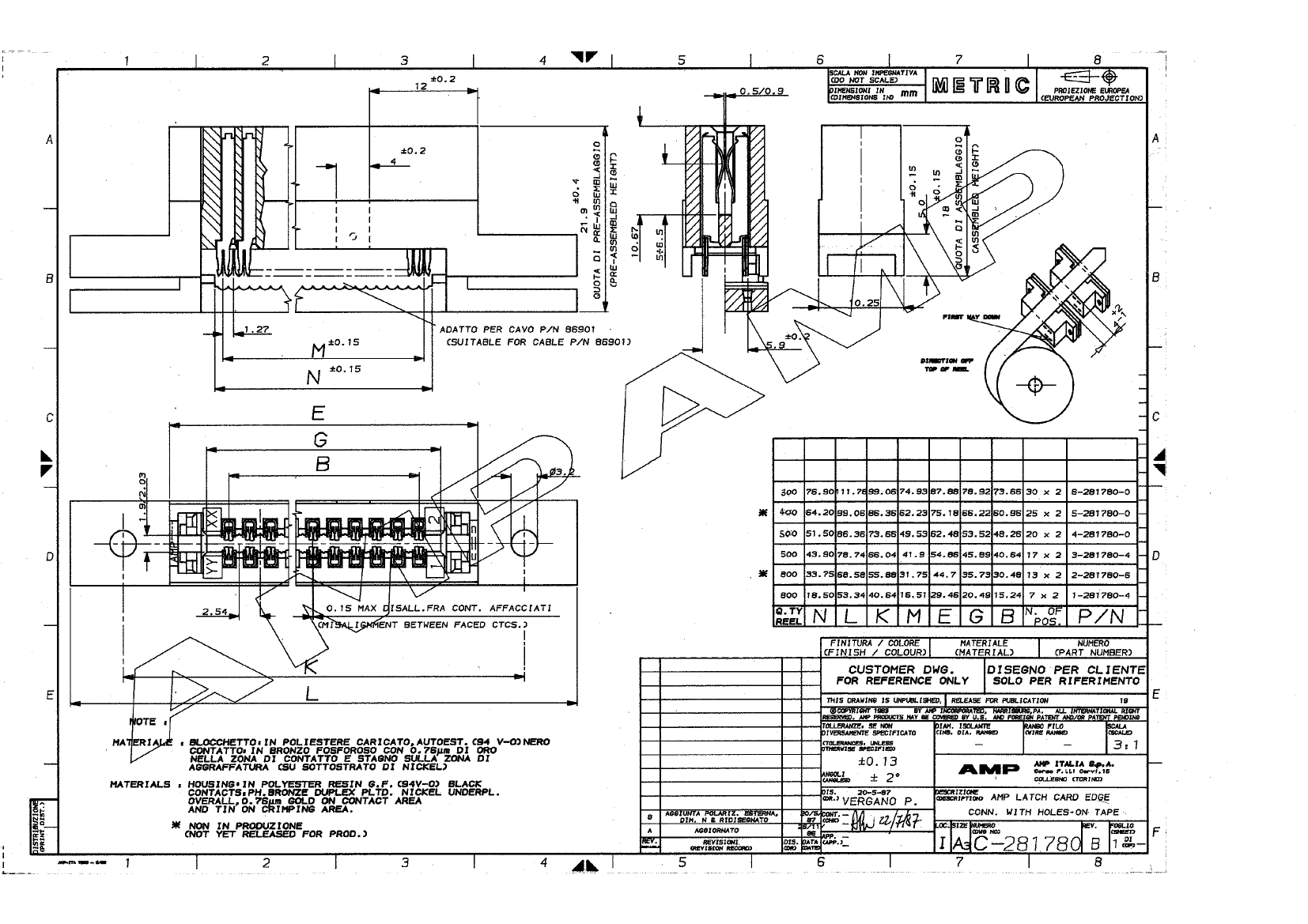

Preview

2-281780-6: Description26 CONTACT(S), FEMALE, SINGLE PART CARD EDGE CONN, CRIMP; CategoryThe connector The connector; File Size70KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

2-281780-6 Overview

26 CONTACT(S), FEMALE, SINGLE PART CARD EDGE CONN, CRIMP

2-281780-6 Parametric

Parameter Name	Attribute value
Objectid	1630529997
Reach Compliance Code	unknown
ECCN code	EAR99
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	281780
Mixed contacts	NO
Installation type	CABLE
Number of rows loaded	2
Options	GENERAL PURPOSE
Termination type	CRIMP
Total number of contacts	26
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

2-281780-6 Related Products

	2-281780-6	3-281780-4	4-281780-0	1-281780-4	6-281780-0	5-281780-0
Description	26 CONTACT(S), FEMALE, SINGLE PART CARD EDGE CONN, CRIMP	34 CONTACT(S), FEMALE, SINGLE PART CARD EDGE CONN, CRIMP	40 CONTACT(S), FEMALE, SINGLE PART CARD EDGE CONN, CRIMP	14 CONTACT(S), FEMALE, SINGLE PART CARD EDGE CONN, CRIMP	60 CONTACT(S), FEMALE, SINGLE PART CARD EDGE CONN, CRIMP	50 CONTACT(S), FEMALE, SINGLE PART CARD EDGE CONN, CRIMP
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Connector type	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL
Contact completed and terminated	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
JESD-609 code	e3	e3	e3	e3	e3	e3
MIL compliance	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	281780	281780	281780	281780	281780	281780
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE
Number of rows loaded	2	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Termination type	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP
Total number of contacts	26	34	40	14	60	50
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Maker	-	TE Connectivity	-	TE Connectivity	TE Connectivity	TE Connectivity
