LC027502%B datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> LC027502%B

LC027502%B: DescriptionArray/Network Resistor, Isolated, Metal Glaze/thick Film, 200V, 2% +/-Tol, 100ppm/Cel, Through Hole Mount, SIP; CategoryPassive components The resistor; File Size189KB，1 Pages; ManufacturerSEI(Stackpole Electronics Inc.); Websitehttps://www.seielect.com/

Download Datasheet Parametric View All

LC027502%B Overview

Array/Network Resistor, Isolated, Metal Glaze/thick Film, 200V, 2% +/-Tol, 100ppm/Cel, Through Hole Mount, SIP

LC027502%B Parametric

Parameter Name	Attribute value
Objectid	1721439357
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Component power consumption	0.125 W
The first element resistor	750 Ω
Manufacturer's serial number	LC
Installation features	THROUGH HOLE MOUNT
Network Type	ISOLATED
Number of components	1
Number of functions	5
Number of terminals	10
Maximum operating temperature	125 °C
Package shape	RECTANGULAR PACKAGE
method of packing	BULK
Rated temperature	70 °C
Resistor type	ARRAY/NETWORK RESISTOR
surface mount	NO
technology	METAL GLAZE/THICK FILM
Temperature Coefficient	100 ppm/°C
Terminal shape	FLAT
Tolerance	2%
Operating Voltage	200 V

Preview

Download Datasheet

View All

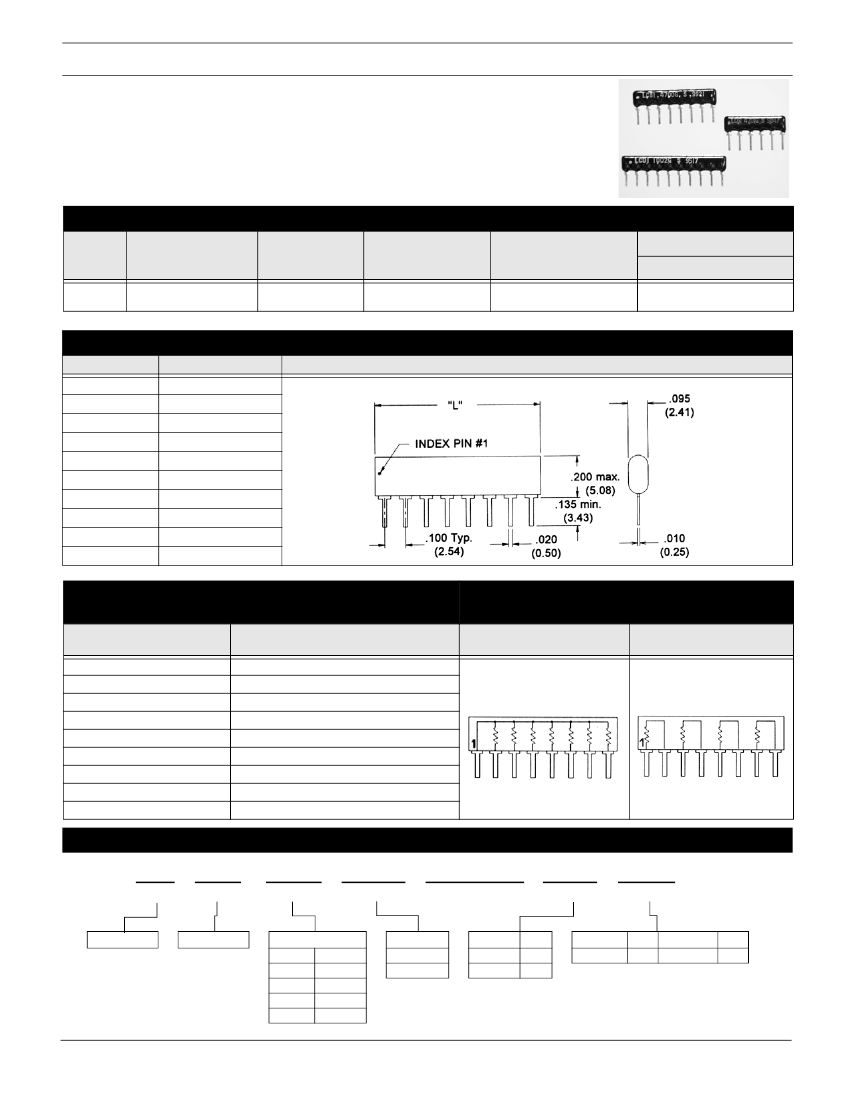

LC Series — SIP Thick Film Resistor Networks

Features

• Standard low profile

• 6, 8, or 10 pins standard

• 4, 5, 7, 9, 11, 12 and 13 pins available

• Steel leads standard

• Conformally coated

• Absolute TCR typically better than 100ppm

• TCR tracking typically better than 50ppm

Electrical Specifications

Type

Power Rating

(Watts) @ 70°C

0.125W

Each resistor

Derated to

0 Load @

125°C

Max Working

Voltage*

200V

Resistance

Temperature Coefficient

±100 ppm/°C

Ohmic Range and Tolerance

1%, 2%

30Ω – 100KΩ

* Lesser of

√PR

or maximum working voltage

Mechanical Specifications inches (mm)

No. of Pins

"L" Max.

0.390 (9.91)

0.490 (12.45)

0.590 (14.99)

0.690 (17.53)

0.790 (20.07)

0.890 (22.61)

0.990 (25.15)

1.090 (27.69)

1.190 (30.23)

1.310 (33.27)

Low Profile – LC Series

Performance Characteristics

Test

Thermal Shock

Low Temperature Operation

Short Time Overload

Moisture Resistance

Load Life @ 70°C - 1,000 Hours

Resistance to Soldering Heat

Terminal Strength

Shock (Specified Pulse)

Vibration (High Frequency)

Test Results per MIL-R-S83401 (%∆R max.)

±0.5%

±1.0%

±0.25%

Standard Configurations – Low-Profile

SIP Package

Single Common (Bussed)

Pull-Up/Pull-Down

Discrete (Isolated)

Terminator

How to Order

Profile

Coating

Pin Count

Circuit Type

2.2K

Nominal Resistance

Tolerance

Packaging

L = Low profile

C = Conformal

Pin Count

4 = 4 pin 9 = 9 pin

5 = 5 pin 0 = 10 pin

6 = 6 pin 1 = 11 pin

7 = 7 pin 2 = 12 pin

8 = 8 pin 3 = 13 pin

Circuit Type

1 = Bussed

2 = Isolated

Tolerance Value

E24

SEI Type

All

Qty

1,000

Description Code

Bulk

Toll Free: (888) SEI-SEIS

(888) 734-7347

www.seielect.com

email: marketing@seielect.com

Rev 05/07
