PA4342.252NLT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> PA4342.252NLT

PA4342.252NLT: DescriptionGeneral Purpose Inductor,; CategoryPassive components inductor; File Size449KB，8 Pages; ManufacturerPulse Electronics; Environmental Compliance

Download Datasheet Parametric View All

PA4342.252NLT Overview

General Purpose Inductor,

PA4342.252NLT Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Pulse Electronics
package instruction	4541
Reach Compliance Code	compli
ECCN code	EAR99
Factory Lead Time	10 weeks
uppercase and lowercase codes	4541
structure	Shielded
DC Resistance	0.0087 Ω
Nominal inductance(L)	2.5 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package height	4 mm
Package length	11.5 mm
Package form	SMT
Package width	10.3 mm
method of packing	TR, 13 Inch
Maximum rated current	11.5 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	20%
Base Number Matches	1

Preview

Download Datasheet

View All

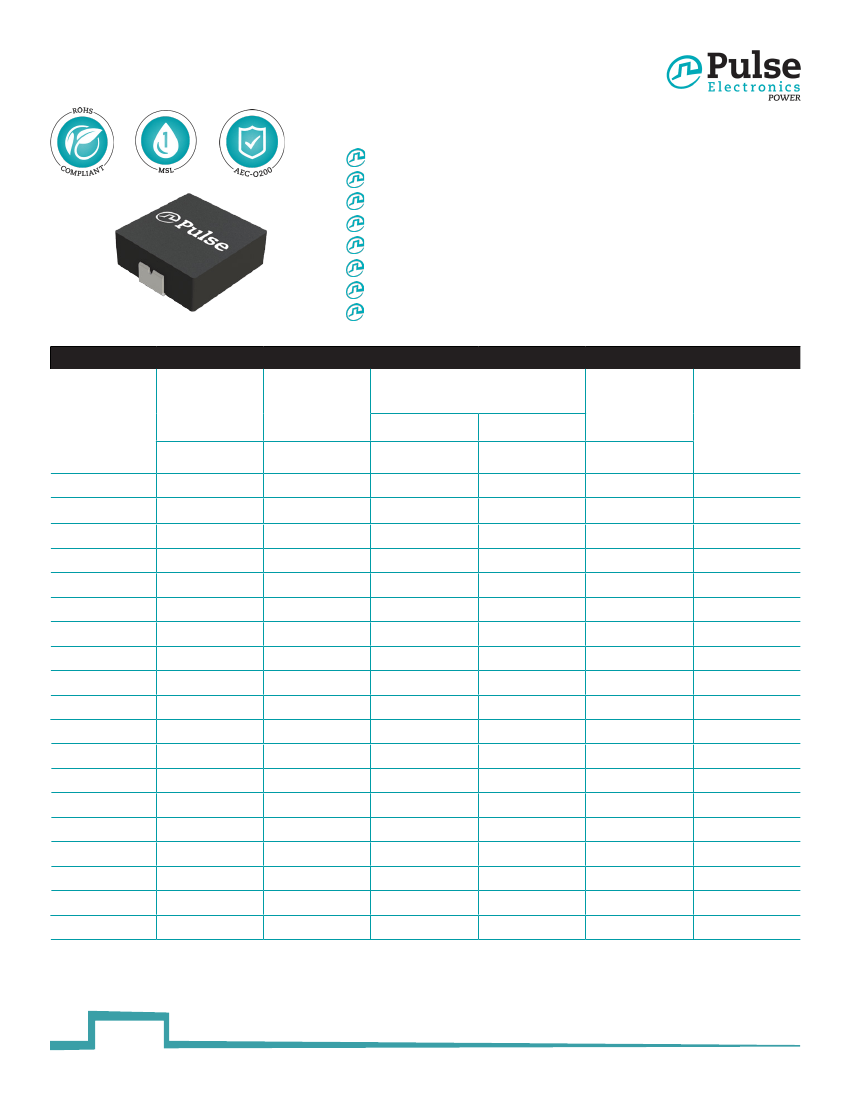

SMT Power Inductor

High Current Molded Power Inductor - PA4342.XXXNLT Series

Height: 4.0mm Max

Footprint: 11.5mm x 10.3mm Max

Current Rating: up to 43.0A

Inductance Range: 0.15uH to 68.0uH

Shielded construction and compact design

High current, low DCR, and high efficiency

Minimized acoustic noise and minimized leakage flux

200Vdc Isolation between terminal and core

Electrical Specifications @ 25°C - Operating Temperature -55°C to +125°C

Part

Number

PA4342.151NLT

PA4342.221NLT

PA4342.271NLT

PA4342.361NLT

PA4342.391NLT

PA4342.451NLT

PA4342.471NLT

PA4342.561NLT

PA4342.681NLT

PA4342.102NLT

PA4342.122NLT

PA4342.152NLT

PA4342.222NLT

PA4342.252NLT

PA4342.332NLT

PA4342.402NLT

PA4342.472NLT

PA4342.562NLT

PA4342.682NLT

Inductance

100KHz, 1V

0.15±30%

0.22±20%

0.27±20%

0.36±20%

0.39±20%

0.45±20%

0.47±20%

0.56±20%

0.68±20%

1.00±20%

1.20±20%

1.50±20%

2.20±20%

2.50±20%

3.30±20%

4.00±20%

4.70±20%

5.60±20%

6.80±20%

Rated

Current

43.0

35.0

33.0

31.0

30.0

29.0

28.0

25.0

22.0

18.0

17.0

16.0

12.0

11.5

11.0

10.2

10.0

9.0

8.5

Resistance

MAX.

mΩ

0.6

1.0

1.2

1.3

1.5

1.8

2.7

3.3

3.8

4.6

7.0

8.7

11.8

15.0

15.5

19.3

23.3

TYP.

mΩ

0.5

0.8

0.82

1.05

1.1

1.3

1.6

2.4

3.0

3.3

4.0

6.5

7.9

10.8

13.0

15.0

17.0

17.5

Saturation

Current

Max.

75.0

60.0

45.0

43.0

40.0

39.0

36.0

33.0

27.0

23.0

20.0

18.0

17.0

14.0

13.5

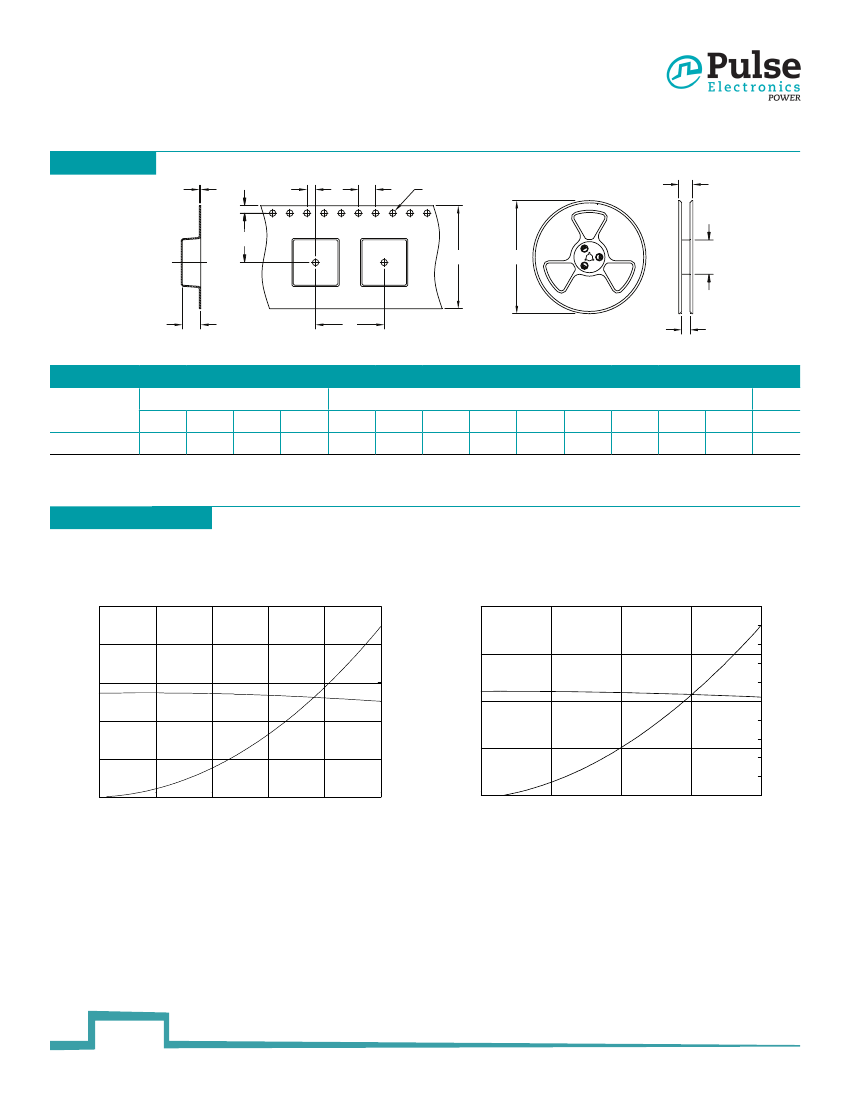

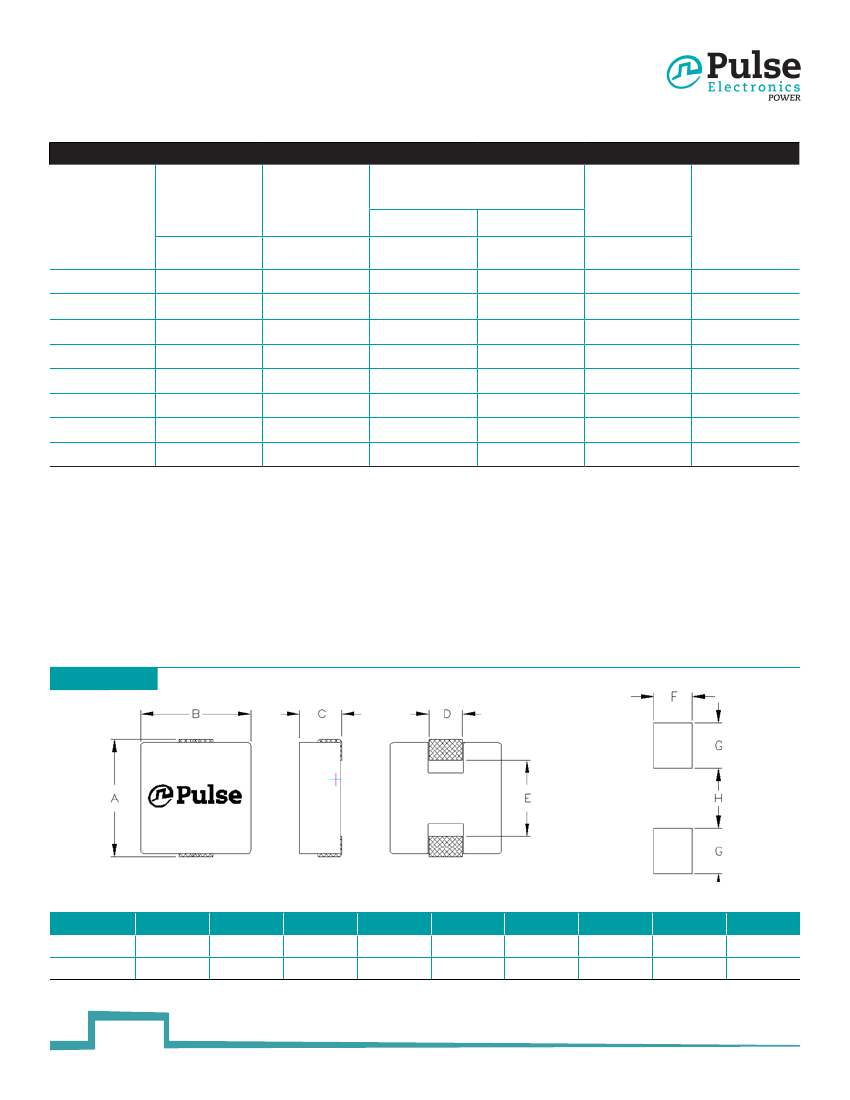

Mechanical

Footprint 1

Footprint 2

power.pulseelectronics.com

P769.H (11/17)
