YTE-144-03-F-Q-340 datasheet, PDF

Datasheet> All Categories > The connector> The connector> YTE-144-03-F-Q-340

YTE-144-03-F-Q-340: DescriptionBoard Stacking Connector, 176 Contact(s), 4 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Black Insulator, Socket, ROHS COMPLIANT; CategoryThe connector The connector; File Size1008KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

YTE-144-03-F-Q-340 Overview

Board Stacking Connector, 176 Contact(s), 4 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Black Insulator, Socket, ROHS COMPLIANT

YTE-144-03-F-Q-340 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
Other features	FLEXYZ
body width	0.316 inch
subject depth	0.34 inch
body length	3.488 inch
Body/casing type	SOCKET
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	GOLD FLASH OVER NICKEL (50)
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrie
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Durability	100 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.5004 N
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	YTE
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	4
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
reliability	COMMERCIAL
Terminal length	0.148 inch
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	176
Evacuation force-minimum value	.278 N
Base Number Matches	1

Preview

Download Datasheet

View All

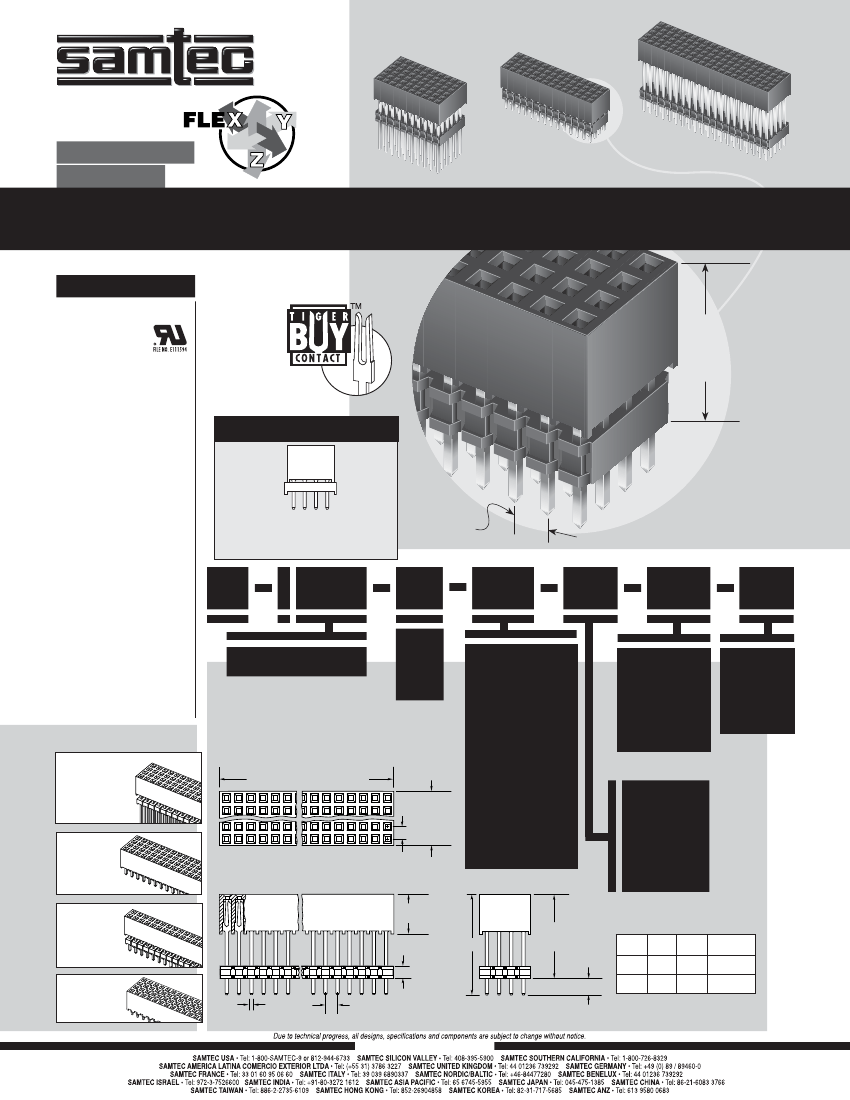

F-211-1 SUPPLEMENT

YTE–110–02–G–6–500

YTE–120–03–G–5–700

(2,00mm) .0787"

YTE–114–03–M–Q–368

YTE SERIES

HIGH DENSITY SOCKET

SPECIFICATIONS

For complete speciﬁcations

see www.samtec.com?YTE

Insulator Material:

Black Liquid Crystal

Polymer

Contact Material:

Phosphor Bronze

Current Rating:

3A @ 80°C ambient

Operating Temp Range:

-55°C to +105°C

Plating:

Sn or Au over

50µ" (1,27µm) Ni

Contact Resistance:

10 mΩ max

Insertion Depth:

(2,62mm) .103" to

(5,03mm) .198" with

(0,38mm) .015" wipe

Max Cycles:

100 with 10µ" (0,25µm) Au

Insertion Force:

(Single contact only)

1.8oz (0,50N) avg

Withdrawal Force:

(Single contact only)

1.0oz (0,28N) avg

RoHS Compliant:

Yes

Lead–Free Solderable:

Wave only

Mates with:

YTT, YTW, YTE

Body Height

from (8,64mm)

.340" to

(20,32mm)

.800"

ALSO AVAILABLE

Paste In Hole (PIH) processing.

(Not recommended for self-nesting.)

Contact Samtec ASP Group.

(2,00mm)

.0787"

pitch

YTE

NO. PINS

PER ROW

LEAD

STYLE

Specify

LEAD

STYLE

from

chart

PLATING

OPTION

ROW

OPTION

BODY

HEIGHT

OTHER

OPTION

02 thru 50

Note:

This Series is non-standard,

non-returnable.

–G

= 20µ" (0,51µm) Gold

(Recommended for

self-nesting)

–“XXX”

= Body Height

(in inches)

(8,64mm) .340"

min. for –Q

(9,53mm) .375"

min. for –5 & –6

–“XXX”

=Polarized

Position

(Indicate

position

number)

–M

= 20µ" (0,51µm)

Gold on contact,

Tin on tail

Also Available

PC/104-Plus

™

Sockets

See ESQT-368

Series.

300

No. of positions x

(2,00) .0787 + (0,30) .012

–L

No. of

rows x

(2,00)

.0787

= 10µ" (0,25µm)

Gold on contact,

Tin on tail

–Q

= Quad Row

Low

Proﬁle

See YTS

& YTQ Series.

–F

= Gold ﬂash on contact,

Tin on tail

–5

= Five Row

295

(2,00)

.0787

–6

= Six Row

1, 2, & 3

Row

See ESQT

Series.

(6,35)

.250

BODY TAIL

HEIGHT (1,27)

.050

MIN

LEAD

STYLE

MAX MAX BODY

HEIGHT

TAIL

(21,59) (13,72) (20,32)

– 02

.850 .540

.800

(11,63) (3,76)

(10,36)

–03

.458 .148

.408

Press Fit

See PTHF

Series.

(0,50)

.020 SQ

(2,00)

.0787

(2,00)

.0787

WWW.SAMTEC.COM
