DG444DY-T datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> DG444DY-T

DG444DY-T: DescriptionSPST, 4 Func, 1 Channel, CMOS, PDSO16,; CategoryAnalog mixed-signal IC The signal circuit; File Size277KB，10 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric Compare View All

DG444DY-T Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DG444DY-T	-	-	View	Buy Now

DG444DY-T Overview

SPST, 4 Func, 1 Channel, CMOS, PDSO16,

DG444DY-T Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	SOP, SOP16,.25
Reach Compliance Code	unknow
Analog Integrated Circuits - Other Types	SPST
JESD-30 code	R-PDSO-G16
JESD-609 code	e0
Nominal Negative Supply Voltage (Vsup)	-15 V
normal position	NC
Number of channels	1
Number of functions	4
Number of terminals	16
Nominal off-state isolation	60 dB
Maximum on-state resistance (Ron)	85 Ω
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
output	SEPARATE OUTPUT
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP16,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
power supply	5,12/+-15 V
Certification status	Not Qualified
Nominal supply voltage (Vsup)	15 V
surface mount	YES
Maximum disconnect time	140 ns
Maximum connection time	250 ns
switch	BREAK-BEFORE-MAKE
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Base Number Matches	1

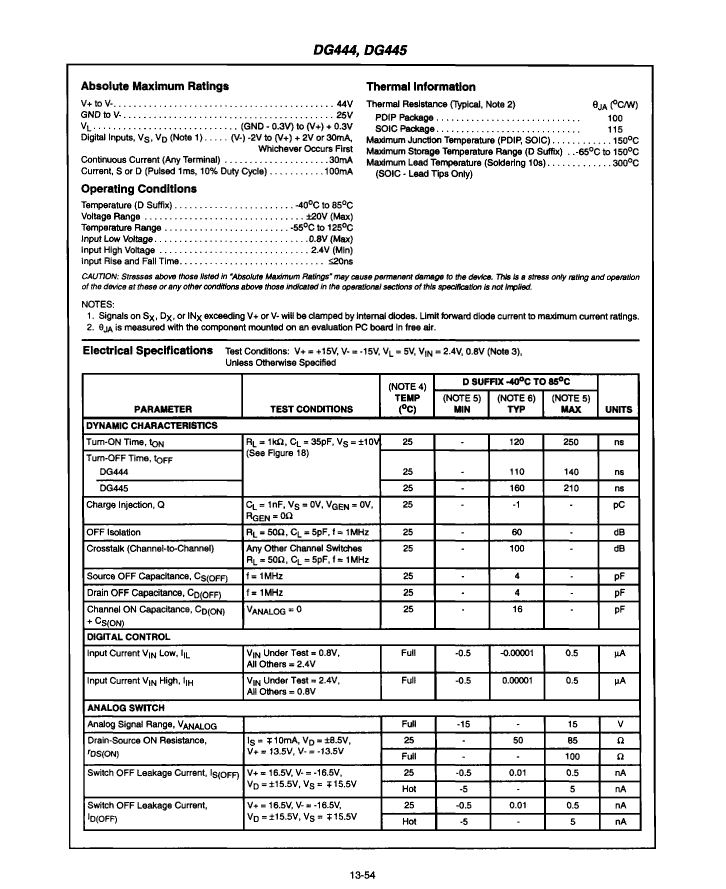

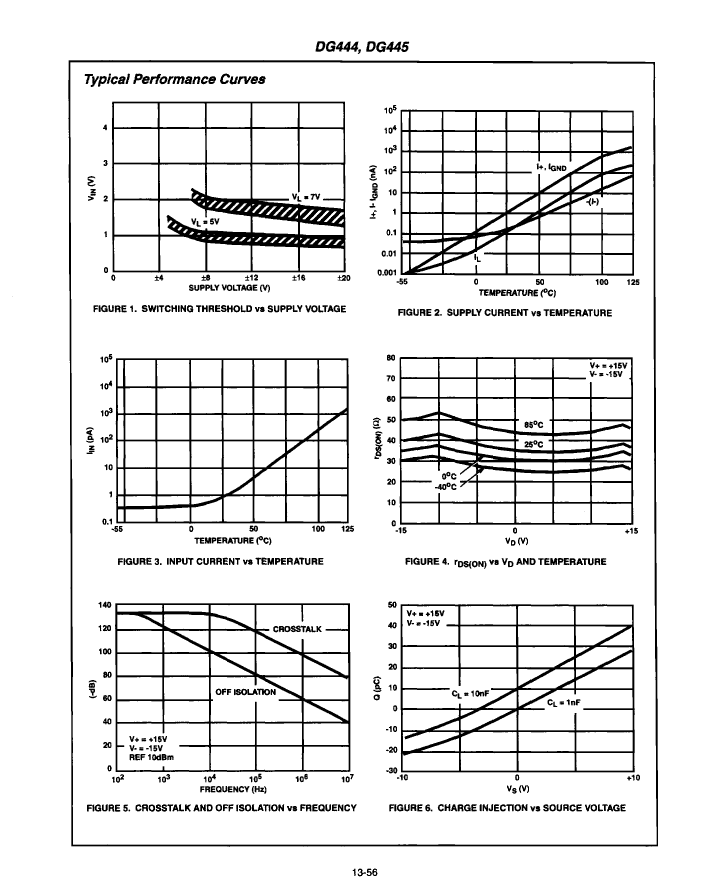

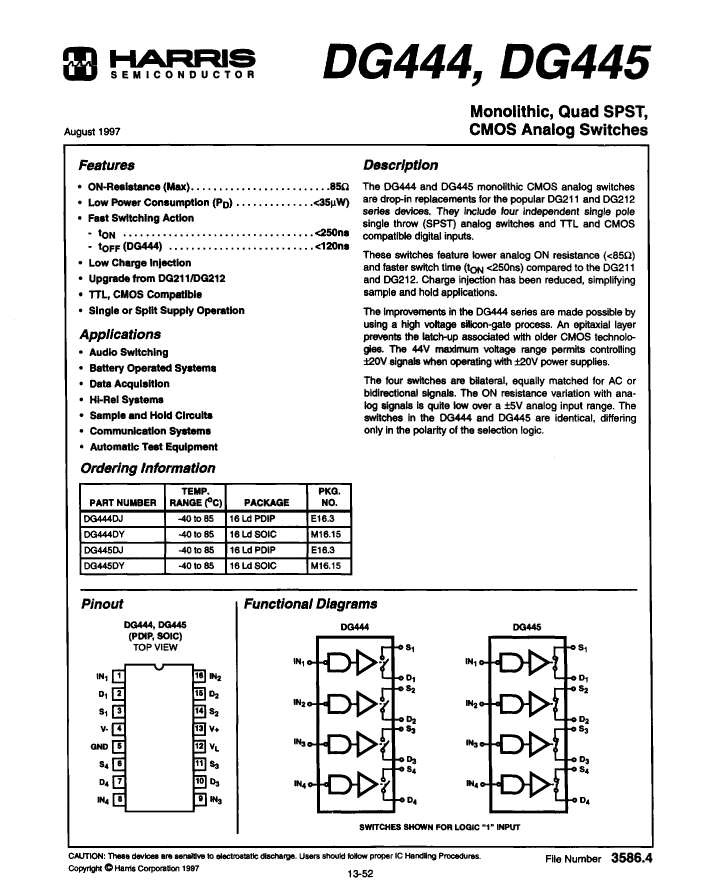

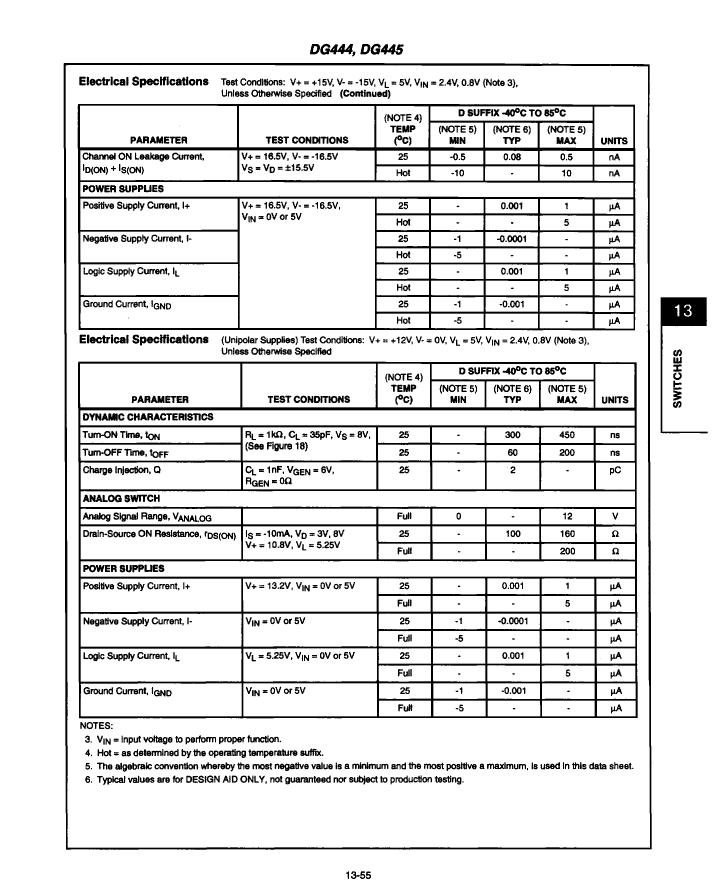

Preview

Download Datasheet

View All

DG444DY-T Related Products

	DG444DY-T	DG445DJ	DG445DY	DG444DJ	DG445DY-T	DG444DY
Description	SPST, 4 Func, 1 Channel, CMOS, PDSO16,	SPST, 4 Func, 1 Channel, CMOS, PDIP16,	SPST, 4 Func, 1 Channel, CMOS, PDSO16	SPST, 4 Func, 1 Channel, CMOS, PDIP16,	SPST, 4 Func, 1 Channel, CMOS, PDSO16	SPST, 4 Func, 1 Channel, CMOS, PDSO16,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknow	unknown	unknown	unknown	unknown	unknown
Analog Integrated Circuits - Other Types	SPST	SPST	SPST	SPST	SPST	SPST
JESD-30 code	R-PDSO-G16	R-PDIP-T16	R-PDSO-G16	R-PDIP-T16	R-PDSO-G16	R-PDSO-G16
JESD-609 code	e0	e0	e0	e0	e0	e0
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V
normal position	NC	NO	NO	NC	NO	NC
Number of channels	1	1	1	1	1	1
Number of functions	4	4	4	4	4	4
Number of terminals	16	16	16	16	16	16
Nominal off-state isolation	60 dB	60 dB	60 dB	60 dB	60 dB	60 dB
Maximum on-state resistance (Ron)	85 Ω	85 Ω	85 Ω	85 Ω	85 Ω	85 Ω
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
output	SEPARATE OUTPUT	SEPARATE OUTPUT	SEPARATE OUTPUT	SEPARATE OUTPUT	SEPARATE OUTPUT	SEPARATE OUTPUT
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	DIP	SOP	DIP	SOP	SOP
Encapsulate equivalent code	SOP16,.25	DIP16,.3	SOP16,.25	DIP16,.3	SOP16,.25	SOP16,.25
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	SMALL OUTLINE	IN-LINE	SMALL OUTLINE	SMALL OUTLINE
power supply	5,12/+-15 V	5,12/+-15 V	5,12/+-15 V	5,12/+-15 V	5,12/+-15 V	5,12/+-15 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	15 V	15 V	15 V	15 V	15 V	15 V
surface mount	YES	NO	YES	NO	YES	YES
Maximum disconnect time	140 ns	210 ns	210 ns	140 ns	210 ns	140 ns
Maximum connection time	250 ns	250 ns	250 ns	250 ns	250 ns	250 ns
switch	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	THROUGH-HOLE	GULL WING	THROUGH-HOLE	GULL WING	GULL WING
Terminal pitch	1.27 mm	2.54 mm	1.27 mm	2.54 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Base Number Matches	1	1	1	1	1	1
package instruction	SOP, SOP16,.25	DIP, DIP16,.3	SOP, SOP16,.25	-	SOP, SOP16,.25	SOP, SOP16,.25
Maker	-	Harris	Harris	Harris	Harris	-
