Fiber
Optics
BroadBand 1260-1650nm
NanoSpeed
TM
Miniature Variable
Optical Attenuator/ Modulator
(Bidirectional)
(Protected by U.S. patent 7,403,677B1 and pending patents)
Product Description
The NS Miniature series variable fiber optic attenuator provides electrical
control of optical power. This is achieved using a patent pending non-
mechanical configuration and activated via a voltage electrical control
signal. The solid-state optical crystal design eliminates mechanical
movement and organic materials. The NS series variable optical
attenuators are designed to meet the most demanding operation
requirements of ultra-high reliability and fast response time with minimum
mechanical footprint. Agiltron also offers customized electronic designs to
meet special control requirements and applications. The switch is truly
bidirectional and for broadband applications
The NS Series VOA is available in either normally-transparent or normally-
opaque configurations. The device can be driven by a cost effective circuit
with 12 V input voltage and 0-5 V control signal.
Features
•
•
•
•
•
•
•
•
•
No Moving Parts
High Reliability
Solid-State High Speed
Broadband
Bidirectional
Low Insertion Loss
High power handling
Low Power Consumption
Simple Driver
Performance Specifications
NS Variable Optical Attenuator
Min
Typical
Max
Unit
nm
dB
dB
dB
dB
ns
KHz
MHz
dB
mW
o
C
o
C
mm
Applications
•
•
•
•
Power Control
Power Regulation
Power Balance
Instrumentation
Wavelength
1260
1625
Insertion Loss
1
0.7
1.0
Polarization Dependent Loss
0.1
0.35
Return Loss
45
50
Attenuation Range
22
Response Time (Rise, Fall)
300
Repetition Rate
DC
5
300**
Modulation Rate
DC
5***
Resolution
Continous
Operating Optical Power
2
500
Operating Temperature
-5 ~ 70
Storage Temperature
-40 ~ 85
Package Dimension
56 X8.2X5.95
* Driver kit is recommended
** Special circuit, 100% depth
***Special circuit, Maximum modulation depth is 5%
1. Excluding connectors.
2. We also offer optical power up to 5W CW
Revision: 060-12
05-10-12
1
Germany & Other Countries
Laser Components GmbH
Tel: +49 8142 2864 – 0
Fax: +49 8142 2864 – 11
info@lasercomponents.com
www.lasercomponents.com
United Kingdom
Laser Components (UK) Ltd.
Tel: +44 1245 491 499
Fax: +44 1245 491 801
info@lasercomponents.co.uk
www.lasercomponents.co.uk
Fiber
Optics
NanoSpeed
TM
Miniature Variable
Optical Attenuator/ Modulator

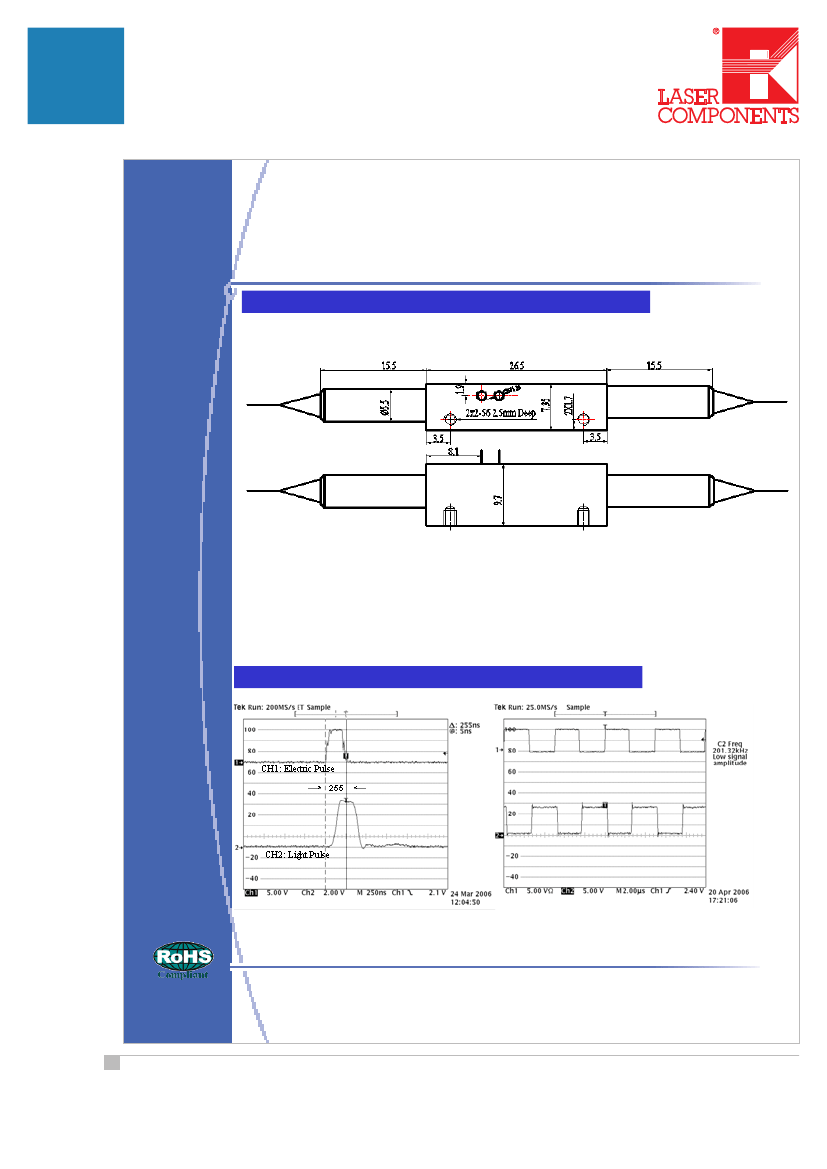

Mechanical Footprint Dimensions (Unit:mm)
Speed and Repetition Measurement
Revision: 060-12
05-10-12
2
Germany & Other Countries
Laser Components GmbH
Tel: +49 8142 2864 – 0
Fax: +49 8142 2864 – 11
info@lasercomponents.com
www.lasercomponents.com
United Kingdom
Laser Components (UK) Ltd.
Tel: +44 1245 491 499
Fax: +44 1245 491 801
info@lasercomponents.co.uk
www.lasercomponents.co.uk
Fiber
Optics
BroadBand 1260-1650nm
NanoSpeed
TM
Miniature Variable
Optical Attenuator/ Modulator
Specify wavelength dependent loss @10dB attenuation

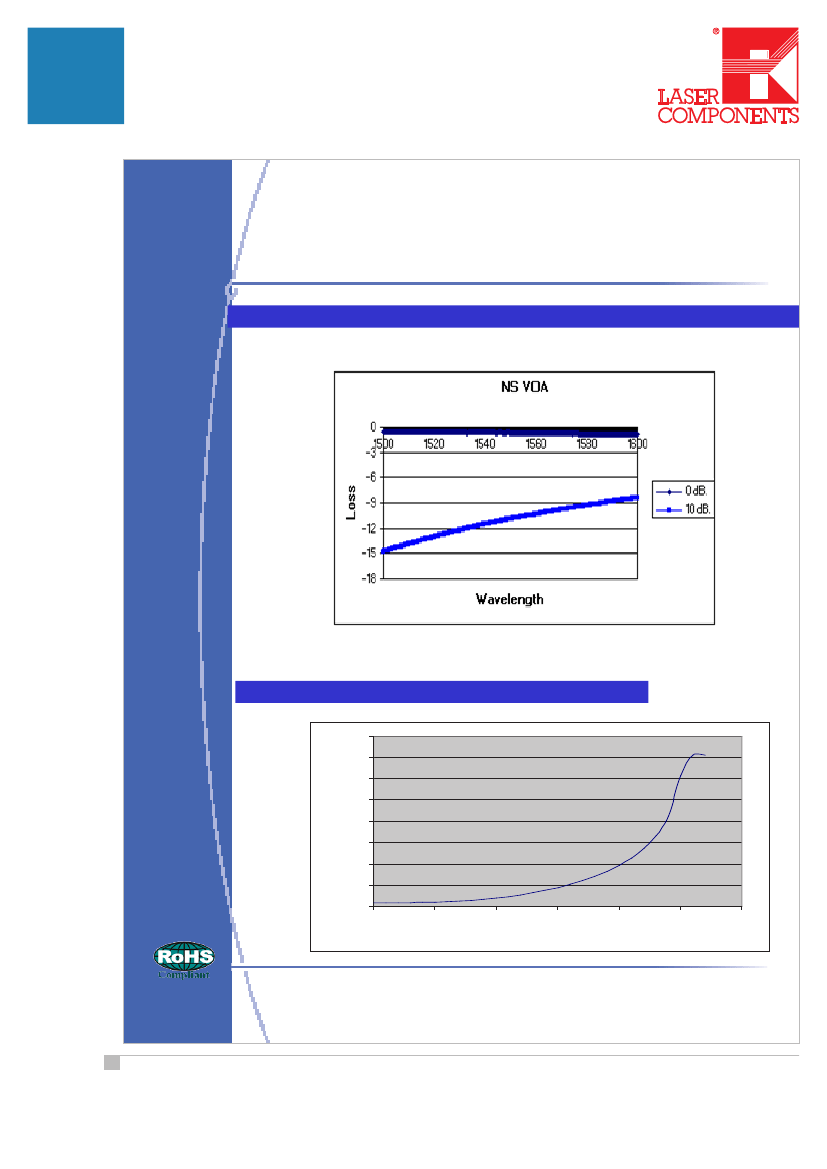

Typical curve of Attenuation versus Voltage
40
35
Attenuation(-dB)
30
25
20
15
10
5
0
2.5
3
3.5
4
Voltage (V)
4.5
5
5.5
Revision: 060-12
05-10-12
3
Germany & Other Countries
Laser Components GmbH
Tel: +49 8142 2864 – 0
Fax: +49 8142 2864 – 11
info@lasercomponents.com
www.lasercomponents.com
United Kingdom
Laser Components (UK) Ltd.
Tel: +44 1245 491 499
Fax: +44 1245 491 801
info@lasercomponents.co.uk
www.lasercomponents.co.uk
Fiber
Optics
BroadBand 1260-1650nm
NanoSpeed
TM
Miniature Variable
Optical Attenuator/ Modulator
Ordering Information
NVOA-
4
Type
Regular
slope=2
Wavelength
1260-
1620nm=1
Special=0
State
Transparent
=1
Opaque = 2
Optical
power
500mW
CW=8
1W
CW=1
2W
CW=2
5W
CW=5
1
Fiber Type
SMF-28 =1
Special=0
Bare fiber =1
900um loose
tube=3
Special=0
Fiber
Length
0.25m= 1
0.5m = 2
1.0 m= 3
Special =0
Connector
None = 1
FC/PC = 2
FC/APC = 3
SC/PC = 4
SC/APC = 5
ST/PC = 6
LC = 7
Special = 0
05/12 / V1 / HW / agiltron/sm_voa/ns_broadband_voa.indd
Revision: 060-12
05-10-12
4
Germany & Other Countries
Laser Components GmbH
Tel: +49 8142 2864 – 0
Fax: +49 8142 2864 – 11
info@lasercomponents.com
www.lasercomponents.com
United Kingdom
Laser Components (UK) Ltd.
Tel: +44 1245 491 499
Fax: +44 1245 491 801
info@lasercomponents.co.uk
www.lasercomponents.co.uk
