1063-2-13-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 1063-2-13-1

1063-2-13-1: DescriptionBoard Connector, 13 Contact(s), 1 Row(s), Male, Right Angle, 0.039 inch Pitch, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size100KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

1063-2-13-1 Overview

Board Connector, 13 Contact(s), 1 Row(s), Male, Right Angle, 0.039 inch Pitch, Solder Terminal, Receptacle

1063-2-13-1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	307195024
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.05 inch
subject depth	0.098 inch
body length	0.507 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	300VAC V
Durability	50 Cycles
Insulation resistance	1000000000 Ω
Manufacturer's serial number	1063
Plug contact pitch	0.039 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.098 inch
Terminal pitch	0.9906 mm
Termination type	SOLDER
Total number of contacts	13

Preview

Download Datasheet

View All

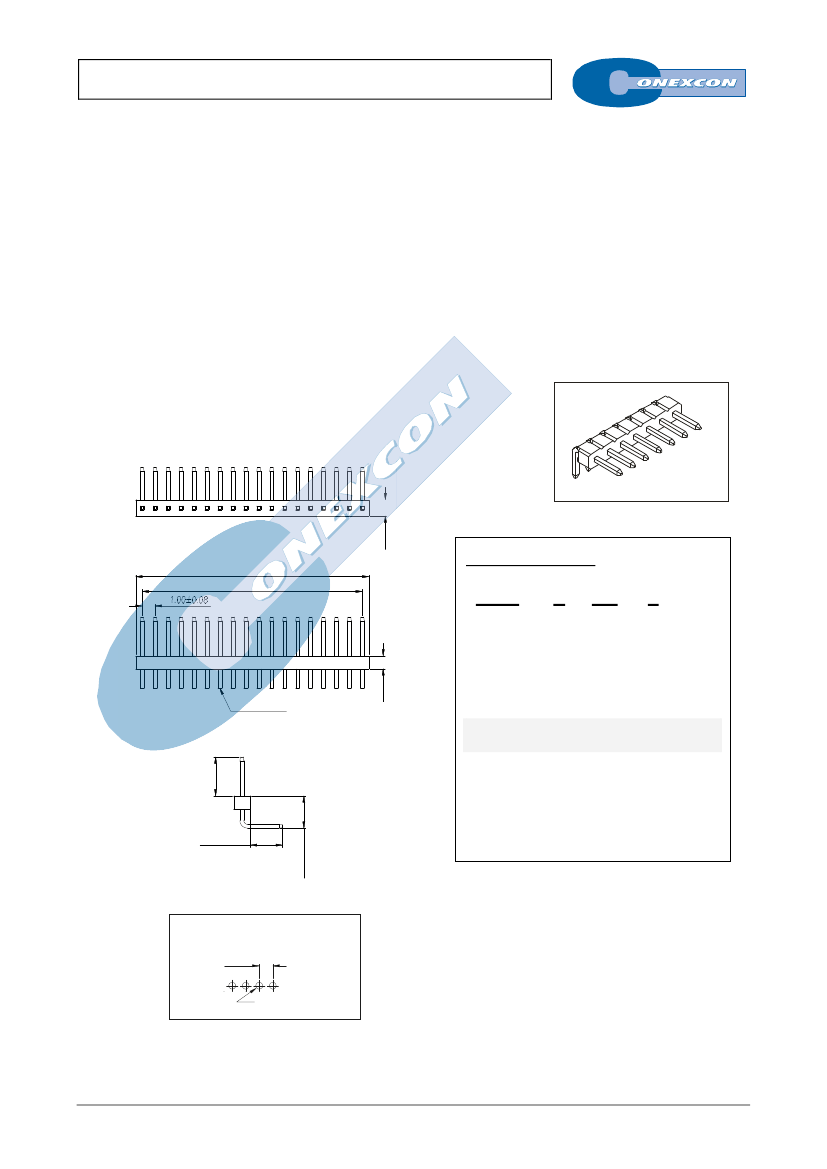

SINGLE ROW RIHT ANGLE PIN HEADER

1063 SERIES.

1.00 mm (0.039”) pitch.

General Features

Electrical Features



Available in 2 through 40 circuits

Mates with sockets 1.00 mm. pitch 1065, 1066 and

1067 series

0,30 mm square pin with different plating contact area

Available with different pin length

Contact sales office



Voltage rating: < 100V

Current rating: < 1 A

Contact resistance: < 20 mΩ

Dielectric withstanding Voltage: 300 V AC/minute

Insulation resistance: >1000 MΩ

Capacitance: < 2 pF at 1 KHz

Materials

Insulator: Polyester LCP UL 94 V-0

Contact: Phosphor bronze

Operating temperature: -40ºC to +105ºC

RoHS compliant

Mechanical Features

Pin retention force to insulator: > 0,10 Kgf

Durability: 50 cycles

Dimension Information

1.27

1.00

±0.08

Ordering Information:

1063 -

T-

XX-

1. Connector Series

1.00

2. (T) Contact Plating

0.30



T =

Tin plated

T =

Gold flash over nickel

Recommended Finish

T =

15µ” gold over nickel

T =

30µ” gold over nickel

3.00

±0.25

3. (XX) Number of circuits

Available in 2 through 40circuits

2.50

±0.25

2.50

±0.25

Dimensions:

(In mm.)

= 1.00 x (XX*-1)

= 1.00 x (XX*)

* XX

(Number of circuits)

RECOMMENDED HOLE PATTERN

1.00

ø0.50

00000

A-XX

FULL LINE CATALOGUE

Recommended Resources

The structure and working principle of brushless motor windingse

NE555 timing circuit using ±15V power supply

Use LC901 to make high-end bedside lamp controller

JX07A-4 single-phase capacitor running motor wiring method

1kHz to 1MHz sinusoidal oscillator circuit

Frequency converter speed regulating circuit with frequency meter operating box
