1064-2-07-1-2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 1064-2-07-1-2

1064-2-07-1-2: DescriptionBoard Connector, 7 Contact(s), 1 Row(s), Male, Right Angle, 0.039 inch Pitch, Surface Mount Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size130KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

1064-2-07-1-2 Overview

Board Connector, 7 Contact(s), 1 Row(s), Male, Right Angle, 0.039 inch Pitch, Surface Mount Terminal, Locking, Receptacle

1064-2-07-1-2 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	307216743
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.059 inch
subject depth	0.142 inch
body length	0.276 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	300VAC V
Durability	50 Cycles
Insulation resistance	1000000000 Ω
Manufacturer's serial number	1064
Plug contact pitch	0.039 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.9906 mm
Termination type	SURFACE MOUNT
Total number of contacts	7

Preview

Download Datasheet

View All

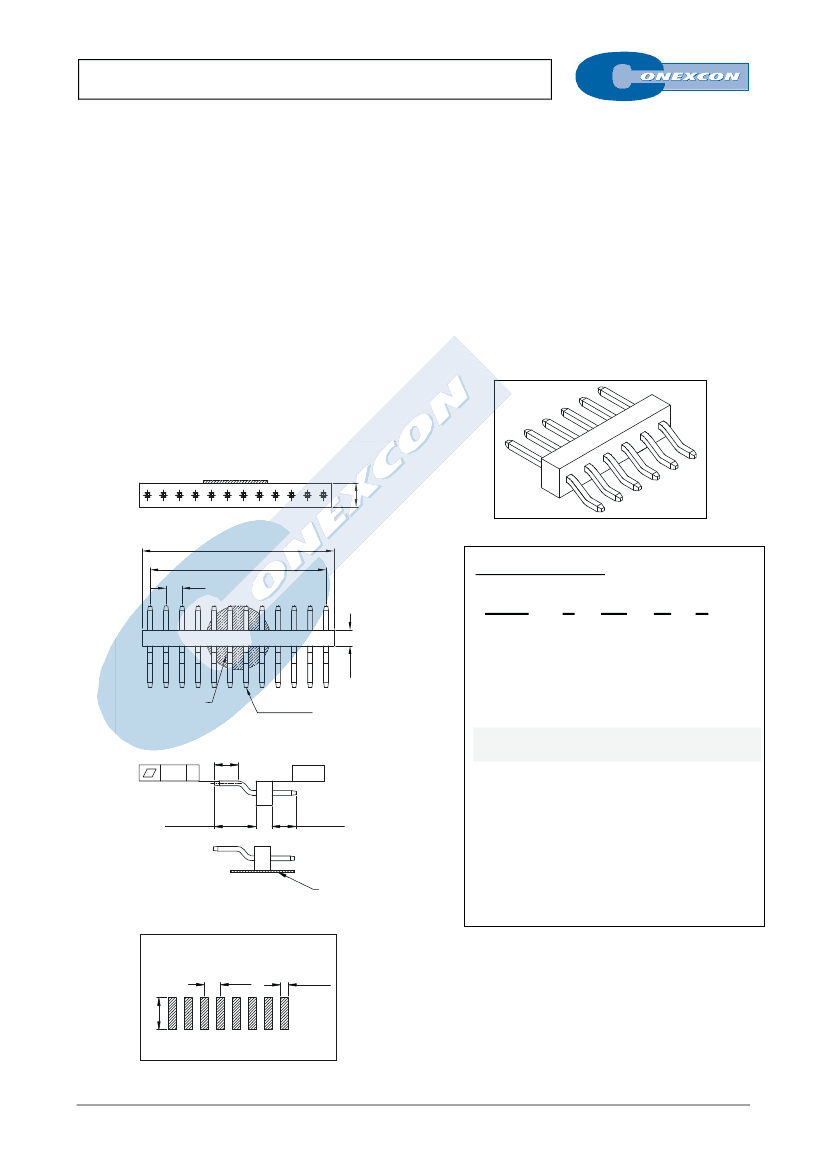

SINGLE ROW RIGHT ANGLE SMT PIN HEADER

1064 SERIES.

1.00 mm (0.039”) pitch.

General Features

Electrical Features



Available in 2 through 40 circuits

Mates with sockets 1.00 mm. pitch 1065, 1066 and

1067 series

0,30 mm square pin with different plating contact area

Available with different pin length

Contact sales office



Voltage rating: < 100V

Current rating: < 1 A

Contact resistance: < 20 mΩ

Dielectric withstanding Voltage: 300 V AC/minute

Insulation resistance: >1000 MΩ

Capacitance: < 2 pF at 1 KHz

Materials

Insulator: Polyester LCP UL 94 V-0

Contact: Phosphor bronze

Operating temperature: -40ºC to +105ºC

RoHS compliant

Mechanical Features

Pin retention force to insulator: > 0,10 Kgf

Durability: 50 cycles

Dimension Information

±0.30

±0.25

1.00±0.08

1.50

Ordering Information:

1064 -

1.00

T-

XX-

1. Connector Series

2. (T) Contact Plating

ø4.00*0.15

±0.15

Pin 0.30



1.50

0.10 A

-A-

T =

Tin plated

T =

Gold flash over nickel

Recommended Finish

T =

15µ” gold over nickel

T =

30µ” gold over nickel



2.60±0.25

1.50±0.25

3. (XX) Circuit Size

Available in 2 through 40 circuits

4. (E) Connector Packaging

Film

E =

Film + tube

E =

Film + reel

RECOMMENDED HOLE PATTERN

(Tolerance: ±0.05)

1.00

0.50

2.00

Dimensions:

(In mm.)

= 1.00 x (XX*-1)

= 1.00 x (XX*)

* XX

(Number of circuits)

A-XX
