1066-5-13-2-1-2 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 1066-5-13-2-1-2

1066-5-13-2-1-2: DescriptionBoard Connector, 13 Contact(s), 1 Row(s), Female, Straight, 0.039 inch Pitch, Surface Mount Terminal, Locking, Plug; CategoryThe connector The connector; File Size116KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

1066-5-13-2-1-2 Overview

Board Connector, 13 Contact(s), 1 Row(s), Female, Straight, 0.039 inch Pitch, Surface Mount Terminal, Locking, Plug

1066-5-13-2-1-2 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	307192125
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.059 inch
subject depth	0.088 inch
body length	0.531 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	300VAC V
Durability	50 Cycles
Insulation resistance	1000000000 Ω
Manufacturer's serial number	1066
Plug contact pitch	0.039 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	STAGGERED
Plating thickness	15u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.0066 mm
Termination type	SURFACE MOUNT
Total number of contacts	13

Preview

Download Datasheet

View All

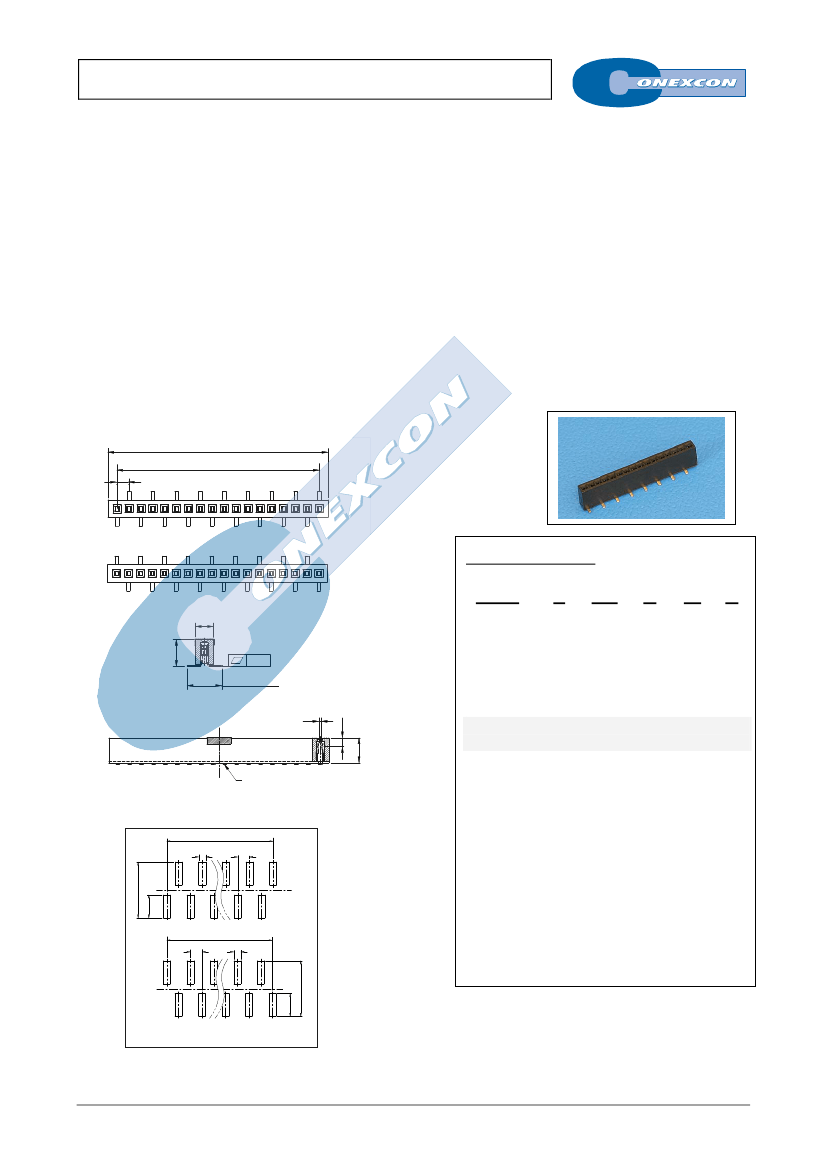

SINGLE ROW SMT VERTICAL SOCKET

1066 SERIES.

1.00 mm (0.039”) pitch.

General Features

Electrical Features







Available in 2 through 40 circuits

Mates with pin headers 1.00 mm pitch 1060, 1061 and

1063 series

Accept 0.30 square pin

Low profile 2.25 mm hight

Dual beam contact with different plating



Voltage rating: < 100V

Current rating: < 1 A

Contact resistance: < 20 mΩ

Dielectric withstanding voltage: 300 V AC/minute

Insulation resistance: >1000 MΩ

Capacitance: < 2 pF at 1 KHz

Materials

Insulator: Polyester LCP UL 94 V-0

Contact: Phosphor bronze

Operating temperature: -40ºC to +105ºC

RoHS compliant

Mechanical Features

Insertion force receptacle/plug: < 0,10 Kgf/pin

Unmating force receptacle/plug: > 0,01 Kgf/pin

Contact retention force to housing: > 0,10 Kgf/pin

Durability: 50 cycles

Dimension Information

1.00

±0.10

Type 1

Ordering Information:

Type 2

1.50

2.25±0.25

1066 -

T-

XX-

P-

0.10

2.90±0.30

0.75

1. Connector Series

2. (T) Contact Plating

0.22

2.10



T =

Tin plated

T =

Gold flash over nickel

Recommended Finish

T =

15µ” gold over nickel

T =

30µ” gold over nickel

Pin 0.30x0.10

3. (XX) Circuit Size

Available in 2 through 40 circuits

Type 1

0.50

1.00

4. Connector Type



1.95

Type 2

1.00

0.50

P =

Type 1

P =

Type 2

3.90

6. Connector Packaging



3.90

E =

Film + tube

E =

Film + reel

1.95

RECOMMENDED PCB LAYOUT

Dimensions:

(In mm.)

= 1.00 x (XX*-1)

= 1.00 x (XX)+0.50

* XX

(Number of circuits)

000000

A-XX
