1306-6-48-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 1306-6-48-1

1306-6-48-1: DescriptionBoard Connector, 48 Contact(s), 2 Row(s), Male, Right Angle, 0.05 inch Pitch, Solder Terminal, Locking; CategoryThe connector The connector; File Size122KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

1306-6-48-1 Overview

Board Connector, 48 Contact(s), 2 Row(s), Male, Right Angle, 0.05 inch Pitch, Solder Terminal, Locking

1306-6-48-1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	308990565
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.222 inch
subject depth	0.302 inch
body length	1.326 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	300VAC V
Durability	25 Cycles
Insulation resistance	1000000000 Ω
Manufacturer's serial number	1306
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	1.27 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.083 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	48

Preview

Download Datasheet

View All

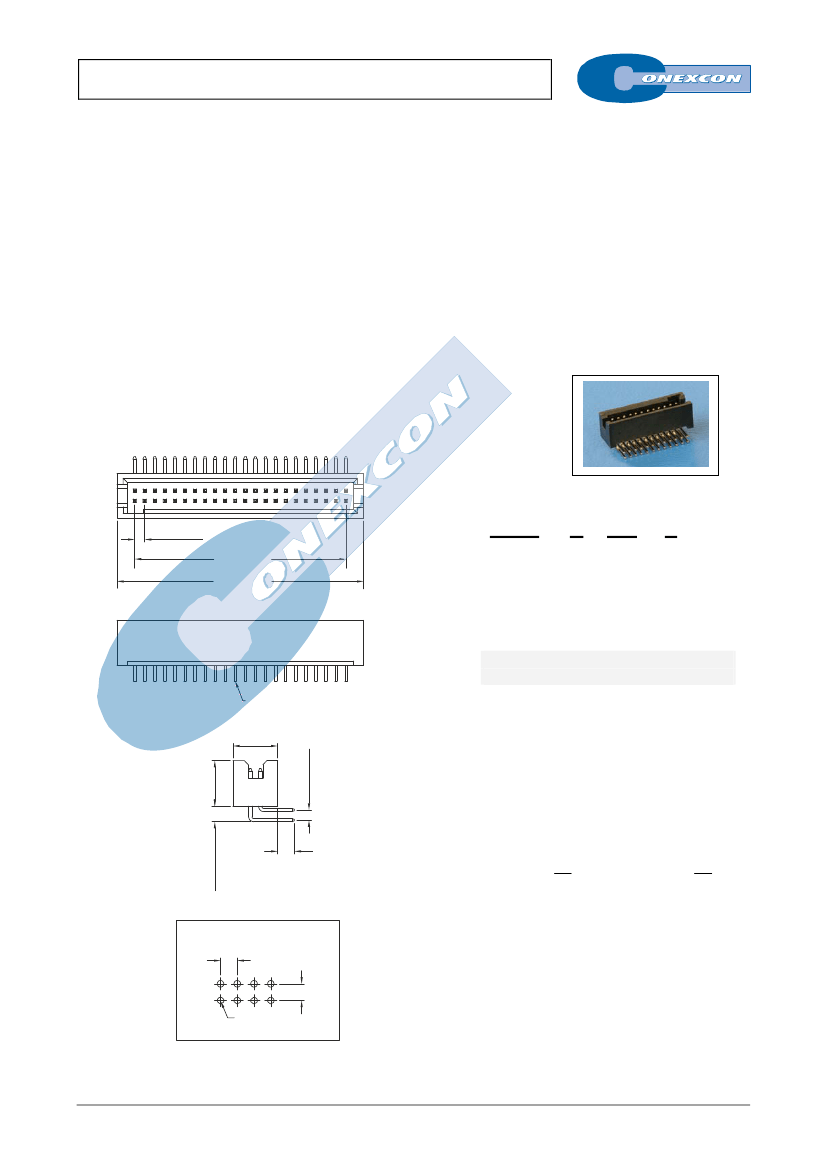

DUAL ROW TOP ENTRY SOCKET HEADER

1306 SERIES.

1.27 x 1.27 mm (0.050” x 0.050”) pitch.

General Features

Electrical Features



Available in 6 through 100 circuits

Mates with pin headers 1.27 mm pitch 1301 & 1302 series

0.40 square pin with different plating in contact area

Fully shoured with polarized slot



Voltage rating: < 100V

Current rating: < 1 A

Contact resistance: < 20 mΩ

Dielectric Withstanding Voltage: 300 V AC/minute

Insulation Resistance: >1000 MΩ

Capacitance: < 2 pF at 1 KHz

Materials

Mechanical Features

Pin retention force to insulator: > 0,15 Kgf/pin

Durability: 25 cycles



Insulator: Polyester LCP UL 94 V-0

Contact: Brass

Operating temperature: -25ºC to +85ºC

RoHS Compliant

Dimension Information

1.27±0.10

A±0.20

B±0.25

1306 - T- XX- 1

1. Series

2. Plating Options



0.40

T =

Tin plated

T =

Gold flash over nickel.

Recommended Finish

T =

15µ” gold over nickel

T =

30µ” gold over nickel



5.65

1.27±0.15

3. Number of Circuits

Available in 6 through 100 circuits

(For 100 circuits replace XX for 00)

5.70

DIMENSIONS:

1.97±0.20

2.10±0.20





1.27















3.20



1.27









= Number of circuits

RECOMMENDED HOLE PATTERN

1.27

ø0.65

RECOMMENDED HOLE PATTERN

A-XX

FULL LINE CATALOGUE
