1980-2-12-1: DescriptionBoard Connector, 12 Contact(s), 1 Row(s), Female, 0.079 inch Pitch, Crimp Terminal, Locking, Plug; CategoryThe connector The connector; File Size144KB，1 Pages; ManufacturerConexcon Group

Download Datasheet Parametric View All

1980-2-12-1 Overview

Board Connector, 12 Contact(s), 1 Row(s), Female, 0.079 inch Pitch, Crimp Terminal, Locking, Plug

1980-2-12-1 Parametric

Parameter Name	Attribute value
Objectid	307180806
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.181 inch
subject depth	0.201 inch
body length	1.024 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact point gender	FEMALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Dielectric withstand voltage	800VAC V
Durability	25 Cycles
maximum insertion force	4.8928 N
Insulation resistance	1000000000 Ω
Manufacturer's serial number	1980
Plug contact pitch	0.079 inch
Installation option 1	LOCKING
Installation type	CABLE
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Termination type	CRIMP
Total number of contacts	12
Evacuation force-minimum value	.973 N

Preview

Download Datasheet

View All

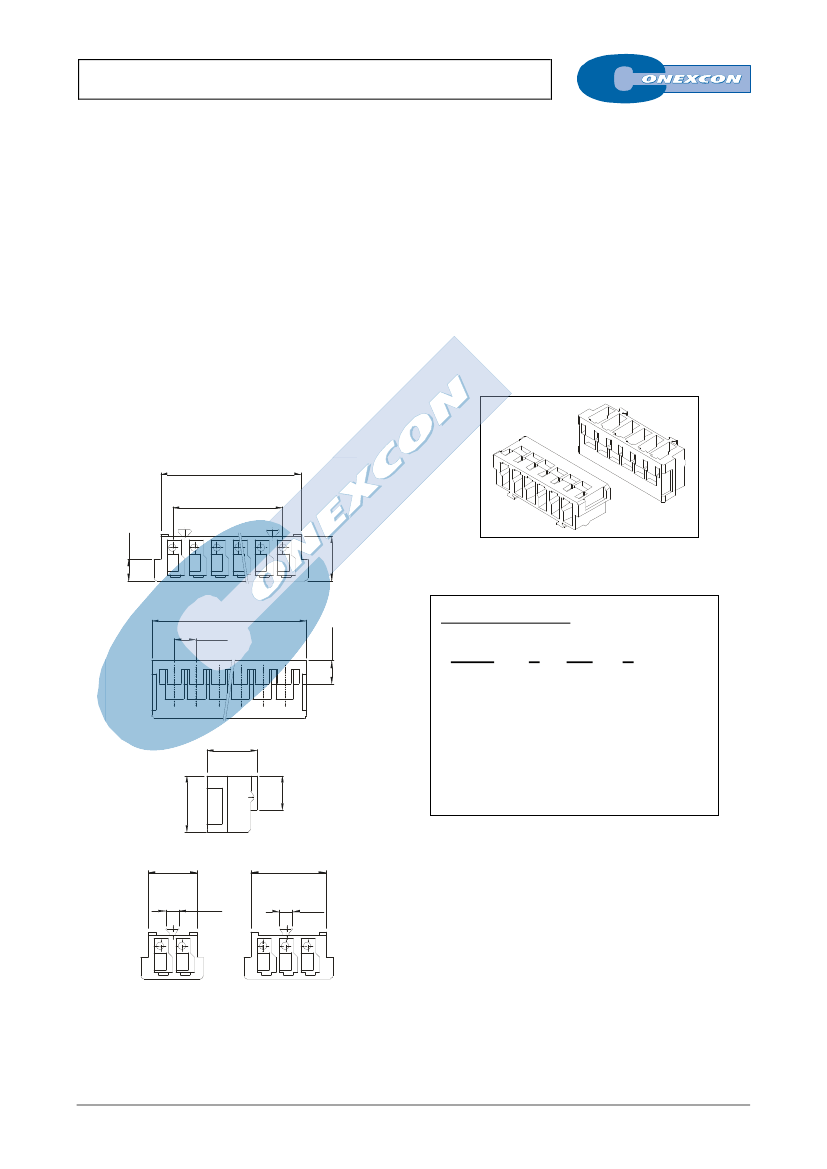

SINGLE ROW CRIMP CONNECTOR HOUSING

1980 SERIES.

2.00 mm. (0.079”) pitch.

General Features

Electrical Features



Available in 2 through 16 circuits

Mates with 2.00 mm. pitch 1981 and 1982 series

Low profile latch housing

Use crimp terminal 1984



Voltage rating: < 250V

Current rating: < 3 A

Contact resistance: < 20 mΩ

Dielectric withstanding voltage: 800 V AC/minute

Insulation resistance: >1000 MΩ

Materials

Mechanical Features

Contact retention force to the housing: > 1.5 Kgf

Insertion force to header: < 0.50 Kgf/pin

Withdraval force from header: < 0.10 Kgf/pin

Durability: 25 cycles



Insulator: Polyester Nylon 6T UL 94 V-0

Contact: brass

Operating temperature: -40ºC to +105ºC

RoHS compliant

Dimension Information

A+

1.2

A+

(.074)

A

1.9

.075

4.0

B

2.00

.079

.157

Ordering Information:

2.05

.081

1980 -

1

2-

XX-

3

1

1. Connector Series

4.6

.181

.126

3.2

3. (XX) number of circuits



.201

5.1

Available in 2 through 16 circuits

4.8

.189

1.2

.047

6.8

.268

1.2

.047

Dimensions:

(In mm.)

A

= 2.00 x (XX*-1)

B

= 2.00 x (XX*)+2.00

* XX

(Number of circuits)

(2 Circ.)

(3 Circ.)

A-XX
