1982-213-1: DescriptionBoard Connector, 13 Contact(s), 1 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size143KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

1982-213-1 Overview

Board Connector, 13 Contact(s), 1 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking, Receptacle

1982-213-1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	307289264
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.157 inch
subject depth	0.346 inch
body length	1.102 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact completed and terminated	TIN
Contact point gender	MALE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	800VAC V
Durability	25 Cycles
Insulation resistance	1000000000 Ω
insulator material	POLYAMIDE
Manufacturer's serial number	1982
Plug contact pitch	0.079 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.126 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	13

Preview

Download Datasheet

View All

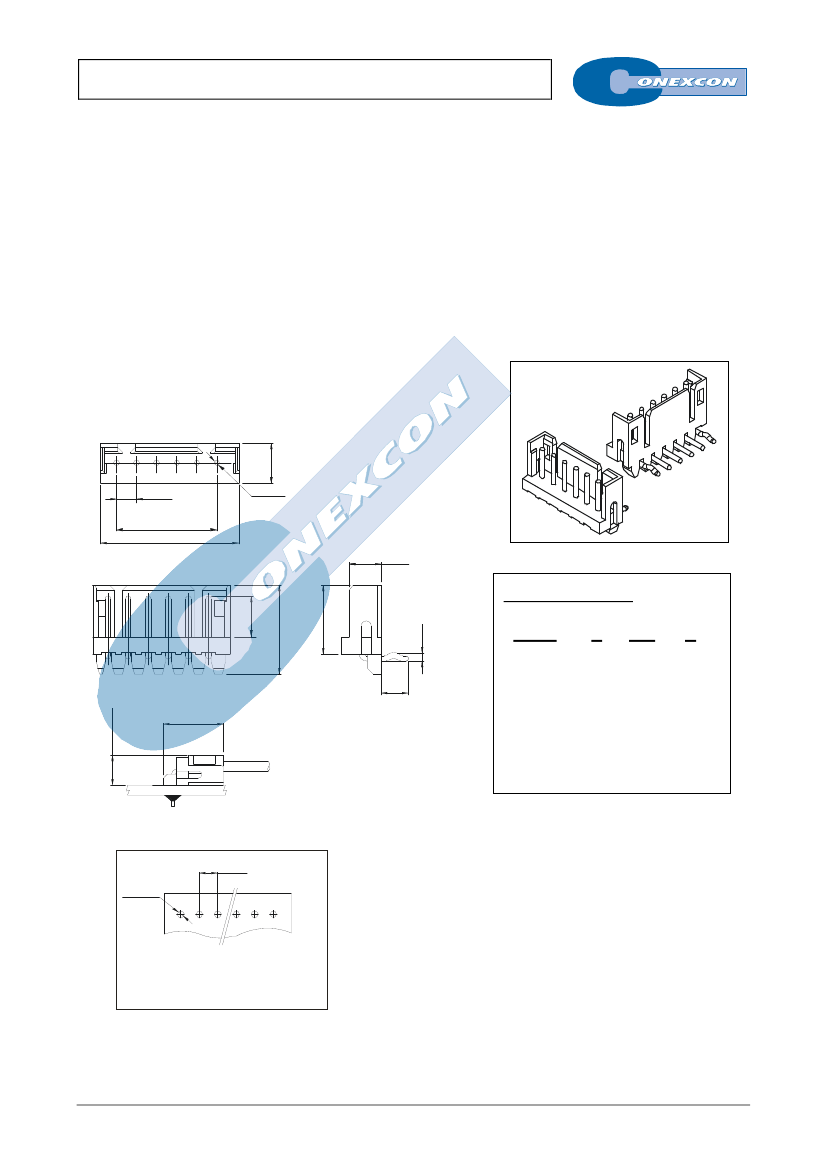

SINGLE ROW SIDE ENTRY HEADER

1982 SERIES.

2.00 mm. (0.079”) pitch.

General Features

Electrical Features



Available in 2 through 16 circuits

Mates with 2.00 mm. pitch crimp housing 1980 series

Tin plated round pin 0.60 mm.

Fully shrouded with polarized slot



Voltage rating: < 250V

Current rating: < 3 A

Contact resistance: < 20 mΩ

Dielectric withstanding voltage: 800 V AC/minute

Insulation resistance: >1000 MΩ

Materials

Mechanical Features

Pin retention force to insulator: > 1.00 Kgf

Durability: 25 cycles



Insulator: Nylon 66 UL 94 V-0

Contact: Tin plated brass

Operating temperature: -40ºC to +105ºC

RoHS compliant

Dimension Information

4.00

2.00

.079

A

B

ø0.6

ø.024

.157

3.00

.118

Ordering Information:

4.95

.195

8.8

.346

6.80

.268

0.9

.035

1982 -

1

2-

XX-

3

1

3.2

4.4 Ref.

.126

.173Ref.

8.8 Ref.

.346 Ref.

1. Connector Series

3. (XX) Number of circuits



Available in 2 through 16 circuits

Mating Dimensions

Dimensions:

(In mm.)

A

= 2.00 x (XX*-1)

B

= 2.00 x (XX*)+2.00

* XX

(Number of circuits)

2.00

.079

ø0.70

ø.028

RECOMMENDED HOLE PATTERN

( PCB tickness 1.0 to 1.6mm.)

A-XX

FULL LINE CATALOGUE
