2073-6-281: DescriptionBoard Connector, 28 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size226KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

2073-6-281 Overview

Board Connector, 28 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Receptacle

2073-6-281 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	307969547
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.248 inch
subject depth	0.299 inch
body length	1.207 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	Gold (Au)
Contact point gender	MALE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Durability	50 Cycles
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 code	e4
Manufacturer's serial number	2073
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.2418 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.0066 mm
Termination type	SURFACE MOUNT
Total number of contacts	28

Preview

Download Datasheet

View All

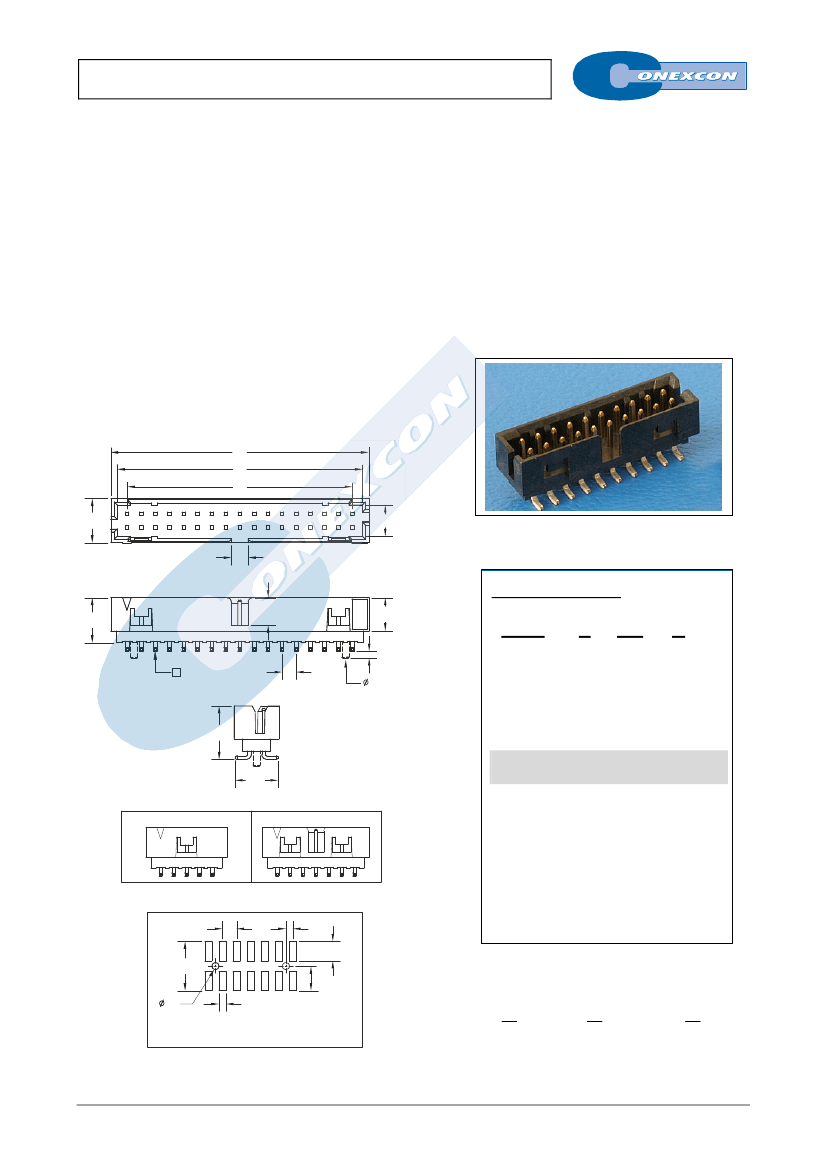

DUAL ROW TOP ENTRY SMT BOX HEADER

2073 SERIES.

2.00 x 2.00 mm. (0.079 x 0.079”) pitch.

General Features

Electrical Features



Available in 4, 6, 8, 10, 12, 14, 16, 18, 20, 22, 24, 26, 28,

30, 32, 34, 36, 38, 40, 42, 44, 46, 50 and 68 circuits

Mates with 2.00 mm. IDC connectors 2070 series

Gold plated 0.50 mm square pin

Fully shrouded with polarized slot.

Low profile: 7.60 mm. high



Voltage rating: < 250V

Current rating: < 1 A

Contact resistance: < 20 mΩ

Dielectric withstanding Voltage: 500 V AC/minute

Insulation resistance: >1000 MΩ

Materials

Insulator: LCP, glass reinforced, rated UL 94V-0

Terminal: gold plated brass

Operating temperature. -25ºC to +85ºC

RoHS compliant

Mechanical Features



Durability: 50 Cycles

Dimension Information

C

B

A

6.3

2.4

4.5

Ordering Information:

6.4

3.9

4.7

2073 -

1

T-

2

XX-

3

S

4

1.0

0.5*0.5

2.0

0.8

1. Connector Series

2. (T) Contact Plating

7.6



6.3

T =

2.

Tin plated

T =

3.

Gold flash over nickel

Recommended Finish

T =

5.

15µ” gold over nickel

T =

6.

30µ” gold over nickel

4 to 12 circuits

14 to 68 circuits



3. (XX) Number of circuits

Available in 4 through 68 circuits

4. (S) Fixing Options

S =

1.

Without fixing post

S =

2.

With fixing post

2

7.0

1.0

2.75

3.5

1.0

Dimensions:

(In mm.)



XX





A

½

2.00



2



1









XX





B

½

2.00



2

 

0.85







XX





C

½

2.00



2

 

2.65





RECOMMENDED PCB LAYOUT

(XX) = Number of circuits

A-XX
