5016-2131: DescriptionBoard Connector, 13 Contact(s), 1 Row(s), Male, Straight, 0.197 inch Pitch, Solder Terminal; CategoryThe connector The connector; File Size50KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

5016-2131 Overview

Board Connector, 13 Contact(s), 1 Row(s), Male, Straight, 0.197 inch Pitch, Solder Terminal

5016-2131 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	304387942
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.236 inch
subject depth	0.126 inch
body length	2.559 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1500VAC V
Durability	25 Cycles
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	5016
Plug contact pitch	0.197 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.138 inch
Terminal pitch	5.0038 mm
Termination type	SOLDER
Total number of contacts	13

Preview

Download Datasheet

View All

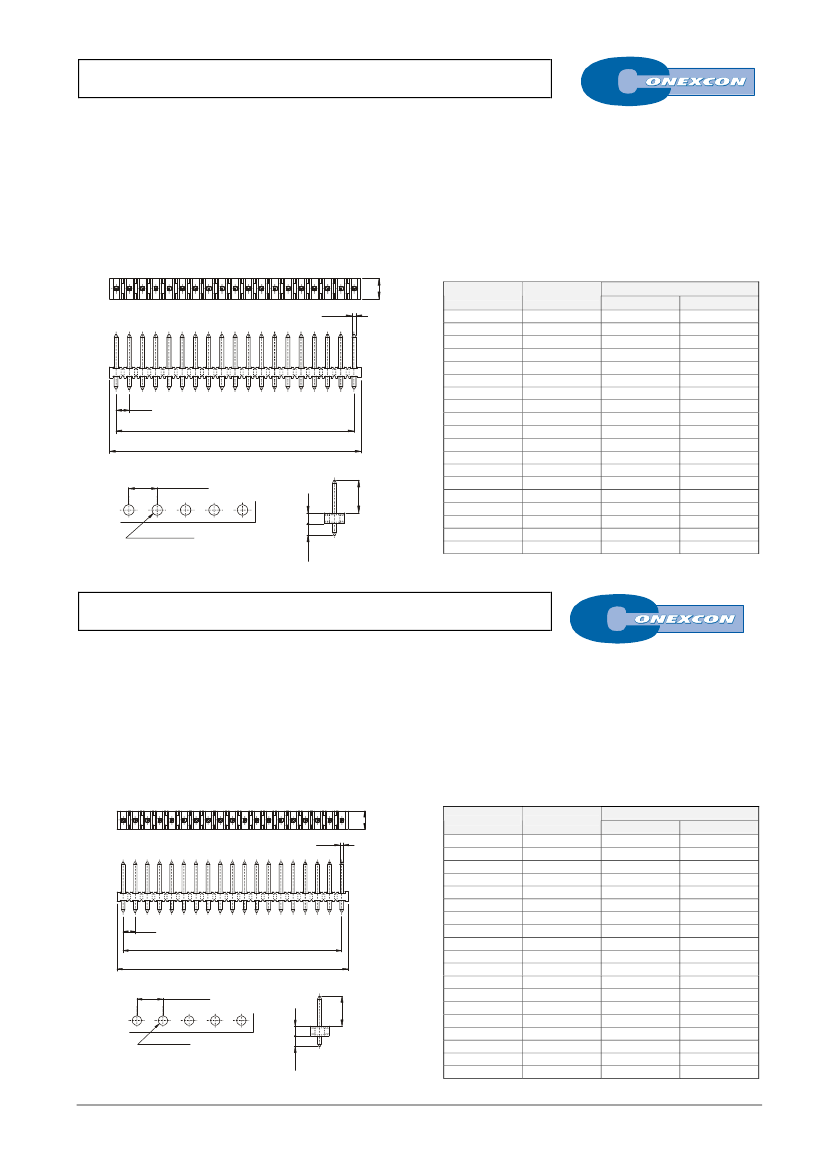

5.00mm SINGLE ROW BREAKAWAY HEADER

5016 SERIES.

5.00mm(0.197”). Round Pin. For PCB Solder

Features



Available in 2 through 20 circuits

Insulator Material: Nylon 6/6 UL 94V-0

1.14mm(.045”) round pin in tinned brass

Easy breakaway to desired circuits



Mates with 5000 series socket

With standoff minimise flux retention

Pin omit options are available in any circuits

For other options consult the Sales Office

Ordering and Dimensional Information

Dimensional Information

.236

6.0

Circuit Size

Part Number

5016- 2021

5016- 2031

5016- 2041

5016- 2051

5016- 2061

5016- 2071

5016- 2081

5016- 2091

5016- 2101

5016- 2111

5016- 2121

5016- 2131

5016- 2141

5016- 2151

5016- 2161

5016- 2171

5016- 2181

5016- 2191

5016-2201

Dimensions

5,00(0,197)

10,00(0,394)

15,00(0,591)

20,00(0,787)

25,00(0,984)

30,00(1,181)

35,00(1,378)

40,00(1,575)

45,00(1,772)

50,00(1,969)

55,00(2,165)

60,00(2,362)

65,00(2,559)

70,00(2,756)

75,00(2,953)

80,00(3,150)

85,00(3,346)

90,00(3,543)

95,00(3,740)

10,00(0,394)

15,00(0,591)

20,00(0,787)

25,00(0,984)

30,00(1,181)

35,00(1,378)

40,00(1,575)

45,00(1,772)

50,00(1,969)

55,00(2,165)

60,00(2,362)

65,00(2,559)

70,00(2,756)

75,00(2,953)

80,00(3,150)

85,00(3,346)

90,00(3,543)

95,00(3,740)

100,00(3,937)

1.14

.045

5.00

.197

10.25

.404

.126

3.2

5.00±0.05

.197±.002

RECOMMENDED HOLE PATTERN

5.00mm SINGLE ROW BREAKAWAY HEADER

5017 SERIES.

5.00mm(0.197”). Square Pin. For PCB Solder

Features



3.50

.138

1.40±0.10

.004±.055

Available in 2 through 20 circuits

Insulator Material: Nylon 6/6 UL 94V-0

1.14mm(.045”) square pin in tinned brass

Easy breakaway to desired circuits



Mates with 5000 series socket

With standoff minimise flux retention

Pin omit options are available in any circuits

For other options consult the Sales Office

Ordering and Dimensional Information

Dimensional Information

6.0

.236

Circuit Size

Part Number

5017- 2021

5017- 2031

5017- 2041

5017- 2051

5017- 2061

5017- 2071

5017- 2081

5017- 2091

5017- 2101

5017- 2111

5017- 2121

5017- 2131

5017- 2141

5017- 2151

5017- 2161

5017- 2171

5017- 2181

5017- 2191

5017-2201

Dimensions

5,00(0,197)

10,00(0,394)

15,00(0,591)

20,00(0,787)

25,00(0,984)

30,00(1,181)

35,00(1,378)

40,00(1,575)

45,00(1,772)

50,00(1,969)

55,00(2,165)

60,00(2,362)

65,00(2,559)

70,00(2,756)

75,00(2,953)

80,00(3,150)

85,00(3,346)

90,00(3,543)

95,00(3,740)

10,00(0,394)

15,00(0,591)

20,00(0,787)

25,00(0,984)

30,00(1,181)

35,00(1,378)

40,00(1,575)

45,00(1,772)

50,00(1,969)

55,00(2,165)

60,00(2,362)

65,00(2,559)

70,00(2,756)

75,00(2,953)

80,00(3,150)

85,00(3,346)

90,00(3,543)

95,00(3,740)

100,00(3,937)

1.14

.045

5.00

.197

5.00±0.05

.197±.002

3.2

.126

10.25

.404

1.80±0.10

.071±.004

3.50

.138

RECOMMENDED HOLE PATTERN
