5071-2-16-2

Description
Board Connector, 16 Contact(s), 1 Row(s), Male, Straight, 0.2 inch Pitch, Wire Wrap Terminal, Locking, Receptacle
CategoryThe connector    The connector
File Size71KB,1 Pages
ManufacturerConexcon Group
Environmental Compliance
Download Datasheet Parametric View All

5071-2-16-2 Overview

Board Connector, 16 Contact(s), 1 Row(s), Male, Straight, 0.2 inch Pitch, Wire Wrap Terminal, Locking, Receptacle

5071-2-16-2 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid307307935
Reach Compliance Codeunknown
ECCN codeEAR99
body width0.246 inch
subject depth0.098 inch
body length3.2 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationSN
Contact completed and terminatedTIN
Contact point genderMALE
Contact materialBRASS
contact modeRECTANGULAR
Contact resistance20 mΩ
Contact styleSQ PIN-SKT
Dielectric withstand voltage1500VAC V
Durability25 Cycles
Insulation resistance1000000000 Ω
insulator materialPOLYAMIDE
Manufacturer's serial number5071
Plug contact pitch0.2 inch
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number1
Number of rows loaded1
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
PCB contact patternRECTANGULAR
Rated current (signal)5 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.433 inch
Terminal pitch5.08 mm
Termination typeWIRE WRAP
Total number of contacts16

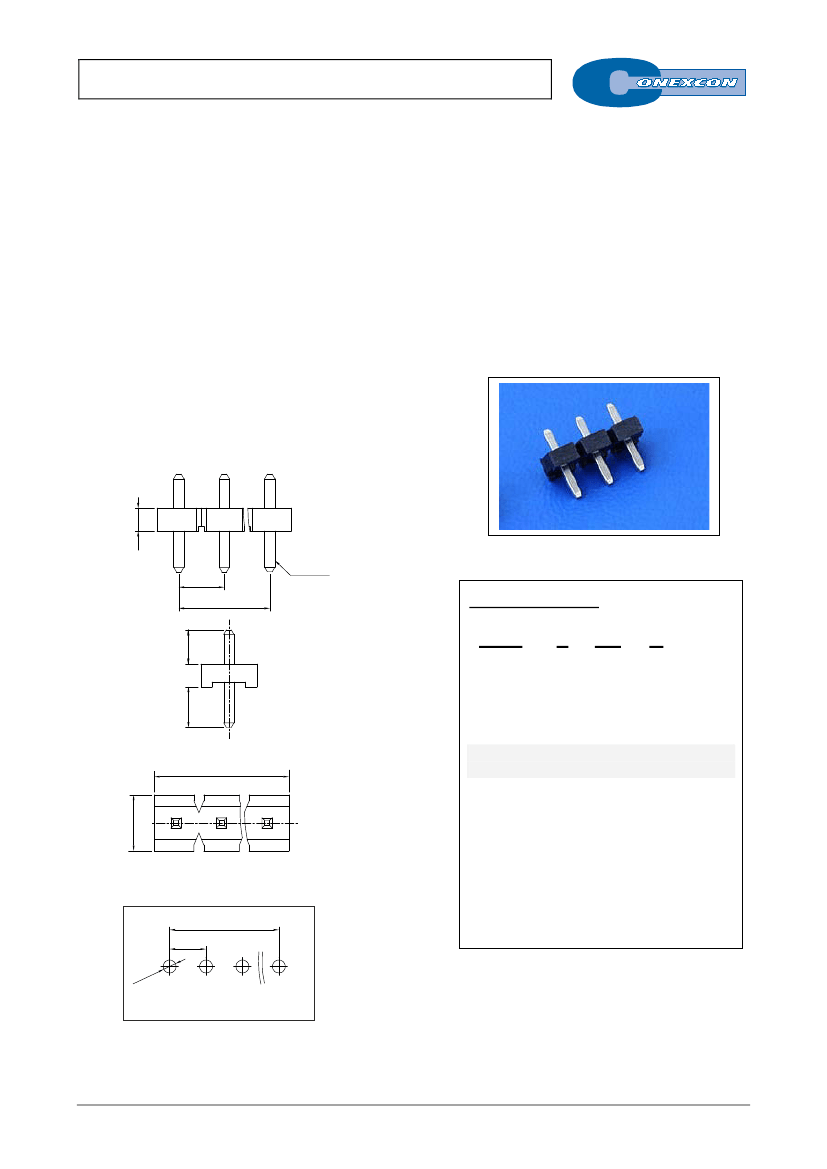

SINGLE ROW VERTICAL PIN HEADER
5071 SERIES.
5.08 mm (0.200”) pitch.
General Features
Electrical Features
Available in 2 through 20 circuits
Mates with PCB sockets 5.08 mm. pitch 1507, 1508, 1509,
5069, 5070 and wire housing 5080 and 5081 series
1.14 mm. square pin
Pin omit options are available in any circuits
Materials
Voltage rating: < 250V
Current rating: < 5 A
Contact resistance: < 20 mΩ
Dielectric withstanding voltage: 1500 V AC/minute
Insulation resistance: >1000 MΩ
Mechanical Features
Insulator: Nylon 66 UL 94 V-2
Contact: brass
Operating temperature: -40ºC to +105ºC
RoHS compliant
Pin retention force to insulator: > 2.00 Kgf
Durability: 25 cycles
Dimensional Information
2.50
5.08
A
1.14
Ordering Information:
H
±0.25
5071 -
1
T-
2
XX-
3
C
4
D
±0.25
1. Connector Series
2. (T) Contact Plating
T =
2.
Tin plated
B
Recommended Finish
3. (XX) Number of circuits
6.26
Available in 2 through 20 circuits
5. (C) Pin Dimensions
A
5.08
C =
1.
Dim. H= 3.80 mm. ; D = 4.55 mm.
C =
2.
Dim. H=19.50 mm. ; D = 11.00 mm.
C =
3.
Dim. H=14.20 mm. ; D = 3.00 mm.
C =
4.
Dim. H=21.50 mm. ; D = 11.00 mm.
70
ø1.
RECOMMENDED HOLE PATTERN
Dimensions:
(In mm.)
A
= 5.08 x (XX*-1)
B
= 5.08 x (XX*)
* XX
(Number of circuits)
E-XX
