5758-13201 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 5758-13201

5758-13201: DescriptionBoard Connector, 20 Contact(s), Male, Right Angle, Surface Mount Terminal, Locking, Black Insulator; CategoryThe connector The connector; File Size78KB，1 Pages; ManufacturerConexcon Group

Download Datasheet Parametric View All

5758-13201 Overview

Board Connector, 20 Contact(s), Male, Right Angle, Surface Mount Terminal, Locking, Black Insulator

5758-13201 Parametric

Parameter Name	Attribute value
Objectid	307811197
Reach Compliance Code	unknown
ECCN code	EAR99
Board mount options	SOLDER HOLDING FLANGE
body width	0.345 inch
subject depth	0.626 inch
body length	1.327 inch
Connector type	BOARD CONNECTOR
Contact arrangement	S0P20
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	BRASS
Contact style	SQ PIN-SKT
Insulator color	BLACK
insulator material	NYLON
Manufacturer's serial number	5758
Mixed contacts	YES
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
Plating thickness	FLASH inch
Guideline	UL
reliability	COMMERCIAL
Termination type	SURFACE MOUNT
Total number of contacts	20

5758-13201 Preview

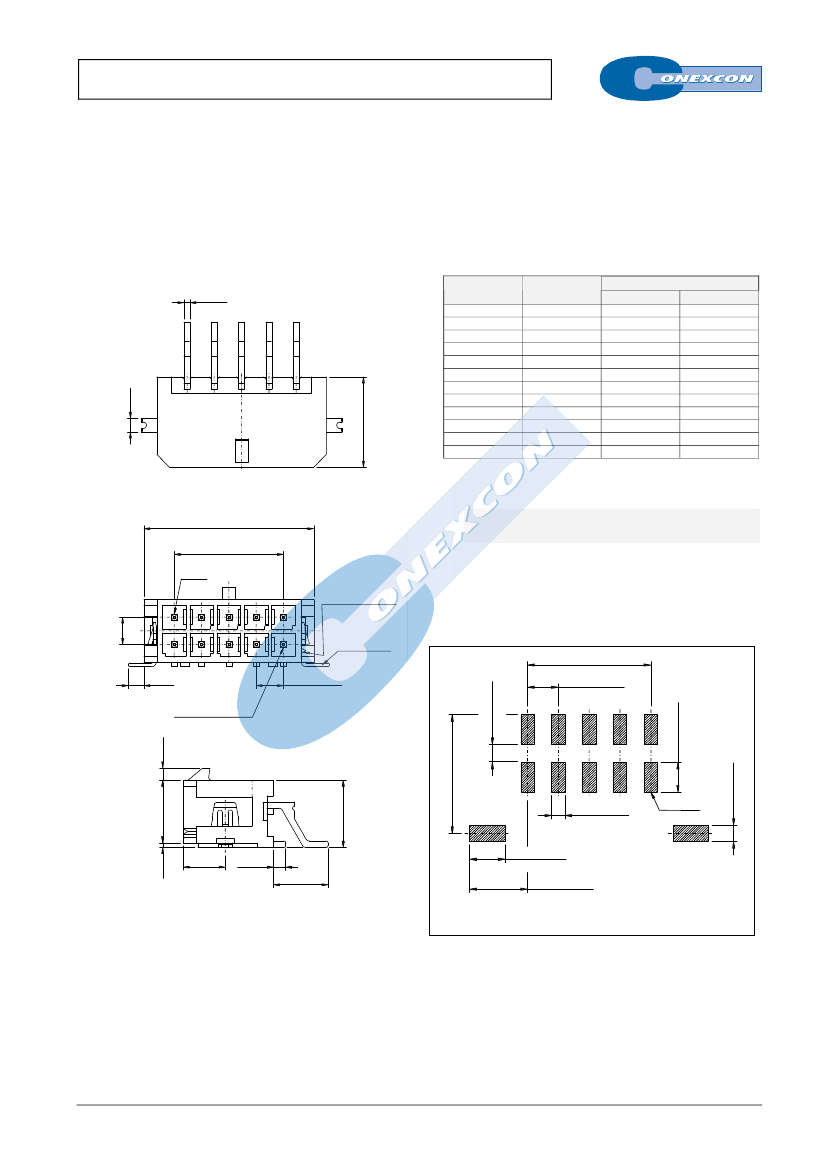

MICRO POWER RIGHT ANGLE HEADER SMT

5758 SERIES.

3.00mm(0.118”). For High Current / High Density

Features



Available in 2 through 24 circuits

Insulator Material: Nylon 6T UL 94V-0, Colour: Black

Contact Material: Brass

Mates with 5740 series housing



With metallic fixed tabs

Different plating options are available

Current Rating: 5 A maximum

For other options consult the Sales Office

Ordering and Dimensional Information

Circuit Size

Part Number

5758 –

T021

5758 –

T041

5758 –

T061

5758 –

T081

5758 –

T101

5758 –

T121

5758 –

T141

5758 –

T161

5758 –

T181

5758 –

T201

5758 –

T221

5758 –

T241

Dimensions

3.00 (.118)

6.00 (.236)

9.00 (.354)

12.00 (.472)

15.00 (.591)

18.00 (.709)

21.00 (.827)

24.00 (.945)

27.00 (1.063)

30.00 (1.181)

33.00 (1.299)

6.70 (.264)

9.70 (.382)

12.70 (.500)

15.70 (.618)

18.70 (.657)

21.70 (.854)

24.70 (.972)

27.70 (1.091)

30.70 (1.209)

33.70 (1.327)

36.70 (1.445)

39.70 (1.563)

Dimensional Information

0.64

.025

TYP.

1.5

TYP.

.059

9.9

.390

T = Contact Plating

Last Circuit Position

1St Circuit Mark

3.00



T =

Tin plated

Recommended Finish

T =

13.

Selective Gold flash over 50µ” nickel

T =

15.

Selective 15µ” gold over 50µ” nickel

T =

16.

Selective 30µ” gold over 50µ” nickel

Fixed Tabs

A±0.10

2.92±0.05

TYP.

115±.002

1.70±0.10

.067±.004

1.7

.067

1St Circuit Position

3.00±0.05

118±.002

3.00±0.10

.118±.004

6.86

.270

1.27±0.05

050±.002

3.43±0.05

135±.002

7.36

.290

Circuit 1

TYP.

0.5

.020

4.60

.181

1.35

.053

6.00

.236

TYP.2

5.61±0.10

.211±.004

RECOMMENDED PCB LAYOUT

FULL LINE CATALOGUE

1.65±0.05

TYP.2

065±.002

1.4

.055

11.56±0.08

.455±.003

L-XX
