5758-2121 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 5758-2121

5758-2121: DescriptionBoard Connector, 12 Contact(s), Male, Right Angle, Surface Mount Terminal, Locking, Black Insulator; CategoryThe connector The connector; File Size189KB，1 Pages; ManufacturerConexcon Group

Download Datasheet Parametric View All

5758-2121 Overview

Board Connector, 12 Contact(s), Male, Right Angle, Surface Mount Terminal, Locking, Black Insulator

5758-2121 Parametric

Parameter Name	Attribute value
Objectid	304387009
Reach Compliance Code	unknown
ECCN code	EAR99
Board mount options	SOLDER HOLDING FLANGE
body width	0.345 inch
subject depth	0.626 inch
body length	0.854 inch
Connector type	BOARD CONNECTOR
Contact arrangement	S0P12
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	BRASS
Contact style	SQ PIN-SKT
Insulator color	BLACK
insulator material	NYLON
Manufacturer's serial number	5758
Mixed contacts	YES
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
Guideline	UL
reliability	COMMERCIAL
Termination type	SURFACE MOUNT
Total number of contacts	12

Preview

Download Datasheet

View All

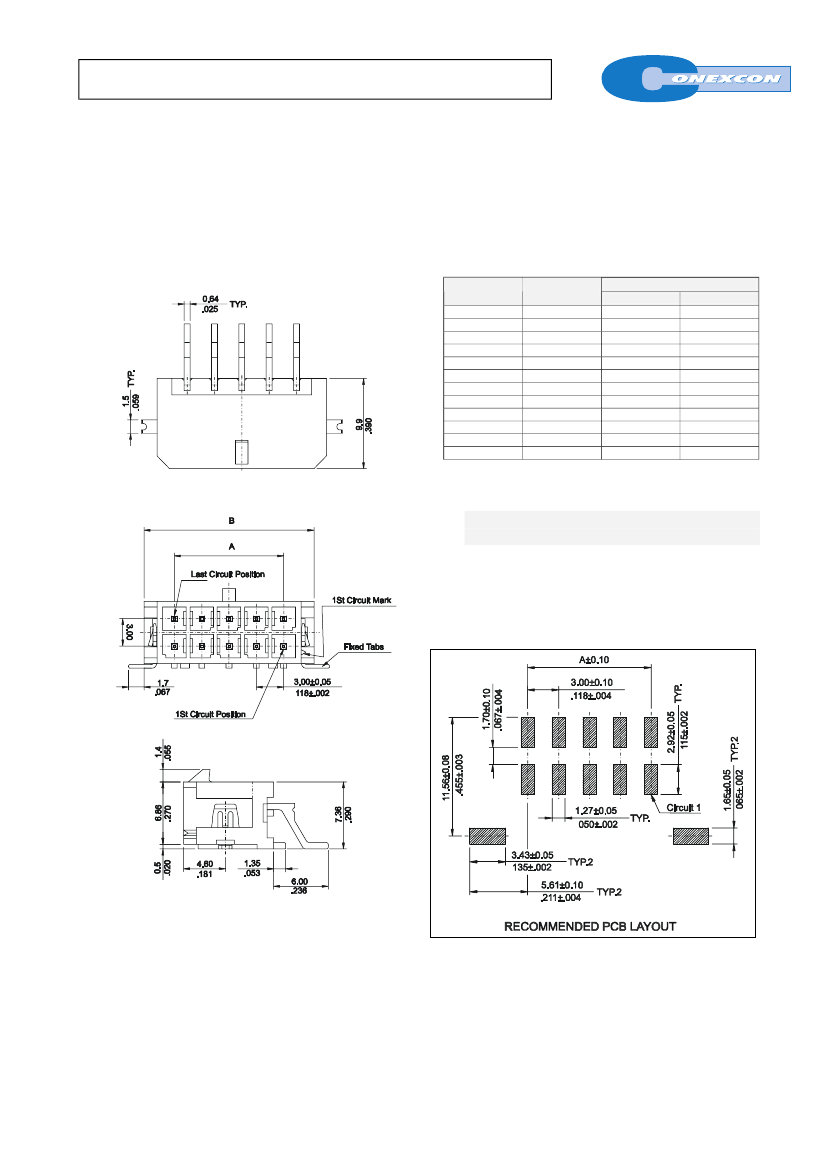

MICRO POWER RIGHT ANGLE HEADER SMT

SERIES.

5758 SERIES

3.00mm(0.118”). For High Current / High Density

Features

Available in 2 through 24 circuits

Insulator Material: Nylon 6T UL 94V-0, Colour: Black

Contact Material: Brass

Mates with 5740 series housing

With metallic fixed tabs

Different plating options are available

Current Rating: 5 A maximum

For other options consult the Sales Office

Ordering and Dimensional Information

Circuit Size

Part Number

5758 –

T021

5758 –

T041

5758 –

T061

5758 –

T081

5758 –

T101

5758 –

T121

5758 –

T141

5758 –

T161

5758 –

T181

5758 –

T201

5758 –

T221

5758 –

T241

Dimensions

3.00 (.118)

6.00 (.236)

9.00 (.354)

12.00 (.472)

15.00 (.591)

18.00 (.709)

21.00 (.827)

24.00 (.945)

27.00 (1.063)

30.00 (1.181)

33.00 (1.299)

6.70 (.264)

9.70 (.382)

12.70 (.500)

15.70 (.618)

18.70 (.657)

21.70 (.854)

24.70 (.972)

27.70 (1.091)

30.70 (1.209)

33.70 (1.327)

36.70 (1.445)

39.70 (1.563)

Dimensional Information

T = Contact Plating

T =

Tin plated

Recommended Finish

T =

13.

Selective Gold flash over 50µ” nickel

T =

15.

Selective 15µ” gold over 50µ” nickel

T =

16.

Selective 30µ” gold over 50µ” nickel

CONEXCON

Products specifications are subjet to be changed without notice. Please contact Sales Office for further confirmation
