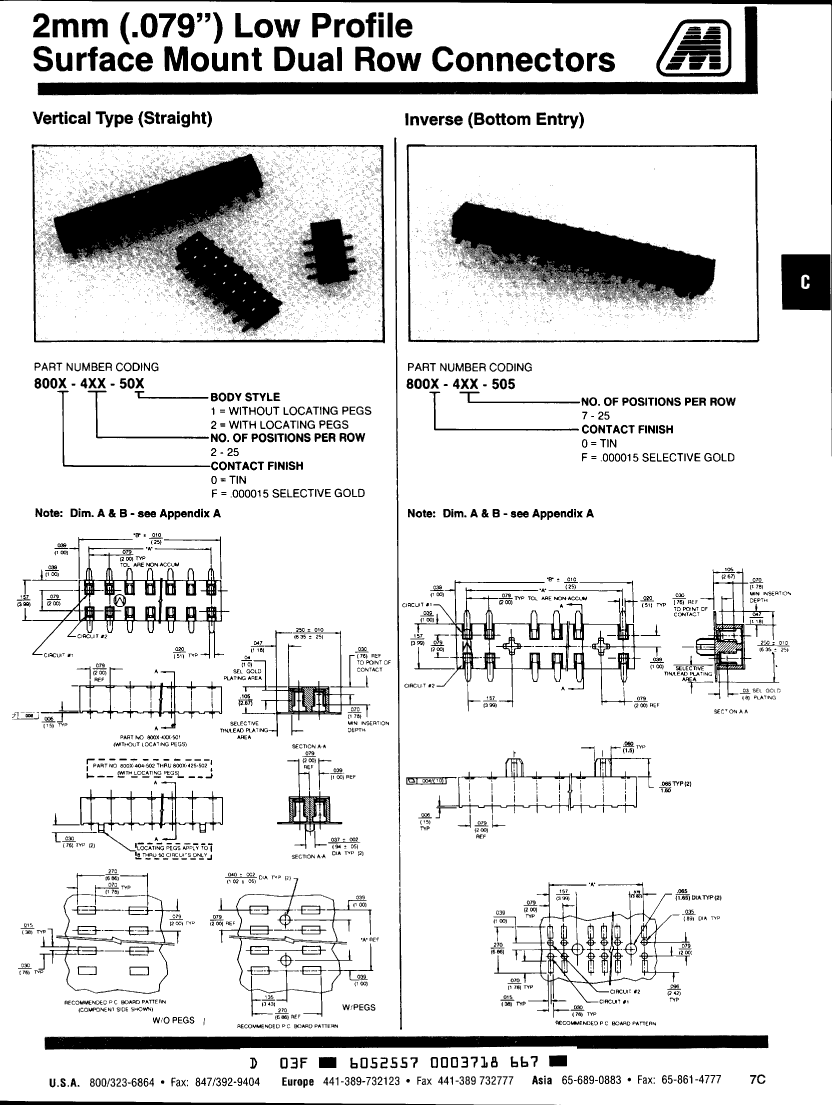

8000-424-505: DescriptionBoard Connector, 48 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Plug; CategoryThe connector The connector; File Size323KB，3 Pages; ManufacturerMethode Electronics Inc.

Download Datasheet Parametric View All

8000-424-505 Overview

Board Connector, 48 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Plug

Parameter Name	Attribute value
Objectid	301198892
Reach Compliance Code	unknown
ECCN code	EAR99
Board mount options	LOCATING POSTS
body width	0.157 inch
subject depth	0.105 inch
body length	1.889 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN ON NI
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	200VAC V
maximum insertion force	2.78 N
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	800
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation method	STRAIGHT
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.08 mm
Plating thickness	200u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.0066 mm
Total number of contacts	48
Evacuation force-minimum value	.556 N
