1213-34-S1-01-B datasheet, PDF

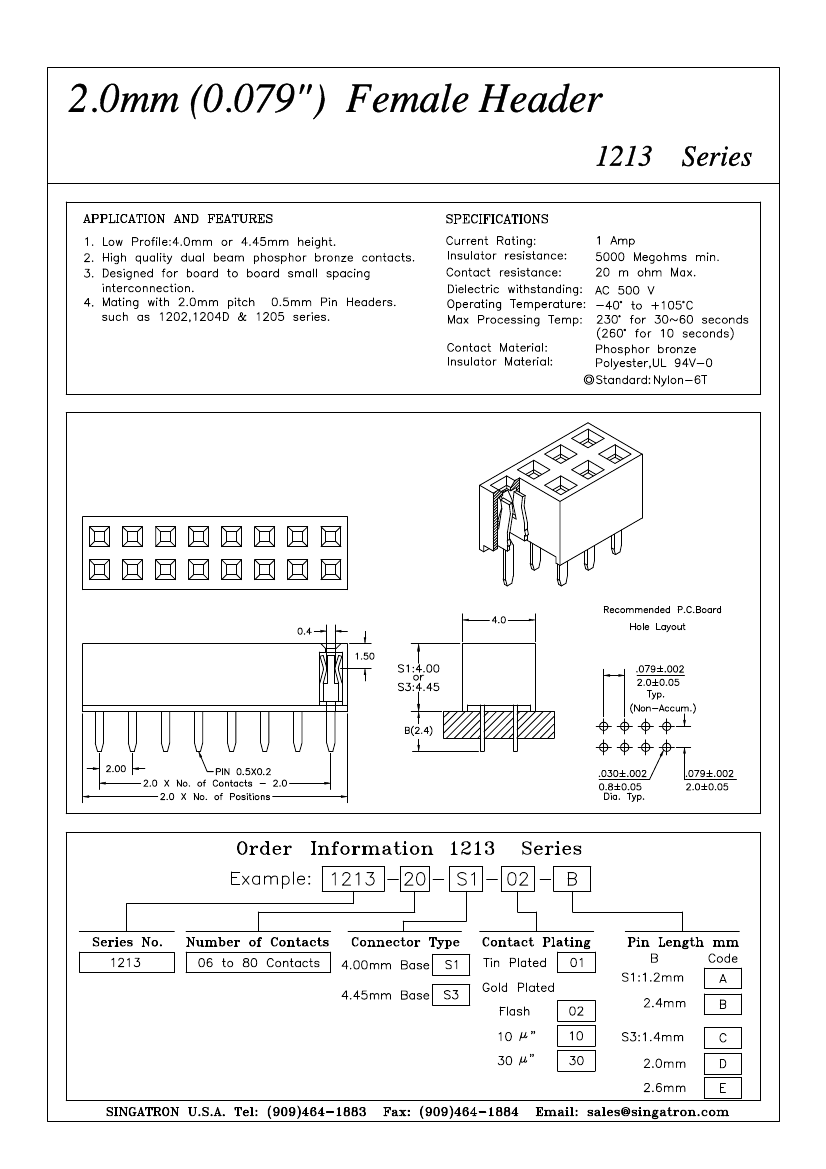

1213-34-S1-01-B: DescriptionBoard Connector, 34 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Plug; CategoryThe connector The connector; File Size83KB，1 Pages; ManufacturerSingatron Enterprises Co

Download Datasheet Parametric View All

1213-34-S1-01-B Overview

Board Connector, 34 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Plug

Parameter Name	Attribute value
Objectid	1157653425
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	LOW PROFILE
body width	0.157 inch
subject depth	0.157 inch
body length	1.339 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	5000000000 Ω
insulator material	NYLON
Manufacturer's serial number	1213
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.094 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	34
