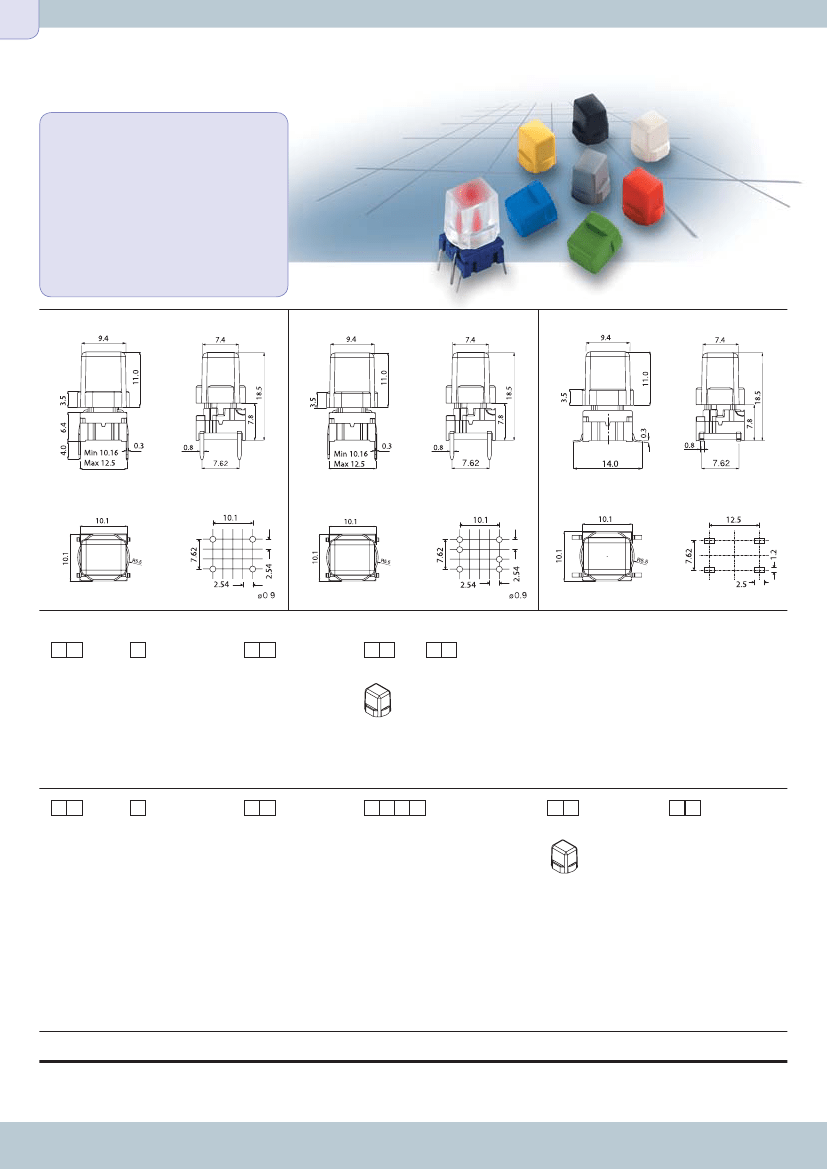

20
multimec
Technical Data
■
■
■
■
■
■
through-hole or SMD
50mA/24VDC
single pole/momentary
10.000.000 operations life time
IP67 sealing
temperature range:
low temp: -40/+115°C
high temp: -40/+160°C
®
3F + 1X
Dimensions (through-hole)
Dimensions (w/LED)
Dimensions (SMD)
PCB layout
PCB layout
(top view)
PCB layout
How to order
3 F
Switch
Mounting
T
through-hole
S
surface mount
+
L 6
low temp.
H 9
high temp.
1 X
Cap
00
blue
02
green
03
grey
04
yellow
06
white
08
red
09
black
30
ultra blue
40
dusty blue
42
aqua blue
32
mint green
33
tele grey
34
melon
38
noble red
50
metal dark blue
53
metal light grey
57
metal dark grey
58
metal bordeaux
3 F
Switch
T
Mounting
T
through-hole
L 6
low temp.
H 9
high temp.
LED
00
blue
20
green
40
yellow
60
white
80
red
2040
green/yellow
8020
red/green
8040
red/yellow
+
1 X
Cap
11
transparent
16
frosted white
Keycaps shown on this page can also be used on
illumec™ switch 4F - see page 13
Ordering example:
3FTL6 + 1X09 or 3FTL680 + 1X11
For updates of products and/or changes of specifications please see
www.mec.dk
