LYBR1VM152 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> LYBR1VM152

LYBR1VM152: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum, 35V, 20% +Tol, 20% -Tol, 1500uF; CategoryPassive components capacitor; File Size268KB，4 Pages; ManufacturerLuminous Town Electric Co., Ltd.

Download Datasheet Parametric View All

LYBR1VM152 Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum, 35V, 20% +Tol, 20% -Tol, 1500uF

LYBR1VM152 Parametric

Parameter Name	Attribute value
Objectid	1215532610
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	1500 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	16 mm
dielectric materials	ALUMINUM
length	25 mm
Manufacturer's serial number	LYB(35V)
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package form	Radial
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	35 V
series	LYB(35V)
Terminal pitch	7.5 mm

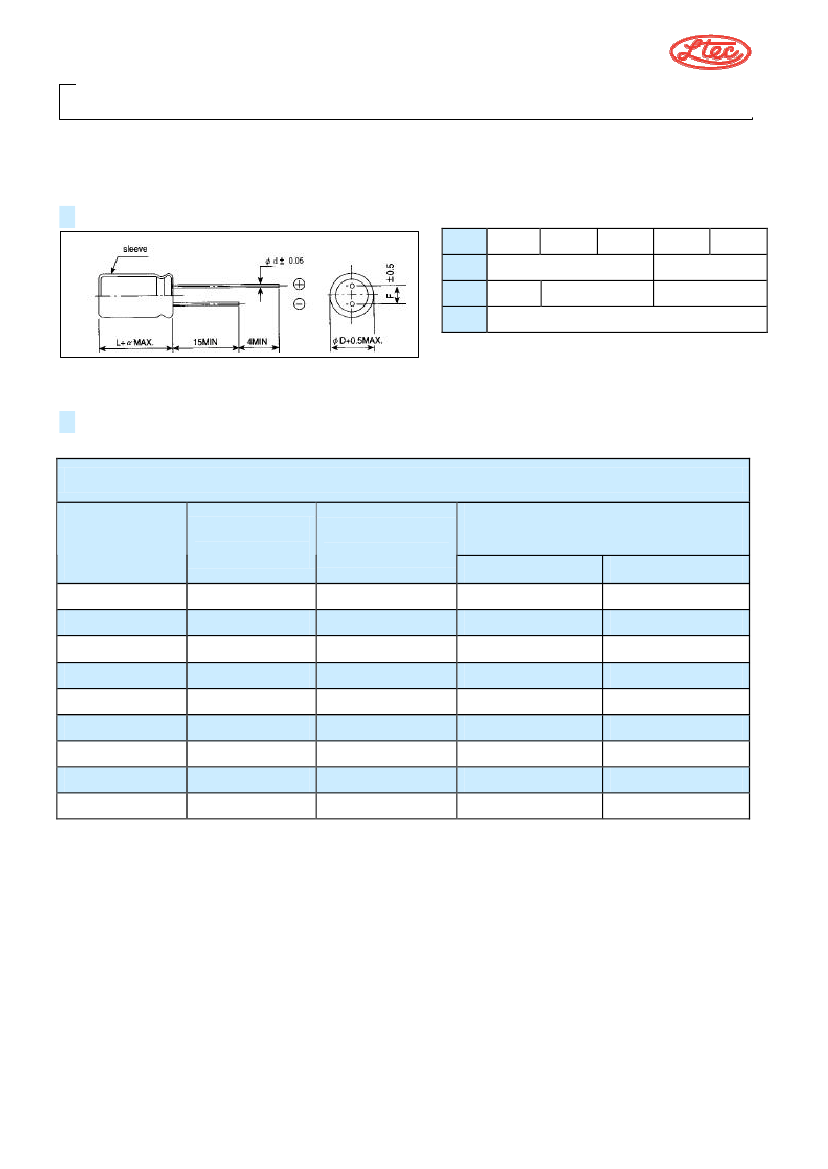

Preview

Download Datasheet

View All

ALUMINUM ELECTROLYTIC CAPACITORS

LYB

■FEATURES

Goback

series

ULTRA. Low Impedance, High Ripple Current

Enabled high ripple current by a reduction of impedance at high frequency range

Load Life:105℃ 2000~3000 hours

■SPECIFICATIONS

Item

Operating Temperature

Range

Rated Voltage Range

Capacitance Tolerance

Characteristics

-40℃~+105℃

6.3~35 W.V.

±20%

(20℃,120Hz)

1=0.01CV or 3uA whichever is greater.(After 2minutes)1=Leakage

Leakage Current (MAX)

Current(uA) C= Nominal Capacitance(uA) V= Rated

When nominal capacitance is over 1000uF, tanδ shall be added 0.02 to the listed

value with increase of every 1000uF

Dissipation Factor

(tanδ)

Rated voltage (V)

Tan

(MAX)

0.22

6.3

0.19

0.16

0.14

0.12

MAX

(20℃,

120HZ)

Low Temperature

Stability Impedance

Ratio (MAX)

Measurement frequency:120Hz

120HZ

MAX

Rated Voltage(V)

Z(-40℃)/Z(+20℃)

After life test at conditions stated in the table below, the capacitors shall meet the following

requirement.

CapacitanceChange within ±25% of the initialvalue

Load Life

Dissipation Factor

Leakage Current

Shelf Life

Standard

Not more than 200% of the

specified value.

Not more than the specifiedvalue.

Case Dia

φD=8

φD=10

φD≧12.5

Life Time(hrs)

2000

3000

After leaving capacitors under no load of 105℃ for 1000 hours and applying voltage according

to JIS C-5102 4-3, they meet the specified value for load life characteristics listed above.

JIS C 5141

■MULTIPLIER

FOR RIPPLE CURRENT

Frequency coefficient

FREQUENCY

60(50)

Cap(Uf)

Temperature coefficient

10K

100K≦

Temperature

Coefficient

40℃

55℃

65℃

75℃

85℃ 105℃

120

100~330

390~1000

1200~6800

0.60

0.65

0.75

0.70

0.75

0.80

0.85

0.90

0.95

0.98

1.00

2.41

2.12

2.00

1.70

1.00
