QT735 SERIES
Q-TECH
CORPORATION
New Space Crystal Oscillator
3.2 x 5mm | 1.8V, 2.5V, 3.3V, 5Vdc | 1.000MHz to 250MHz
Description
Q-Tech’s low profile extreme high shock hybrid
oscillators consist of an IC operating at various supply
voltages from 1.8V, 2.5V, 3.3V, and 5.0Vdc and a
miniature strip quartz crystal. The series is offered in
Surface-Mount SMT ceramic package. This is a small
footprint package offered with a 50kRad(Si) TID for Low
Earth Orbit (LEO) with high shock and high reliability
space applications.
Features
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
ECCN: EAR99
50kRad(Si) Total Dose Ionization
Broad Frequency Range, 1.000MHz to 250MHz
Small footprint, 3.2 x 5mm surface mount packages
CMOS, LVDS, LVPECL
Various Supply Voltages, 1.8Vdc to 5.0Vdc
Wide Operating Temperature Range, -55°C to 125°C
Tri-State Output
Hermetically sealed package
Fundamental and 3rd Overtone Designs
Screening per MIL-PRF-55310, Level B, with PIND
High Shock Resistant, tested up to 20,000g Mechanical
Shock, Half-Sine, 0.3ms, All Axes
Tape and Reel Packaging is available for an additional
cost.
Optional Hot Solder Dip, Sn60Pb40
RoHS Compliant
Note: Screening and test data is not serialized.
AC
HC
LA
L
N
R
LW
NW
LP
NP
=
=
=
=
=
=
=
=
=
=

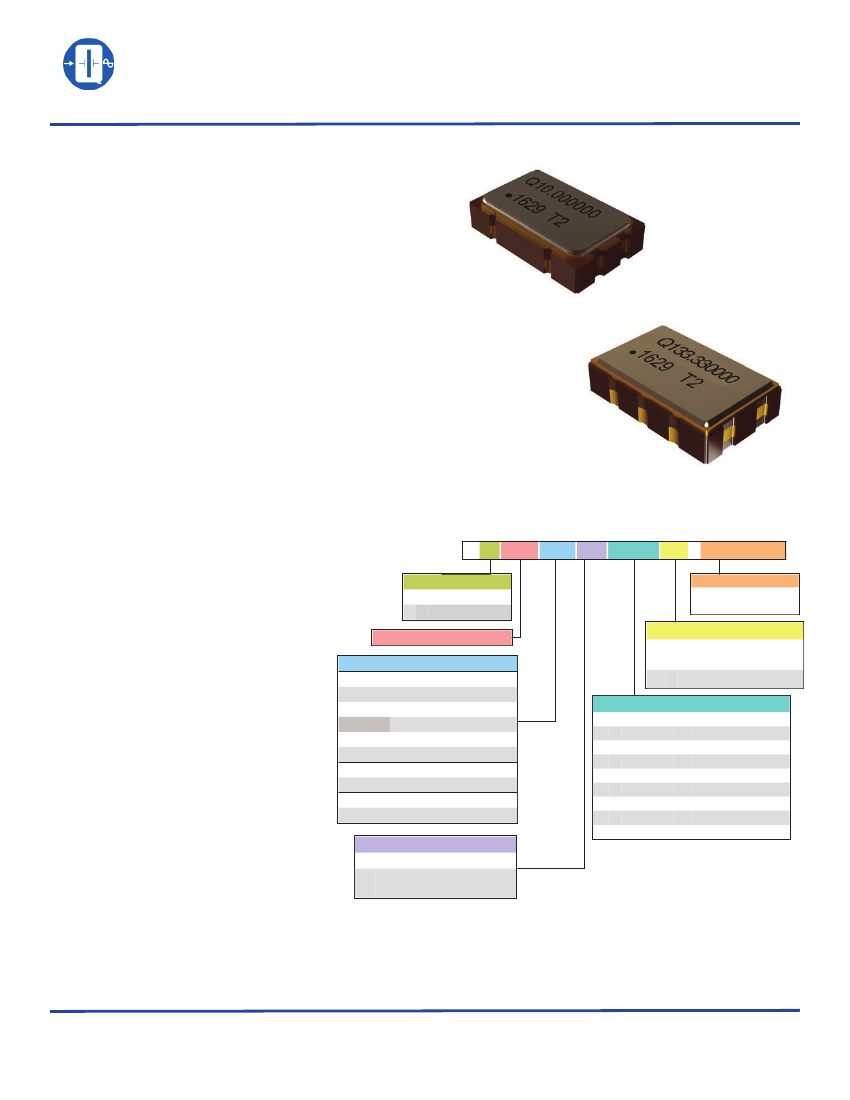

Ordering Information
Q T 735 L D 10 M - 50.000M H z
Q T 735
L
D
10
M - 50.000MHz
Solder Dip Options
T = Standard
S = Sn60Pb40
Logic
ACMOS +5V (50pF)
HCMOS +5V (15pF)
CMOS +3.3V (50pF)
CMOS +3.3V (15pF)
CMOS +2.5V
CMOS +1.8V
LVDS
+3.3V
LVDS
+2.5V
LVPECL +3.3V
LVPECL +2.5V
Package (*)
M =
6
9
10
11
12
15
16
17
20
=
=
=
=
=
=
=
=
=
Output Frequency in
MHz
Screening per MIL-PRF-
55310, Level B, modified
E =
Engineering Model
(Sample part number)
Frequency
Screening
Applications
• Commercial satellites
• Low Earth Orbit
• New Space
Tristate
D = Tristate on Pin 1
Tristate on Pin 2
E =
(LVDS/LVPECL Only)
Temperature code (**)
±50ppm at -55°C to +105°C
±50ppm at -55°C to +125°C
±100ppm at -55°C to +125°C
±50ppm at -40°C to +85°C
±100ppm at -40°C to +85°C
±25ppm at -40°C to +85°C
±100ppm at -55°C to +105°C
±100ppm at -40°C to +125°C
±50ppm at -40°C to +125°C
Q-TECH Corporation - 10150 W. Jefferson Boulevard, Culver City 90232 - Tel: 310-836-7900 - Fax: 310-836-2157 - www.q-tech.com
QPDS-0238 (Rev -, September 2019)
(*) CMOS/TTL = 4 Pad, LVDS/LVPECL = 6 Pad
(**) Frequency stability vs. temperature codes may not be available in all fre-
quencies. LVDS and LVPECL are only available with codes 5, 11, 12, 15,
16, and 18.
1 of 8
QT735 SERIES
Q-TECH
CORPORATION
Supply voltage (Vdd)
Maximum Applied Voltage
(Vdd max.)
Storage temperature (Tsto)
Operating supply current
(No Load)
Output frequency range (Fo)
Parameters
QT735AC
1.544MHz — 75.000MHz
-0.7 to +7.0Vdc
5.0Vdc ± 10%
QT735HC
QT735LA
3.3Vdc ± 10%
32.768kHz, 1.000MHz — 125.000MHz
-0.5 to +5.0Vdc
QT735L
New Space Crystal Oscillator
3.2 x 5mm | 1.8V, 2.5V, 3.3V, 5Vdc | 1.000MHz to 250MHz
QT735N
QT735R
2.5Vdc ± 10%
1.544MHz — 125.000MHz
-0.5 to +3.6Vdc
1.8Vdc ± 10%
Frequency stability (∆F/∆T)
Operating temperature (Topr)
10 mA max. -
≤ 20MHz
30 mA max. - 20MHz ~ ≤ 50MHz
40 mA max. - 50MHz ~ ≤ 75MHz
5 mA max. -
7 mA max. -
20 mA max. -
30 mA max. -
40 mA max. -
See Part Number on Page 1
See Part Number on Page 1
<1.5MHz
1.5MHz ~ ≤ 20MHz
20MHz ~ ≤ 50MHz
50MHz ~ ≤ 100MHz
100MHz ~ 125MHz
-62ºC to + 125ºC
5 mA max. -
7 mA max. -
15 mA max. -
20 mA max. -
25 mA max. -
30 mA max. -
45/55%
<1.5MHz
1.5MHz ~ ≤ 20MHz
20MHz ~ ≤ 50MHz
50MHz ~ ≤ 75MHz
75MHz ~ ≤ 100MHz
100MHz ~ 125MHz
5 mA max. -
15 mA max. -
20 mA max. -
25 mA max. -
1.5MHz ~ ≤ 20MHz
20MHz ~ ≤ 70MHz
70MHz ~ ≤ 100MHz
100MHz ~ 125MHz
Symmetry
(50% of ouput waveform )
Rise and Fall times
Output Load (Note 1)
Output voltage (V ol)
oh/V
Enable/Disable function Pin 1
Output Current (Ioh/Iol)
Start-up time (Tstup)
200ns max. - 32.768kHz
6 ns max. - 1.000MHz ~ ≤ 20MHz
4 ns max. - 20MHz ~ ≤ 50MHz
3 ns max. - 50MHz ~ ≤ 75MHz
7 ns max. -
50pF Load
(20 ~ 40MHz) 2 ns max. - 75MHz ~ 125MHz
7 ns max. -
50pF Load
(<40MHz)
50pF max.
15pF max.
50pF max.
8 ns max. -
≤ 20MHz
5 ns max. - 20MHz ~ ≤ 50MHz
2 ns max. - 50MHz ~ 75MHz
200ns max. - 32.768kHz
6 ns max. - 1.000MHz ~ ≤ 20MHz
5 ns max. - 20MHz ~ ≤ 50MHz
3 ns max. - 50MHz ~ ≤ 75MHz
2 ns max. - 75MHz ~ 125MHz
15pF max.
6 ns max. -
≤ 20MHz
5 ns max. - 20MHz ~ ≤ 50MHz
3 ns max. - 50MHz ~ 125MHz
VIL ≤ 0.8V High Z
VIH ≥ 4.0V Active
± 16mA max.
0.9Vdd min. / 0.1Vdd max.
VIH ≥ 2.0V Active
8ms max.
Phase Noise typ.
@20.000MHz
Aging
Note 1: 50pF Load is only available up to 50MHz
VIL ≤ 0.5V High Z
10Hz
-90 dBc/Hz
100Hz
-124 dBc/Hz
1kHz
-140 dBc/Hz
10kHz
-148 dBc/Hz
100kHz -155 dBc/Hz
1MHz
-157 dBc/Hz
10MHz -158 dBc/Hz
±5ppm max. First Year
±2ppm max. Each Year Thereafter
VIH ≥ 1.75V Active
± 8mA max.
VIH ≥ 1.26V Active
QPDS-0238 (Rev -, September 2019)
Q-TECH Corporation - 10150 W. Jefferson Boulevard, Culver City 90232 - Tel: 310-836-7900 - Fax: 310-836-2157 - www.q-tech.com
2 of 8
QT735 SERIES
Q-TECH
CORPORATION
New Space Crystal Oscillator
3.2 x 5mm | 1.8V, 2.5V, 3.3V, 5Vdc | 1.000MHz to 250MHz
Electrical Performance Characteristics 25MHz to 250MHz LVDS
Output frequency range (Fo)
Supply voltage (Vdd)
Logic
Maximum Applied Voltage
(Vdd max.)
Frequency stability (∆F/∆T)
Storage temperature (Tsto)
Parameters
QT735LP
QT735NP
QT735LW
QT735NW
25.000MHz — 250.000MHz
3.3Vdc ± 5%
-0.5 to +5.0Vdc
LVPECL
¸2.5Vdc ± 5%
80.000MHz — 250.000MHz
3.3Vdc ± 5%
-0.5 to +5.0Vdc
LVDS
2.5Vdc ± 5%
Operating temperature (Topr)
Output Logic Levels
Output Logic High (Voh)
Output Logic Low (Vol)
Duty Cycle
Load
See Part Number on Page 1
See Part Number on Page 1
-62ºC to + 125ºC
Vdd-1.025 < Voh < Vdd-0.880
Vdd-1.810 < Voh < Vdd-1.620
45/55%
50Ω into Vdd-2V
600ps
Voh < 1.6 V
Vol > 0.9 V
Rise and Fall times
100Ω Differential
Start-up time (Tstup)
Current (No Load)
Enable/Disable function
(Pin 1 or Pin 2)
Phase Jitter
(12kHz - 20MHz BW)
Period Jitter Typical
RMS
Pk-Pk
Deterministic Jitter
Aging
50mA typ. | 75mA max.
10ms max.
VIH ≥ 0.7*Vdd Active
60mA max.
VIL ≤ 0.3*Vdd High Z
0.3ps nom. | 0.7ps max.
2.6ps nom.
23ps nom.
0.35ps nom. | 0.8ps max.
2.9ps nom.
25.1ps nom.
Random Jitter Typical
2.6ps nom.
<0.2ps
10 years aging included in Frequency Stability
Q-TECH Corporation - 10150 W. Jefferson Boulevard, Culver City 90232 - Tel: 310-836-7900 - Fax: 310-836-2157 - www.q-tech.com
QPDS-0238 (Rev -, September 2019)
3 of 8
QT735 SERIES
Q-TECH
CORPORATION
New Space Crystal Oscillator
3.2 x 5mm | 1.8V, 2.5V, 3.3V, 5Vdc | 1.000MHz to 250MHz

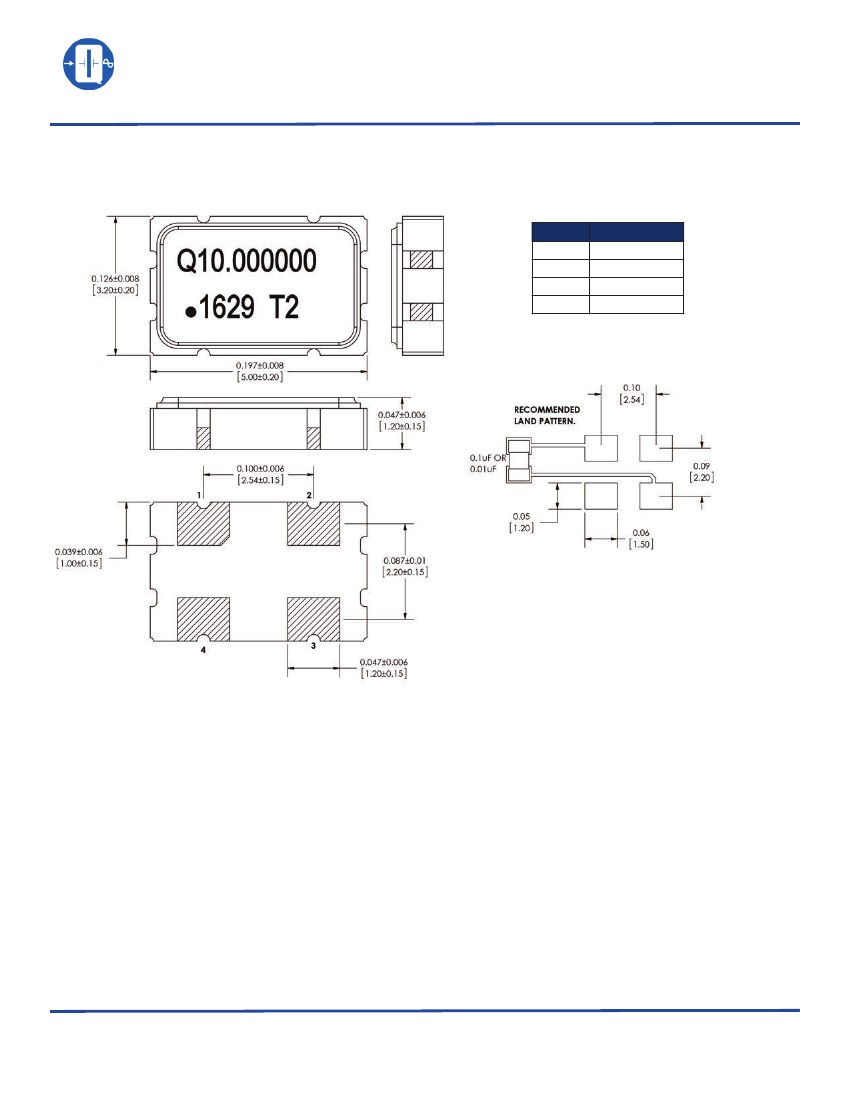

Package Outline and Pin Connections (CMOS)
Dimensions are in inches (mm)
Pin No.
1
2
3
4
Function
GND/CASE
OUTPUT
VDD
TRISTA
TE
An external bypass capacitor 0.01µF is
required between Vdd and GND
Line 1: QXXX.XXXXXX
(Q for Q-Tech, no space 9 or 10 Characters of Frequency including decimal)
Line 2: Dot (Pin 1 Indicator) + Date code (YY/WW), Internal Traceability Code
Marking
Package Information
• Termination pads (4x), Electro nickel plating 1.27µm ~ 8.89µm typ.,
with gold 0.3µm ~ 1.0µm flash plate
• Weight: 0.057g typ.
Q-TECH Corporation - 10150 W. Jefferson Boulevard, Culver City 90232 - Tel: 310-836-7900 - Fax: 310-836-2157 - www.q-tech.com
QPDS-0238 (Rev -, September 2019)
4 of 8
QT735 SERIES
Q-TECH
CORPORATION
New Space Crystal Oscillator
3.2 x 5mm | 1.8V, 2.5V, 3.3V, 5Vdc | 1.000MHz to 250MHz

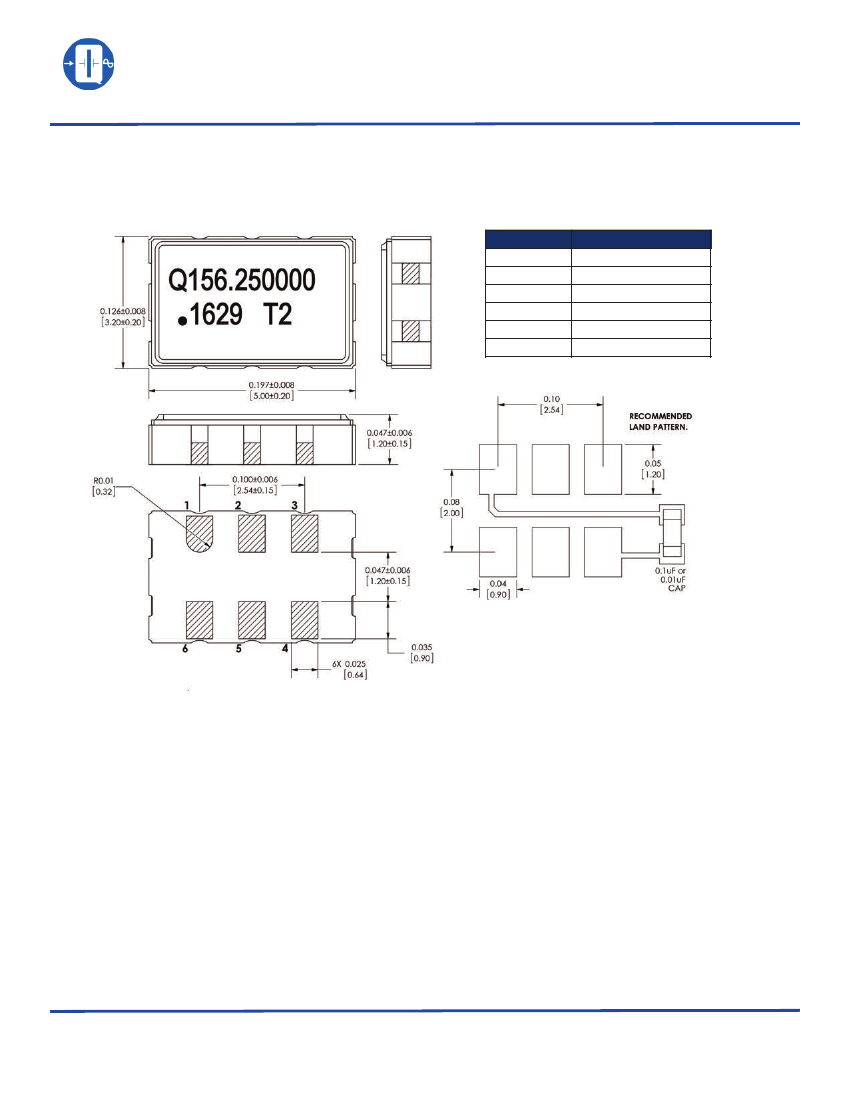

Package Outline and Pin Connections (LVDS, LVPECL)
Dimensions are in inches (mm)
Pin No.
1
2
3
4
5
6
ENABLE/DISABLE or NC
ENABLE/DISABLE or NC
GND/CASE
OUTPUT
VDD
COMP. OUTPUT
Function
An external bypass capacitor 0.01µF is
required between Vdd and GND
Line 1: QXXX.XXXXXX
(Q for Q-Tech, no space 9 or 10 Characters of Frequency including decimal)
Line 2: Dot (Pin 1 Indicator) + Date code (YY/WW), Internal Traceability Code
Marking
Package Information
• Termination pads (4x), Electro nickel plating 1.27µm ~ 8.89µm typ.,
with gold 0.3µm ~ 1.0µm flash plate
• Weight: 0.057g typ.
Q-TECH Corporation - 10150 W. Jefferson Boulevard, Culver City 90232 - Tel: 310-836-7900 - Fax: 310-836-2157 - www.q-tech.com
QPDS-0238 (Rev -, September 2019)
5 of 8
