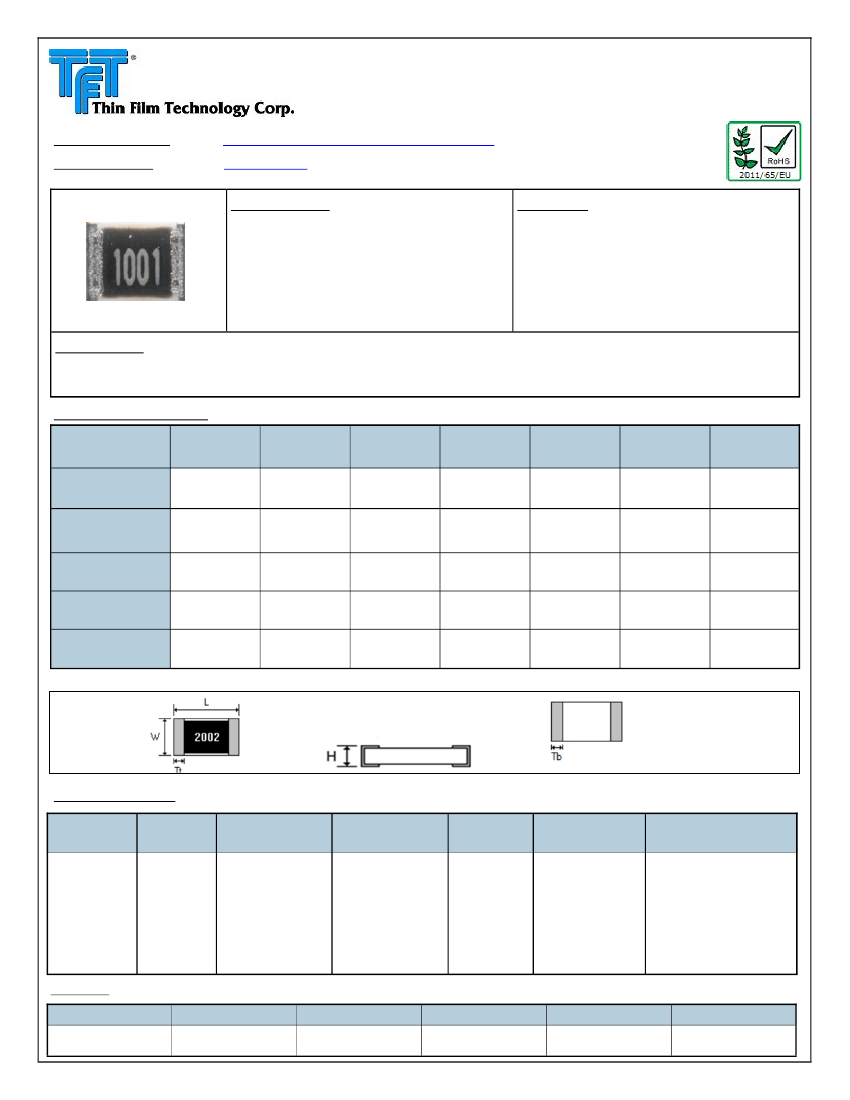

TF02M557-04 - Rev F - Page 1 of 3
Product Family:
Part Number:
High Power Thick Film Chip Resistor
TFP Series
Construction:
RoHS compliant and halogen free
High grade ceramic body
High purity alumina substrate
Reduced size of final equipment
AEC-Q200 Qualified
Anti-Sulfur
Features:
0402, 0603, 0805, 1206, 1210, 2010,
2512 sizes
Resistances from 1Ω to 1MΩ
Tolerances of ±1.0% and ±5.0%
TCR’s down to ±100ppm/°C
Description:
These Triple High Power Chip Resistors are designed for power supply, PDA, digital meters, computers, automotive,
battery, and DC-DC power conversion.
Product Dimensions:
Dimension
(Metric)
L
W
H
Tb
Tt
TFP0402
(0510)
0.039±0.002
(1.00±0.05)
0.020±0.002
(0.50±0.05)
0.014±0.002
(0.35±0.05)
0.010±0.004
(0.25±0.10)
0.008±0.004
(0.20±0.10)
TFP0603
(0816)
0.063 ± 0.004
(1.60 ± 0.10)
0.031 ± 0.004
(0.80 ± 0.10)
0.018 ± 0.006
(0.45 ± 0.15)
0.012 ± 0.006
(0.30 ± 0.15)
0.012 ± 0.004
(0.30 ± 0.10)
TFP0805
(1220)
0.079 ± 0.004
(2.00 ± 0.10)
0.049 ± 0.004
(1.25 ± 0.10)
0.020 ± 0.006
(0.50 ± 0.15)
0.016 ± 0.008
(0.40 ± 0.20)
0.016 ± 0.008
(0.40 ± 0.20)
TFP1206
(1632)
0.122 ± 0.006
(3.10 ± 0.15)
0.063± 0.006
(1.60 ± 0.15)
0.022 ± 0.004
(0.55 ± 0.10)
0.020 ± 0.010
(0.50 ± 0.25)
0.020 ± 0.010
(0.50 ± 0.25)
TFP1210
(2632)
0.122 ± 0.004
(3.10 ± 0.10)
0.102 ± 0.004
(2.60 ± 0.10)
0.022 ± 0.004
(0.55 ± 0.10)
0.020 ± 0.008
(0.50 ± 0.20)
0.020 ± 0.008
(0.50 ± 0.20)
TFP2010
(2550)
0.197 ± 0.008
(5.00 ± 0.20)
0.098 ± 0.008
(2.50 ± 0.20)
0.024 ± 0.004
(0.60 ± 0.10)
0.024± 0.010
(0.60 ± 0.25)
0.024 ± 0.010
(0.60 ± 0.25)
TFP2512
(3264)
0.248 ± 0.008
(6.30 ± 0.20)
0.122 ± 0.008
(3.10 ± 0.20)
0.024 ± 0.006
(0.60 ± 0.15)
0.071 ± 0.010
(1.80 ± 0.25)
0.024 ± 0.010
(0.60 ± 0.25)
All dimensions are shown in inches. Metric sizes are in parenthesis and shown in mm.
TOP
Part Numbering: Ex: TFHP0603R1002F-T5
Product
Designator
English
Size
Temp. Coefficient of
Resistance (TCR)
R = 100 ppm/°C
G = 150 ppm/°C
S = 200 ppm/°C
W = See Table
SIDE
BOTTOM
Resistance
Value
Resistance
Tolerance
Automotive
Grade
T&R Packaging
Quantity
-T4 = 4,000
-T5 = 5,000
-T10 = 10,000
0402 only available in 10K
PC reels, 2010 and 2512 only
available in 4K PC reels
All other sizes standard in 5K
PC reels
TFP
0402, 0603,
0805
1206, 1210,
2010, 2512
4 digits with the first 3
being significant. The
last digit specifies the
number of zeros. “R”
(TCR is dictated by
denotes decimal
resistance value.
position as
necessary.
Refer to electrical
F = ±1%
J = ±5%
A= Automotive
AEC-Q200
Leave Blank for
Non AEC-Q200
table)
Examples:
Part Number
TFP0603R1002F-T5
English Size (Metric)
0603 (1608)
TCR
(Refer to electrical table)
Resistance (ohms)
1002 = 10,000Ω
Tolerance
F= ±1%
Tape Qty
-T5 = 5,000
R = ±100ppm/°C
Thin Film Technology Corp. / 1980 Commerce Drive, North Mankato, MN 56003 (USA) / (507) 625-8445 /
www.thin-film.com
TF02M557-04 - Rev F - Page 2 of 3
Electrical Specifications:
Item
Metric Size
6432
Resistance Range (Ω)
< 10Ω 1%
TCR (ppm/°C)
≥10Ω 1%
Max. Dissipation at T
amb
=70°C
(refer to derating curve)
Max. Operation Voltage
Max. Overload Voltage
Operation Temperature
±100 (R)
1/8W
50V
100V
-200/+400 (W)
1~49.9Ω+500~
-200ppm
±150 (G)
TFP0402
1005
TFP0603
1608
TFP805
2012
TFP1206
3216
TFP1210
3225
TFP2010
5025
TFP2512
6432
E-24 Values = ±1.0% (F) or ±5.0% (J)
E-96 Values = ±1.0% (F)
1Ω to 1MΩ, plus jumper
±100 (R)
±200 (S)
±100
51~1MΩ
+100ppm
1/4W
150V
300V
-55°C ~ 155°C
1/2W
±100 (R)
1W
200V
400V
2W
300V
500V

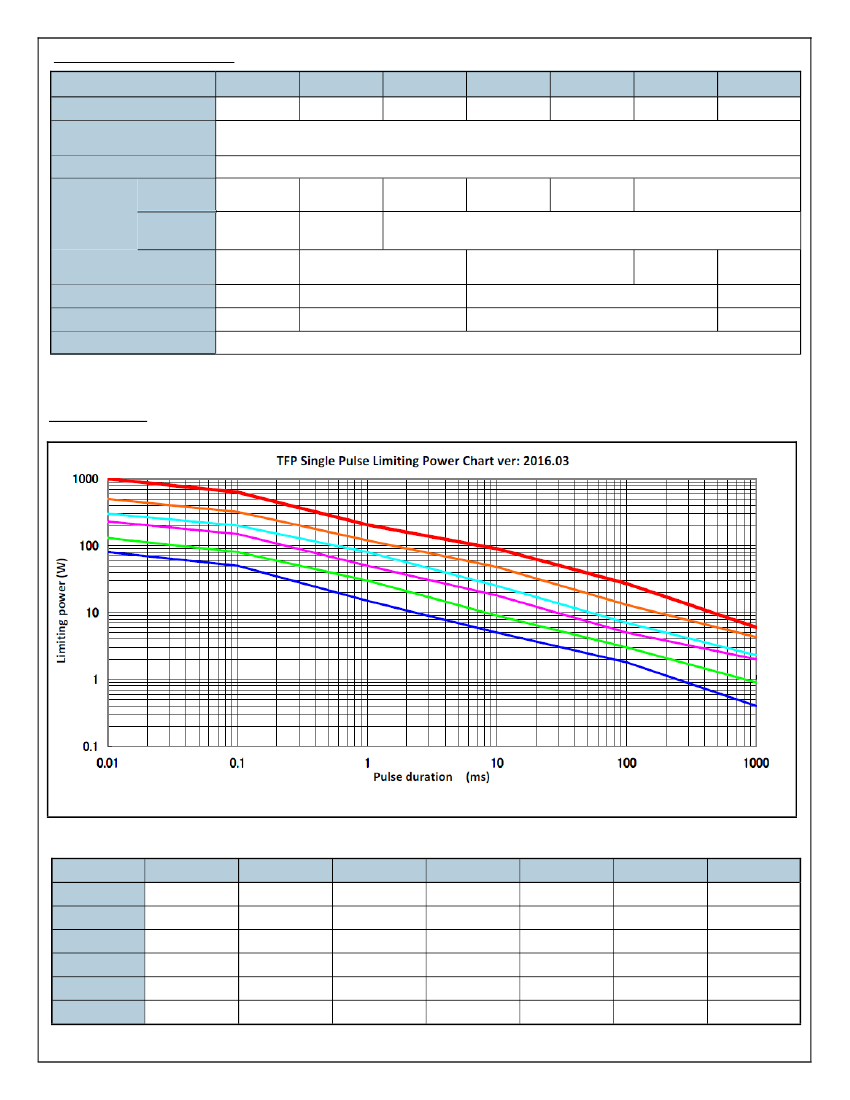

Pulse Power:
Type
TFP2512
TFP2010
TFP1210
TFP1206
TFP0805
TFP0603
Power
2W
1W
0.5W
0.5W
0.25W
0.125W
0.01ms
1000
500
300
230
130
80
0.1ms
630
320
200
150
80
50
1ms
205
120
80
50
30
15
10ms
90
48
25
18
9
5
100ms
27
13
7
5
3
1.8
1000ms
6
4.3
2.3
2
0.9
0.4
Thin Film Technology Corp. / 1980 Commerce Drive, North Mankato, MN 56003 (USA) / (507) 625-8445 /
www.thin-film.com
TF02M557-04 - Rev F - Page 3 of 3
Power Derating Curve:
Reliability Specifications:
Test
Short Time Overload
Resistance to
Soldering Heat
Load Life
Test Method
Applied voltage: 2.5X rated voltage or 2X maximum operating voltage, whichever is
less. Test duration: 5 seconds
Dip into 260°C solder bath until fully immersed
10 ±1 seconds
Test Temperature: 70°C
Applied voltage: rated voltage
Test period: 1000 hours with power cycling as follows:
90 min. power ON/30 min. power OFF,
Test Condition: 40°C/95% RH
Applied voltage: rated voltage
Test period: 1000 hours with power cycling as follows:
90 min. power ON/30 min. power OFF
Repeat 5 cycles as follows:
-55°C(30 min.) / Room temp (2 min) /
+155°C(30 min.) / Room temp (2 min)
Dip into 235°C solder bath until fully immersed (SAC solder)
2 ±0.5 seconds
Specification
1% Tol: ±(1%+0.1Ω)
5% Tol: ±(2% +0.1Ω)
1% Tol: ±(0.5%+0.01Ω)
5% Tol: ±(1% +0.01Ω)
1% Tol: ±(1%+0.1Ω)
5% Tol: ±(3% +0.1Ω)
1% Tol: ±(1%+0.1Ω)
5% Tol: ±(3% +0.1Ω)
1% Tol: ±(0.5%+0.01Ω)
5% Tol: ±(1% +0.01Ω)
Minimum 95% coverage of new
solder
Moisture Load Life
Temperature Cycle
Solderability
Thin Film Technology Corp. / 1980 Commerce Drive, North Mankato, MN 56003 (USA) / (507) 625-8445 /
www.thin-film.com
