BD075-26-A-1-L-F datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> BD075-26-A-1-L-F

Preview

BD075-26-A-1-L-F: DescriptionBoard Connector, 26 Contact(s), 1 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Black Insulator,; CategoryThe connector The connector; File Size160KB，1 Pages; ManufacturerGlobal Connector Technology; Environmental Compliance

Download Datasheet Parametric View All

BD075-26-A-1-L-F Overview

Board Connector, 26 Contact(s), 1 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Black Insulator,

BD075-26-A-1-L-F Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	313747865
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	Tube with film pakaging
body width	0.071 inch
subject depth	0.181 inch
body length	1.314 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	300VAC V
Durability	100 Cycles
maximum insertion force	2.0016 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER
Manufacturer's serial number	BD075
Plug contact pitch	0.05 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.6924 mm
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	26
Evacuation force-minimum value	.15012 N

Preview

Download Datasheet

View All

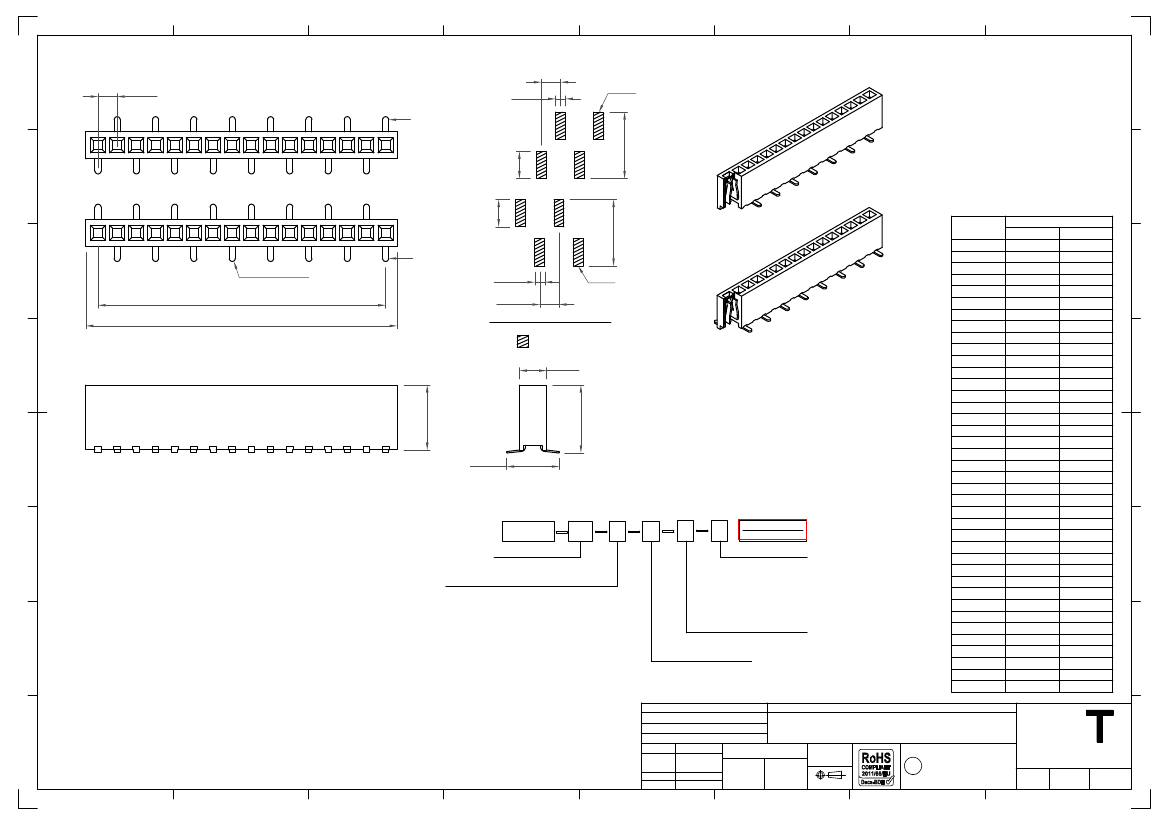

H

1.27

NO. 1

B1 TYPE

0.65

No.1

1.80

4.50

G

1.80

B1 TYPE

B2 TYPE

NO. 1

Pin 0.42 x 0.15

CONTACTS

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

F

0.65

1.27

No.1

A±0.25

B±0.38

B2 TYPE

Recommended PCB Layout

(Tolerance:±0.05mm)

Solder Area

E

1.80

D

3.50

Ordering Grid

C

Specifications

规格

:

BD075

No. of Contacts

02 to 40

XX

X

L

X

Request Samples

and Quotation

B

A

Current Rating

电流额定值:

1 amp

Contact Plating

Insulator Resistance

绝缘电阻值:

1000 MΩ min.

A = Gold Flash All Over

(Standard)

Dielectric Withstanding

耐电压:

AC 300 V

B = Selective Gold Flash Contact Area/

Contact Resistance

接触电阻值:

20mΩ max.

Tin On Tail

Operating Temperature

工½温度:

-40°C to +105°C

C = Tin All Over

Contact Material

端子物料:

Copper Alloy

G = 10µ" Gold Contact Area/Tin On Tail

I = 30µ" Gold Contact Area/Tin On Tail

Insulator Material

绝缘½物料

:

Polyester

聚酯

, LCP, UL 94 V-0

Soldering Process

可焊性

: LCP -

IR Reflow

回流焊

: 260°C for 10 sec.

Wave

波峰焊

: 250°C for 5-10 sec

Manual Solder

人工焊接

: 350°C for 3-5 sec

Mates with

配套之母座

(subject to pin length

在端子长度适合的条件下

):

BD021

BD045

BD100

BD105

BD110

Packing Options

C = Tape & Reel with Film

(Standard)

B = Tape & Reel with Cap

D = Tube

E = Tube with Cap

F = Tube with Film

Insulator Material

L = LCP

Type

1 = B1 Type

2 = B2 Type

Part Number

Product Description

DIMENSIONS

A

B

1.27

2.89

2.54

4.16

3.81

5.43

5.08

6.70

6.35

7.97

7.62

9.24

8.89

10.51

10.16

11.78

11.43

13.05

12.70

14.32

13.97

15.59

15.24

16.86

16.51

18.13

17.78

19.40

19.05

20.67

20.32

21.94

21.59

23.21

22.86

24.48

24.13

25.75

25.40

27.02

26.67

28.29

27.94

29.56

29.21

30.83

30.48

32.10

31.75

33.37

33.02

34.64

34.29

35.91

35.56

37.18

36.83

38.45

38.10

39.72

39.37

40.99

40.64

42.26

41.91

43.53

43.18

44.80

44.45

46.07

45.72

47.34

46.99

48.61

48.26

49.88

49.53

51.15

4.30

4.60

4.50

BD075

Drawing Date

28th December 2007

By

Detail

Revision

Date

AJO

BD075

G PCN

G

08/09/14

Length

1.27mm Pitch Socket, Single Row,

Surface Mount, Top Entry

Tolerances

(Except as Noted)

Angle

1

2

3

4

5

X.° ± 5°

X. ± 0.30

X.X° ± 2°

X.X ± 0.20

X.XX° ± 1°

X.XX ± 0.15

X.XXX ± 0.10 X.XXX° ± 0.5°

Units:

Metric (mm)

C

7

3rd Angle Projection

This drawing is confidential and

copyright of Global Connector

Technology, Ltd (GCT).

This drawing must not be copied

or disclosed without written

consent. E & OE

Global Connector Technology

GC

Drawn By

LYH

www.gct.co

Not to

Scale

Sheet No.

1/1

6

8
