5459-3141 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 5459-3141

5459-3141: DescriptionBoard Connector, 14 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking; CategoryThe connector The connector; File Size72KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

5459-3141 Overview

Board Connector, 14 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking

5459-3141 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Conexcon Group
Reach Compliance Code	unknown
body width	0.28 inch
subject depth	0.498 inch
body length	0.997 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	600VAC V
Durability	50 Cycles
maximum insertion force	3.9198 N
Insulation resistance	1000000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	5459
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.126 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	14
Evacuation force-minimum value	.278 N
Base Number Matches	1

Preview

Download Datasheet

View All

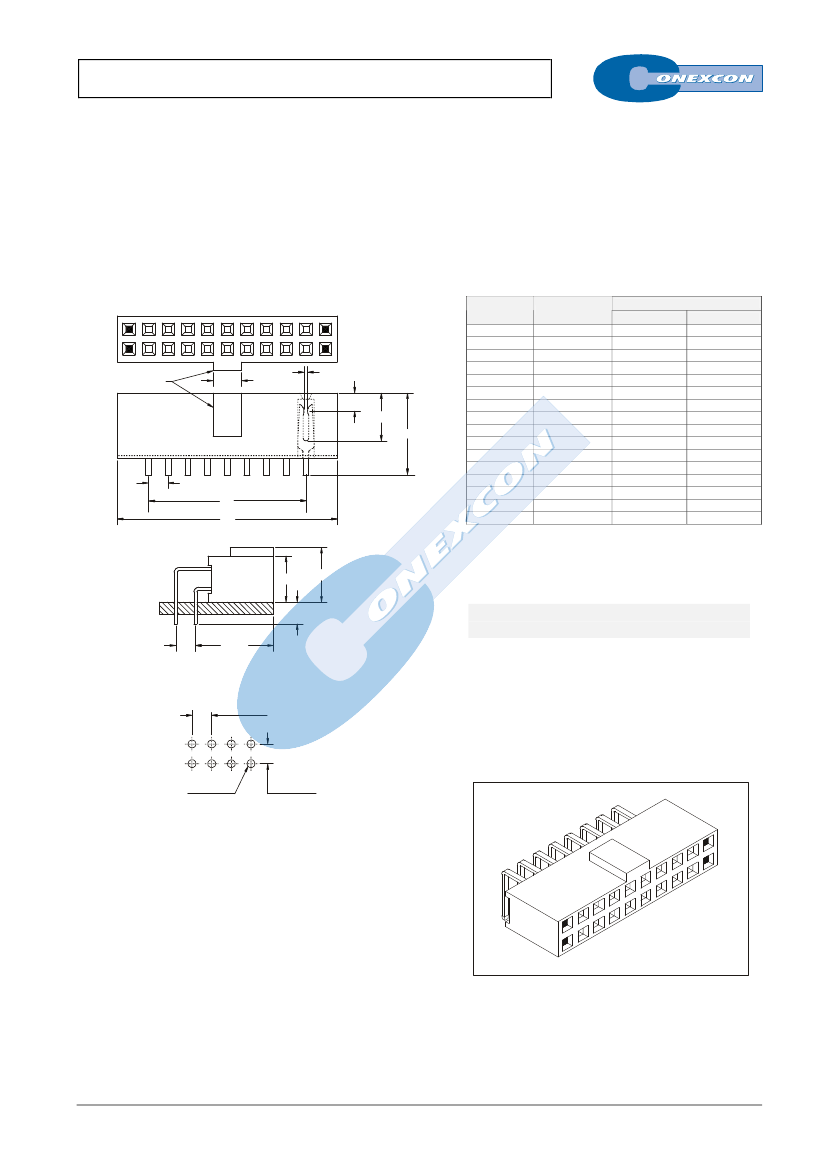

DUAL ROW POLARISED FEMALE HEADER

5459 SERIES.

2.54 x 2.54mm(0.100 X 0.100”). Right Angle.

Features











Available in 6, 8, 10, 14, 16, 20, 24, 26, 30, 34, 40, 44, 48,

50, 60 and 64 circuits

Mates with 5446, 5447 series and 2.54mm dual row

and 0.64mm square pin headers

Insulator Material: P.B.T. UL 94V-0



High quality dual beam phosphor bronze contacts

Different plating options are available

With polarisation bump

For other options consult the Sales Office

Dimensional Information

Ordering and Dimensional Information

Dimensions

5,08(0,200)

7,62(0,300)

10,16(0,400)

15,24(0,600)

17,78(0,700)

22,86(0,900)

27,94(1,100)

30,48(1,200)

35,56(1,400)

40,64(1,600)

48,26(1,900)

53,34 (2.100)

58,42 (2.300)

60,96(2,400)

73,66(2,900)

78,74(3,100)

12,62(0,497)

15,16(0,597)

17,70(0,697)

22,78(0,897)

25,32(0,997)

30,40(1,197)

35,48(1,397)

38,02(1,497)

43,10(1,697)

48,18(1,897)

55,80(2,197)

60,88(2,397)

65,96 (2.597)

68,50(2,697)

81,20(3,197)

86,28(3,397)

Circuit Size

Part Number

5459-T061

5459-T081

5459-T101

5459-T141

5459-T161

5459-T201

5459-T241

5459-T261

5459-T301

5459-T341

5459-T401

5459-T441

5459-T481

5459-T501

5459-T601

5459-T641

Polarisation

Bump

3.70

0.44 +0.03

0.00

1.95

6.20

12.64

2.54

6.00

7.10

T = Contact Plating

3.2



T =

Tin plated

T =

Gold flash over 50µ” nickel

Recommended Finish

T =

15µ” gold over 50µ” nickel

T =

30µ” gold over 50µ” nickel

T =

13.

Selective gold flash over 50µ” nickel

T =

15.

15µ” selective gold over 50µ” nickel

T =

16.

30µ” selective gold over 50µ” nickel

2.54

10.10

RECOMMENDED HOLE PATTERN

2.54±0.05

.100±.002

1.02±0.05

.040±.002

2.54±0.05

.100±.002

FULL LINE CATALOGUE

E-XX
