3TNF-30/76-N/N datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> 3TNF-30/76-N/N

3TNF-30/76-N/N: DescriptionTunable BRF, 3 Section(s) Min, 3 Section(s) Max, 30MHz Min, 76MHz Max,; CategoryAnalog mixed-signal IC filter; File Size149KB，1 Pages; ManufacturerK&L Microwave Inc

Download Datasheet Parametric Compare View All

3TNF-30/76-N/N Overview

Tunable BRF, 3 Section(s) Min, 3 Section(s) Max, 30MHz Min, 76MHz Max,

3TNF-30/76-N/N Parametric

Parameter Name	Attribute value
Maker	K&L Microwave Inc
Reach Compliance Code	compliant
3dB bandwidth	3.3%
average input power	50 W
filter type	TUNABLE BRF
high	70 mm
input connector	N FEMALE
Input/output impedance	50 OHM
Maximum insertion loss	0.5 dB
length	167 mm
Installation type	PANEL MOUNT
Number of partitions-max	3
Number of partitions - minimum	3
Output connector	N FEMALE
physical size	L167.0XB137.0XH70.0 (mm)/L6.575XB5.394XH2.756 (inch)
tuning control	KNOB CONTROL
maximum tuning frequency	76 MHz
minimum tuning frequency	30 MHz
voltage standing wave ratio	1.5
width	137 mm
Base Number Matches	1

Preview

Download Datasheet

View All

•

Available From Stock

Features:

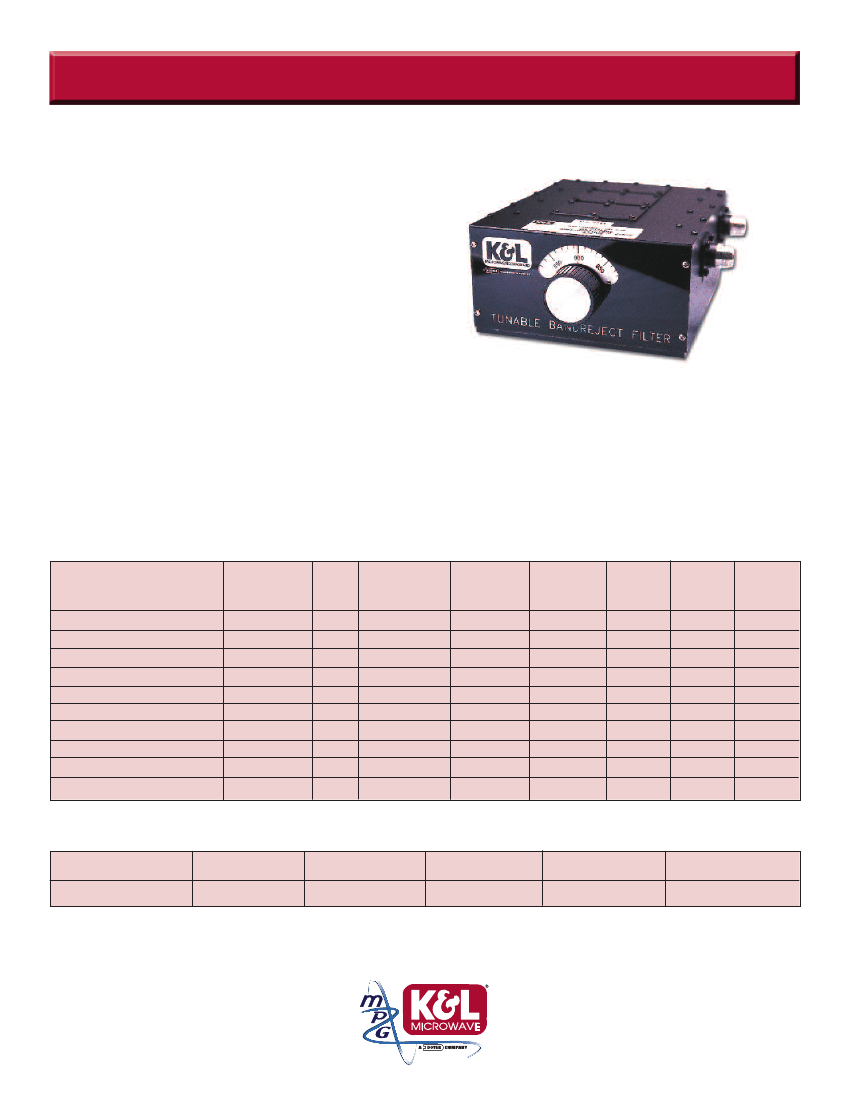

Tunable Bandreject (Notch) Filters — TNF Series

•

Manual Frequency Selection

•

Direct-readout Center Frequency Dial

•

Digitally Controlled Versions Available

•

Greater than 45 dB Attenuation Typical

•

ATE Labs

•

Wireless Communications

•

Surveillance

Applications:

Specifications:

Frequency

Range

(MHz)

3TNF-30/76-N/N

30-76

3TNF-50/100-N/N

50-100

3TNF-100/200-N/N

100-200

3TNF-200/400-N/N

200-400

3TNF-250/500-N/N

250-500

3TNF-500/1000-N/N

500-1000

3TNF-800/1000-0.2-N/N

800-1000

3TNF-1000/2000-N/N

1000-2000

3TNF-1500/3000-N/N

1500-3000

5TNF-1700/2000-0.1-N/N 1700-2000

K&L Model

40 dB Min. Typ. Notch Length

3 dB BW

Width

Height

Range (MHz) BW (KHz)

Depth Inch/mm Inch/mm Inch/mm

(Relative) (Relative)

(Relative)

3 Sec.

1-2.5

100

50 dB

6.56/167 5.38/137 2.75/70

3 Sec.

3-6

300

50 dB

6.56/167 5.38/137 2.75/70

3 Sec.

3-6

300

50 dB

6.56/167 5.38/137 2.75/70

3 Sec.

3-7

300

50 dB

6.56/167 5.38/137 2.75/70

3 Sec.

3-7

300

50 dB

6.56/167 5.38/137 2.75/70

3 Sec.

6-16

400

45 dB

6.56/167 5.38/137 2.75/70

3 Sec.

1.6-2.6

N/A

40 dB

6.56/167 5.38/137 2.75/70

3 Sec.

9-24

400

45 dB

6.56/167 2.88/73 2.75/70

3 Sec.

10-27

800

50 dB

5.36/136 2.81/71 2.53/64

5 Sec.

3-3.6

N/A

30 dB

7.39/188 3.31/84 2.75/70

Type

Passband VSWR

1.5:1

Insertion Loss

< 0.5 dB

Impedance

50 Ohms

Power Handling

(within Passband)

Dial Accuracy

+/- 1%

RF Connector

Type N

50 Watts CW

Custom configurations and ruggedized versions also available. Contact the factory for custom requirements.

Phone: 410-749-2424 • FAX: 443-260-2268

Email: sales@klmicrowave.com

www.klmicrowave.com

www.klfilterwizard.com

2250 Northwood Drive

Salisbury, MD 21804

3TNF-30/76-N/N Related Products

	3TNF-30/76-N/N	3TNF-50/100-N/N	3TNF-800/1000-0.2-N/N	3TNF-500/1000-N/N	3TNF-1000/2000-N/N	3TNF-200/400-N/N	3TNF-250/500-N/N	3TNF-100/200-N/N	5TNF-1700/2000-0.1-N/N
Description	Tunable BRF, 3 Section(s) Min, 3 Section(s) Max, 30MHz Min, 76MHz Max,	Tunable BRF, 3 Section(s) Min, 3 Section(s) Max, 50MHz Min, 100MHz Max,	Tunable BRF, 3 Section(s) Min, 3 Section(s) Max, 800MHz Min, 1000MHz Max,	Tunable BRF, 3 Section(s) Min, 3 Section(s) Max, 500MHz Min, 1000MHz Max,	Tunable BRF, 3 Section(s) Min, 3 Section(s) Max, 1000MHz Min, 2000MHz Max,	Tunable BRF, 3 Section(s) Min, 3 Section(s) Max, 200MHz Min, 400MHz Max,	Tunable BRF, 3 Section(s) Min, 3 Section(s) Max, 250MHz Min, 500MHz Max,	Tunable BRF, 3 Section(s) Min, 3 Section(s) Max, 100MHz Min, 200MHz Max,	Tunable BRF, 3 Section(s) Min, 3 Section(s) Max, 1700MHz Min, 2000MHz Max,
Maker	K&L Microwave Inc	K&L Microwave Inc	K&L Microwave Inc	K&L Microwave Inc	K&L Microwave Inc	K&L Microwave Inc	K&L Microwave Inc	K&L Microwave Inc	K&L Microwave Inc
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
3dB bandwidth	3.3%	6%	0.2%	1.2%	0.9%	1.5%	1.2%	3%	0.17%
average input power	50 W	50 W	50 W	50 W	50 W	50 W	50 W	50 W	50 W
filter type	TUNABLE BRF	TUNABLE BRF	TUNABLE BRF	TUNABLE BRF	TUNABLE BRF	TUNABLE BRF	TUNABLE BRF	TUNABLE BRF	TUNABLE BRF
high	70 mm	70 mm	70 mm	70 mm	70 mm	70 mm	70 mm	70 mm	70 mm
input connector	N FEMALE	N FEMALE	N FEMALE	N FEMALE	N FEMALE	N FEMALE	N FEMALE	N FEMALE	N FEMALE
Input/output impedance	50 OHM	50 OHM	50 OHM	50 OHM	50 OHM	50 OHM	50 OHM	50 OHM	50 OHM
Maximum insertion loss	0.5 dB	0.5 dB	0.5 dB	0.5 dB	0.5 dB	0.5 dB	0.5 dB	0.5 dB	0.5 dB
length	167 mm	167 mm	167 mm	167 mm	167 mm	167 mm	167 mm	167 mm	188 mm
Installation type	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT
Number of partitions-max	3	3	3	3	3	3	3	3	3
Number of partitions - minimum	3	3	3	3	3	3	3	3	3
Output connector	N FEMALE	N FEMALE	N FEMALE	N FEMALE	N FEMALE	N FEMALE	N FEMALE	N FEMALE	N FEMALE
physical size	L167.0XB137.0XH70.0 (mm)/L6.575XB5.394XH2.756 (inch)	L167.0XB137.0XH70.0 (mm)/L6.575XB5.394XH2.756 (inch)	L167.0XB137.0XH70.0 (mm)/L6.575XB5.394XH2.756 (inch)	L167.0XB137.0XH70.0 (mm)/L6.575XB5.394XH2.756 (inch)	L167.0XB137.0XH70.0 (mm)/L6.575XB5.394XH2.756 (inch)	L167.0XB137.0XH70.0 (mm)/L6.575XB5.394XH2.756 (inch)	L167.0XB137.0XH70.0 (mm)/L6.575XB5.394XH2.756 (inch)	L167.0XB137.0XH70.0 (mm)/L6.575XB5.394XH2.756 (inch)	L188.0XB84.0XH70.0 (mm)/L7.402XB3.307XH2.756 (inch)
tuning control	KNOB CONTROL	KNOB CONTROL	KNOB CONTROL	KNOB CONTROL	KNOB CONTROL	KNOB CONTROL	KNOB CONTROL	KNOB CONTROL	KNOB CONTROL
maximum tuning frequency	76 MHz	100 MHz	1000 MHz	1000 MHz	2000 MHz	400 MHz	500 MHz	200 MHz	2000 MHz
minimum tuning frequency	30 MHz	50 MHz	800 MHz	500 MHz	1000 MHz	200 MHz	250 MHz	100 MHz	1700 MHz
voltage standing wave ratio	1.5	1.5	1.5	1.5	1.5	1.5	1.5	1.5	1.5
width	137 mm	137 mm	137 mm	137 mm	137 mm	137 mm	137 mm	137 mm	84 mm
Base Number Matches	1	1	1	1	1	1	1	1	-
