Board Connector, 8 Contact(s), Male, Right Angle, Solder Terminal, M2x0.4, Black Insulator
CategoryThe connector    The connector
File Size96KB,1 Pages
ManufacturerHarwin
Websitehttp://www.harwin.com/
Environmental Compliance
Download Datasheet Parametric View All

M80-5L10642M7-01-333-01-333 Overview

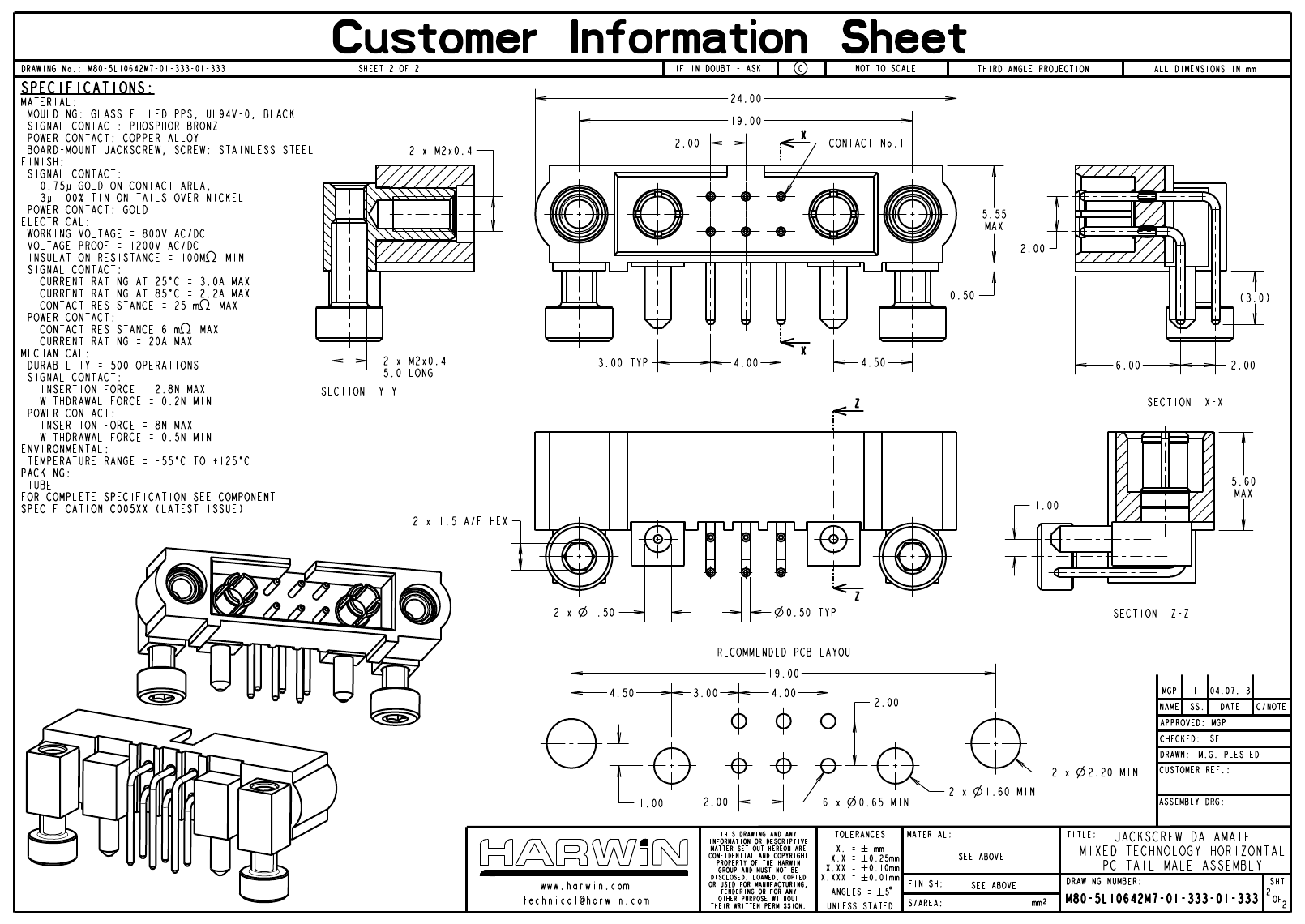

Board Connector, 8 Contact(s), Male, Right Angle, Solder Terminal, M2x0.4, Black Insulator

M80-5L10642M7-01-333-01-333 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerHarwin
Reach Compliance Codecompliant
Board mount optionsHOLE .086-.098
body width0.238 inch
body length0.944 inch
Connector typeBOARD CONNECTOR
Contact arrangementS6P2
Contact to complete cooperationNOT SPECIFIED
Contact completed and terminatedNOT APPLICABLE
Contact point genderMALE
Contact materialNOT SPECIFIED
Contact resistance25 mΩ
Contact styleHYBRID
Durability500 Cycles
maximum insertion force2.78 N
Insulation resistance100000000 Ω
Insulator colorBLACK
insulator materialGLASS FILLED POLYPHENYLENE SULPHIDE
Mixed contactsYES
Installation option 1M2X0.4
Installation option 2JACKSCREW
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Plating thickness30u inch
Rated current (signal)3 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.118 inch
Termination typeSOLDER
Total number of contacts8
Evacuation force-minimum value.199882 N
Base Number Matches1
