LPO4812-473KSD datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> LPO4812-473KSD

LPO4812-473KSD: DescriptionGeneral Purpose Inductor, 47uH, 10%, 1 Element, Ferrite-Core, SMD, 1918,; CategoryPassive components inductor; File Size214KB，2 Pages; ManufacturerCOILCRAFT; Websitehttp://www.coilcraft.com/

Download Datasheet Parametric View All

LPO4812-473KSD Overview

General Purpose Inductor, 47uH, 10%, 1 Element, Ferrite-Core, SMD, 1918,

LPO4812-473KSD Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Objectid	1667058012
package instruction	CHIP
Reach Compliance Code	compliant
Country Of Origin	Mainland China
ECCN code	EAR99
YTEOL	5.03
uppercase and lowercase codes	1918
structure	Rectangular
core material	FERRITE
DC Resistance	1.3 Ω
Nominal inductance(L)	47 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e0
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package height	1.2 mm
Package length	4.83 mm
Package form	SMT
Package width	4.6 mm
method of packing	TR, Embossed Plastic, 13 Inch
Maximum rated current	0.5 A
Guideline	AEC-Q200
self resonant frequency	28 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal surface	Tin/Lead (Sn63Pb37)
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	10%

Preview

Download Datasheet

View All

Web

page

Sample

& buy

Tools &

software

Support

& FAQ

Document 276-1

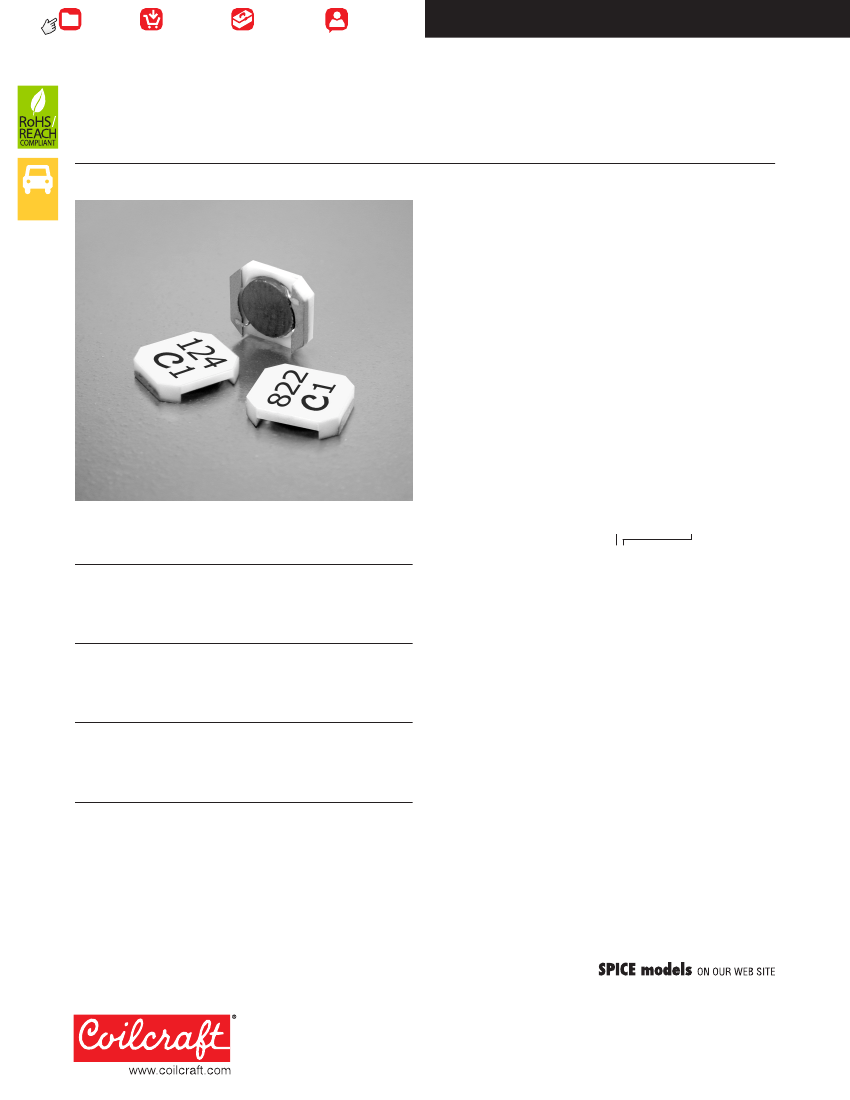

SMT Power Inductors – LPO4812

Q200

85°C

AEC

• Very low profile - only 1.2 mm high!

• Handles up to 1.3 Amps saturating current

Designer’s Kit C357

contains 3 each of all values

Core material

Ferrite

Core and winding loss

See www.coilcraft.com/coreloss

Terminations

RoHS compliant silver-palladium-platinum-glass frit.

Other terminations available at additional cost.

Weight

53 – 61 mg

Ambient temperature

–40°C to +85°C with

Irms

current

Maximum part temperature

+125°C (ambient + temp rise)

Storage temperature

Component: –40°C to +125°C

Tape and reel packaging: –40°C to +80°C

Resistance to soldering heat

Max three 40 second reflows at

+260°C, parts cooled to room temperature between cycles

Moisture Sensitivity Level (MSL)

1 (unlimited floor life at <30°C /

85% relative humidity)

Failures in Time (FIT) / Mean Time Between Failures (MTBF)

38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332

Packaging

1000/7″ reel; 3500/13″ reel Plastic tape: 12 mm wide,

0.23 mm thick, 8 mm pocket spacing, 1.3 mm pocket depth

Recommended pick and place nozzle

OD: 4.6 mm; ID:

≤

2.3 mm

PCB washing

Tested to MIL-STD-202 Method 215 plus an additional

aqueous wash. See

Doc787_PCB_Washing.pdf.

Part number

(µH)

DCR

SRF

max

typ

Isat

Irms

(Ohms) (MHz) (A) (A)

0.055

0.080

0.090

0.120

0.155

0.225

0.270

0.300

0.460

0.640

0.850

1.30

1.80

2.60

4.20

5.50

270

220

170

140

110

1.30

1.00

0.80

0.70

0.60

0.45

0.40

0.32

0.28

0.22

0.20

0.16

0.13

0.10

0.09

0.85

0.80

0.78

0.77

0.76

0.72

0.59

0.54

0.50

0.39

0.32

0.26

0.24

1. When ordering, please specify

termination

and

packaging

codes:

LPO4812-473MLC

Termination: L

= RoHS compliant silver-palladium-platinum-glass frit

Special order:

= RoHS tin-silver-copper (95.5/4/0.5)

= non-RoHS tin-lead (63/37).

Packaging: C

= 7″ machine-ready reel. EIA-481 embossed plastic

tape (1000 parts per full reel). Quantities less than

full reel available: in tape (not machine ready) or with

leader and trailer ($25 charge).

= 13″ machine-ready reel. EIA-481 embossed plastic

tape (3500 parts per full reel).

= Less than full reel. In an effort to simplify our part

numbering system, Coilcraft is eliminating the need

for multiple packaging codes. When ordering, simply

change the last letter of your part number from B to C.

2. Inductance tested at 100 kHz, 0.1 Vrms 0 Adc.

3. DC current at which the inductance drops 10% (typ) from its value

without current.

4. Current that causes a 40°C temperature rise from 25°C ambient.

5. Electrical specifications at 25°C.

Refer to Doc 362 “Soldering Surface Mount Components” before soldering.

LPO4812-102ML_

1.0 ±20%

LPO4812-152ML_

1.5 ±20%

LPO4812-222ML_

2.2 ±20%

LPO4812-332ML_

3.3 ±20%

LPO4812-472ML_

4.7 ±20%

LPO4812-682ML_

6.8 ±20%

LPO4812-822ML_

8.2 ±20%

LPO4812-103KL_

10.±10%

LPO4812-153KL_

15.±10%

LPO4812-223KL_

22.±10%

LPO4812-333KL_

33.±10%

LPO4812-473KL_

47.±10%

LPO4812-683KL_

68.±10%

LPO4812-104KL_ 100.±10%

LPO4812-154KL_ 150.±10%

LPO4812-224KL_ 220.±10%

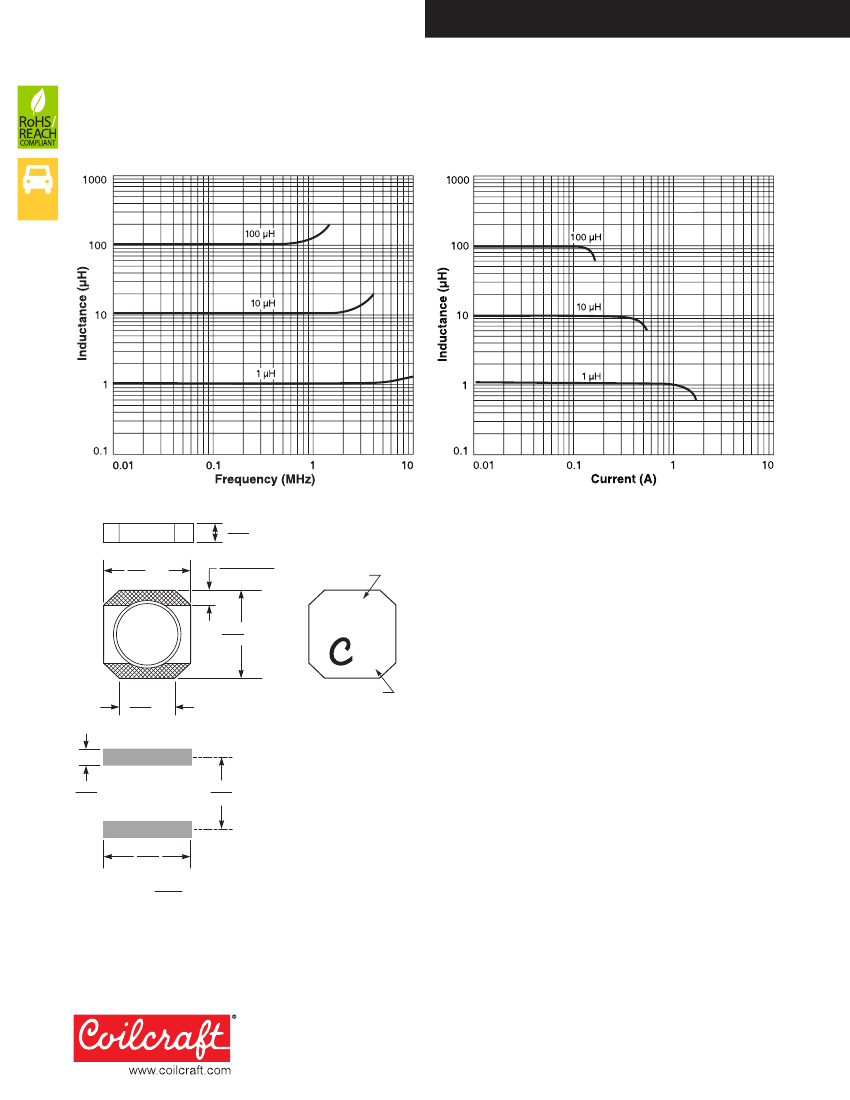

+1-847-639-6400 sales@coilcraft.com

+44-1236-730595 sales@coilcraft-europe.com

Taiwan

+886-2-2264 3646 sales@coilcraft.com.tw

China

+86-21-6218 8074 sales@coilcraft.com.cn

Singapore

+ 65-6484 8412 sales@coilcraft.com.sg

Document 276-1

Revised 06/07/17

This product may not be used in medical or high

risk applications without prior Coilcraft approval.

Specification subject to change without notice.

Please check web site for latest information.
