ZX54HCTLS365AJ+ datasheet, PDF

ZX54HCTLS365AJ+: DescriptionBus Driver, 1-Func, 6-Bit, True Output, CMOS, CDIP16; Categorylogic logic; File Size220KB，3 Pages; ManufacturerRadiation Semiconductor Corp

Download Datasheet Parametric View All

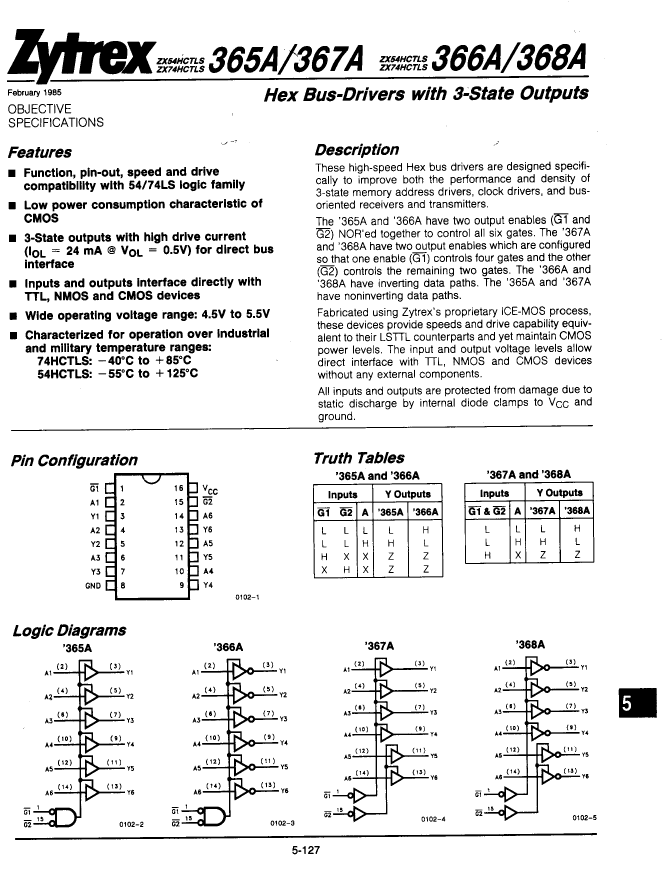

ZX54HCTLS365AJ+ Overview

Bus Driver, 1-Func, 6-Bit, True Output, CMOS, CDIP16

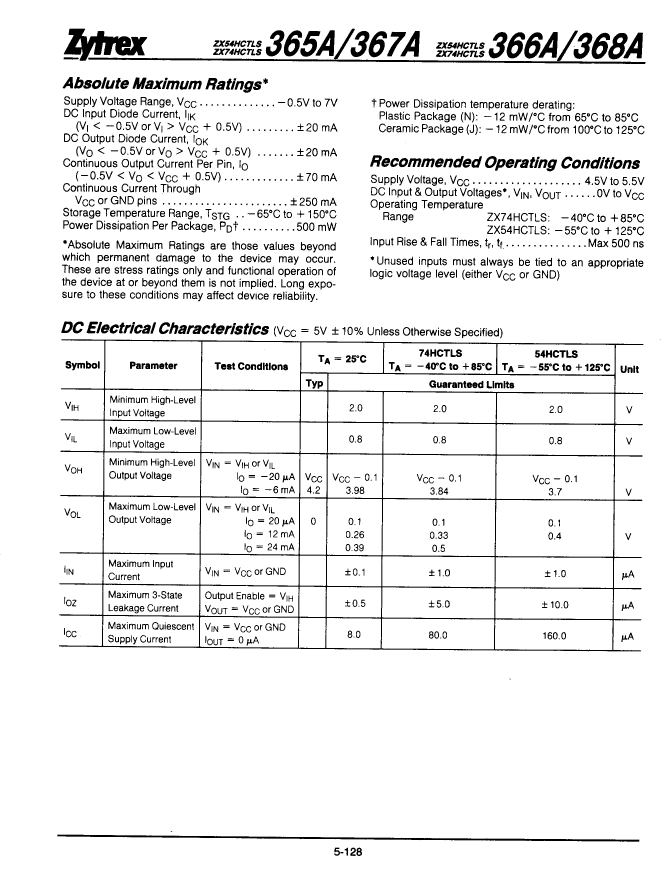

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	100633793
package instruction	DIP, DIP16,.3
Reach Compliance Code	unknown
Control type	ENABLE LOW
JESD-30 code	R-XDIP-T16
JESD-609 code	e0
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS DRIVER
MaximumI(ol)	0.024 A
Number of digits	6
Number of functions	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V

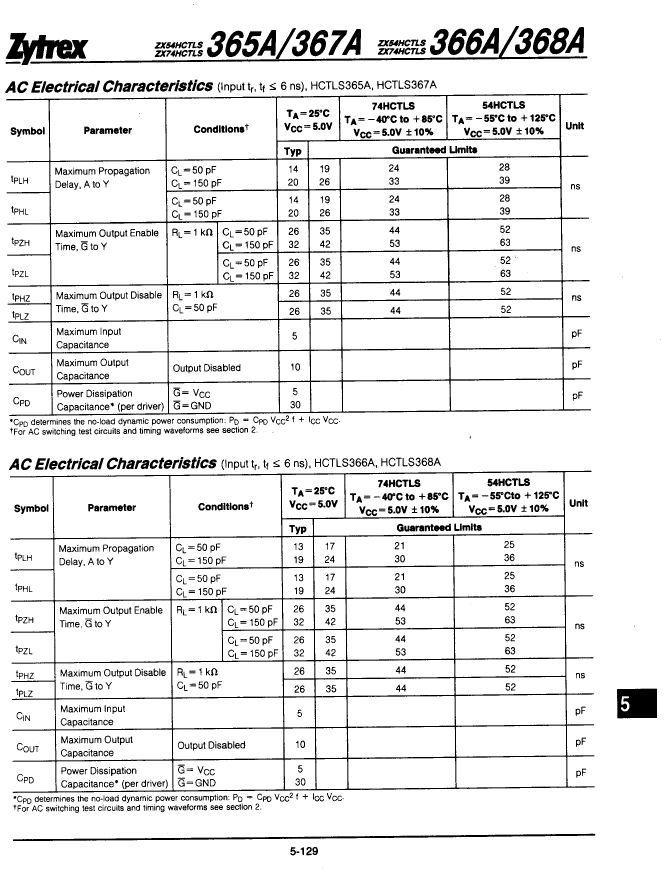

Prop。Delay @ Nom-Sup	52 ns
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
