M85049/34-16X datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> Connector bracket> M85049/34-16X

Preview

M85049/34-16X: DescriptionConnector Accessory; CategoryThe connector Connector bracket; File Size87KB，1 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

M85049/34-16X Overview

Connector Accessory

M85049/34-16X Parametric

Parameter Name	Attribute value
Maker	Glenair
Reach Compliance Code	compliant
Connector bracket type	CONNECTOR ACCESSORY
Manufacturer's serial number	M85049/34
Base Number Matches	1

Preview

Download Datasheet

View All

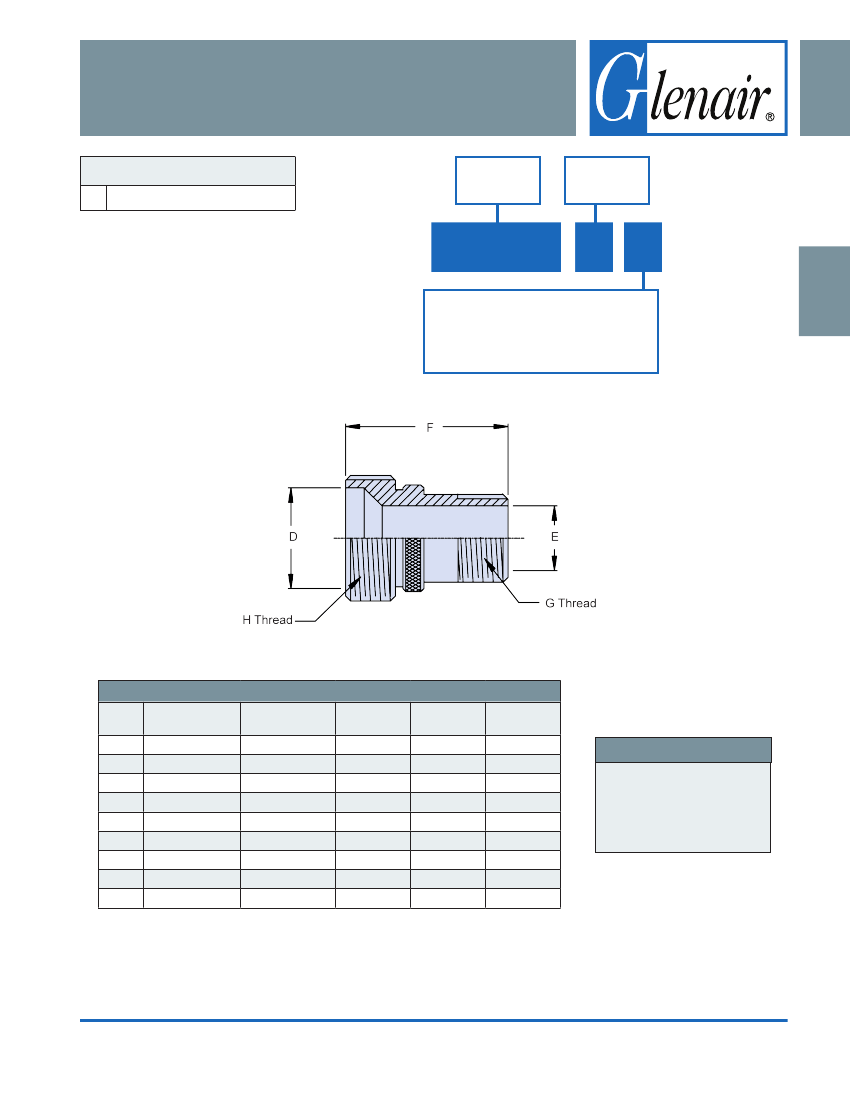

for Use with MS3114 and MS3124 Connectors

CONNECTOR DESIGNATOR:

D

MIL-DTL-26482 Series I

Basic

Part Number

Shell Size

(Table I)

For Use With

MS3114 and MS3124

Connectors Only

M85049/34

-

12

W

Finish

W

= 1000 Hr. Cadmium Olive Drab

X

= Nickel Fluorocarbon Polymer

Y

= Pure Dense Electrodeposited Aluminum

Z

= Zinc Nickel, Black

B

TABLE I: Shell Size and Dimensions

Shell

Size

8

10

12

14

16

18

20

22

24

G Thread

UNEF Class 2A

.4375 - 28

.5625 - 24

.6875 - 24

.8125 - 20

.9375 - 20

1.0625 - 18

1.1875 - 18

1.3125 - 18

1.4375 - 18

H Thread

UNEF Class 2A

.625 - 24

.750 - 20

.875 - 20

1.000 - 20

1.125 - 18

1.250 - 18

1.375 - 18

1.500 - 18

1.625 - 18

D

Dia

.500 (12.7)

.609 (15.5)

.734 (18.6)

.859 (21.8)

.969 (24.6)

1.109 (28.2)

1.219 (31.0)

1.344 (34.1)

1.469 (37.3)

E

Dia

.327 (8.3)

.444 (11.3)

.569 (14.5)

.673 (17.1)

.798 (20.3)

.915 (23.2)

1.030 (26.2)

1.155 (29.3)

1.280 (32.5)

F

Max

.812 (20.6)

.906 (23.0)

.937 (23.8)

2.

1.

APPLICATION NOTES

For complete dimensions

see the applicable Military

Specification.

Metric dimensions (mm)

are in parentheses.

Dimensions in inches (millimeters) and are subject to change without notice.

U.S. CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

B-59

E-Mail: sales@glenair.com

AS85049

AS85049/34

Straight Adapter and Extender
