BL2-75VTT-50PCU: DescriptionBoard Connector, 50 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Surface Mount Terminal, Plug; CategoryThe connector The connector; File Size158KB，1 Pages; ManufacturerMPE-Garry GmbH; Environmental Compliance

Download Datasheet Parametric View All

BL2-75VTT-50PCU Overview

Board Connector, 50 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Surface Mount Terminal, Plug

BL2-75VTT-50PCU Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1166360144
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ROHS COMPLIANT
Board mount options	POSITIONING PIN
body width	0.2 inch
subject depth	0.295 inch
body length	2.52 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Tin (Sn)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V
insulator material	THERMOPLASTIC
JESD-609 code	e3
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.207 mm
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	50

Preview

Download Datasheet

View All

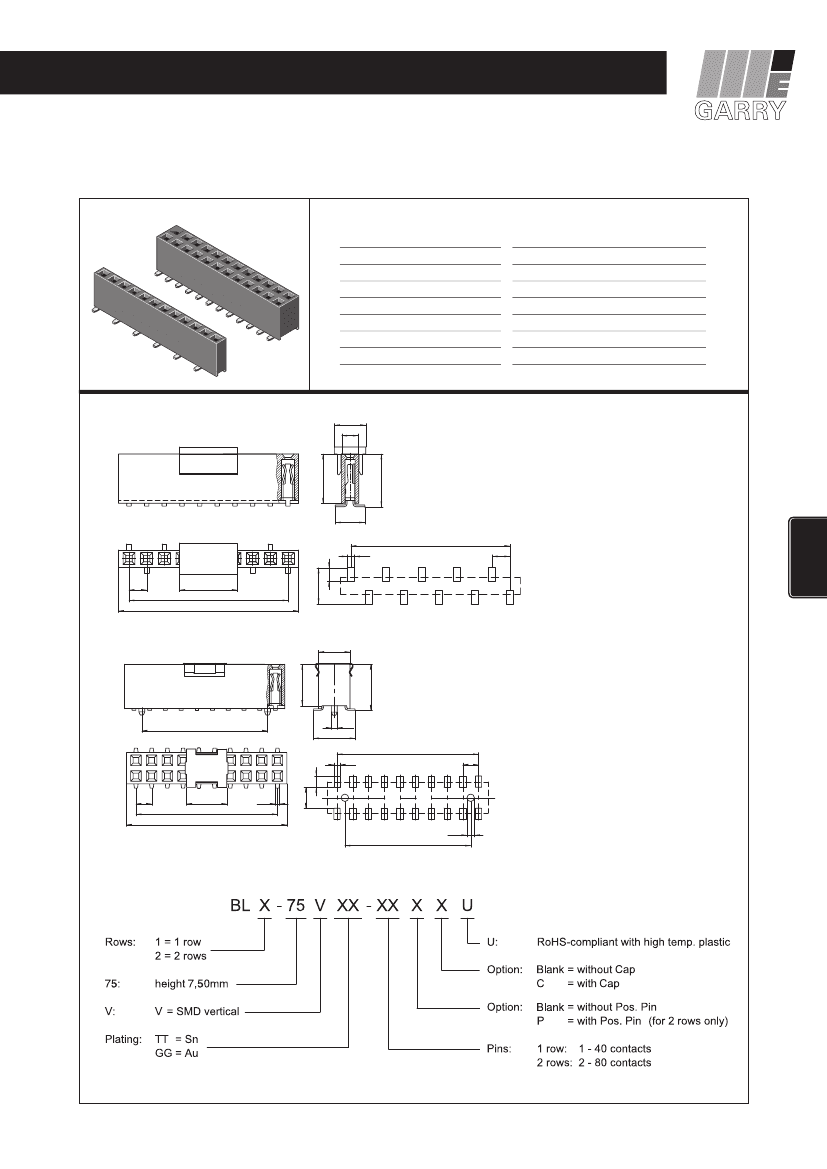

PRODUCT GROUP 7 -

MALE AND FEMALE HEADER 2,54/2,50/2,39 mm

FEMALE HEADER „SMD“

ID: 098

BL 1-75VXX / BL 2-75VXX

Series 401

TECHNICAL DATA

Pitch

Insulating Material

Contact Material

Rated Current

Rated Voltage

Withstanding Voltage

Operating Temperature

Maximum Soldering Temperature

2,54 mm

high temp. thermoplast UL94V-0

phosphor bronze

3 Amp.

250 V

AC/DC

1000 V

AC

for one minute

-40°C to +105°C

260°C for 10 seconds

4,50

2,50

7,10

4,05

7,50

2,54 x (No. of contacts - 1)

1,0

1,91

2,54

C

2,54 x (No. of contacts -1)

0,5 + 2,54 x No. of contacts

Note: Dim. C = 5,8mm for 2,3,5,7,9,... pins

Dim. C = 8,3mm for 4,6,8,10,... pins

5,20

P.C.B. Layout

5,08

6,70

2,54 x (No. of contacts / 2 - 2)

ˉ0,95

6,70

2,54 x (No. of contacts / 2 - 1)

1,0

1,8

2,54

C

2,54 x (No. of contacts / 2 -1)

0,5 + 2,54 x (No. of contacts / 2)

0,64

3,4

7,45

Note: Dim. C = 3,5mm for 4 - 8 pins

Dim. C = 6,5mm for 8 - 10 pins

ˉ1,2

2,54 x (No. of contacts / 2 - 2)

P.C.B. Layout

All dimensions in mm.

Other dimensions upon request.

MPE-Garry GmbH · Schäfflerstraße 13 · 87629 Füssen · Germany · Tel.: +49 (0) 83 62 / 91 56-0 · Fax.: +49 (0) 83 62 / 91 56-520

e-mail: vk@mpe-connector.de · www.mpe-connector.de
