P4C164L-80SC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> P4C164L-80SC

P4C164L-80SC: DescriptionStandard SRAM, 8KX8, 80ns, CMOS, PDSO28, 0.450 INCH, PLASTIC, SOIC-28; Categorystorage storage; File Size114KB，11 Pages; ManufacturerPyramid Semiconductor Corporation; Websitehttp://www.pyramidsemiconductor.com/

Download Datasheet Parametric Compare View All

P4C164L-80SC Overview

Standard SRAM, 8KX8, 80ns, CMOS, PDSO28, 0.450 INCH, PLASTIC, SOIC-28

P4C164L-80SC Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Pyramid Semiconductor Corporation
Parts packaging code	SOIC
package instruction	SOP,
Contacts	28
Reach Compliance Code	compliant
ECCN code	EAR99
Maximum access time	80 ns
JESD-30 code	R-PDSO-G28
JESD-609 code	e0
length	18.0086 mm
memory density	65536 bit
Memory IC Type	STANDARD SRAM
memory width	8
Number of functions	1
Number of terminals	28
word count	8192 words
character code	8000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	8KX8
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum seat height	2.5908 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	TIN LEAD
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	8.5979 mm
Base Number Matches	1

Preview

Download Datasheet

View All

P4C164L

LOW POWER 8K x 8

STATIC CMOS RAM

FEATURES

Current (Commercial/Industrial)

— Operating: 55 mA

— CMOS Standby: 3 µA

Access Times

—80/100 (Commercial or Industrial)

Single 5 Volts ±10% Power Supply

Easy Memory Expansion Using CE

, CE

and

Inputs

Common Data I/O

Three-State Outputs

Fully TTL Compatible Inputs and Outputs

Advanced CMOS Technology

Automatic Power Down

Packages

—28-Pin 300 and 600 mil DIP

—28-Pin 330 mil SOP

DESCRIPTION

The P4C164L is a 64K density low power CMOS

static RAM organized as 8Kx8. The CMOS memory

requires no clocks or refreshing, and has equal access

and cycle times. Inputs are fully TTL-compatible. The

RAM operates from a single 5V±10% tolerance power

supply.

Access times of 80 ns and 100 ns are available. CMOS

is utilized to reduce power consumption to a low level.

The P4C164L device provides asynchronous operation

with matching access and cycle times.

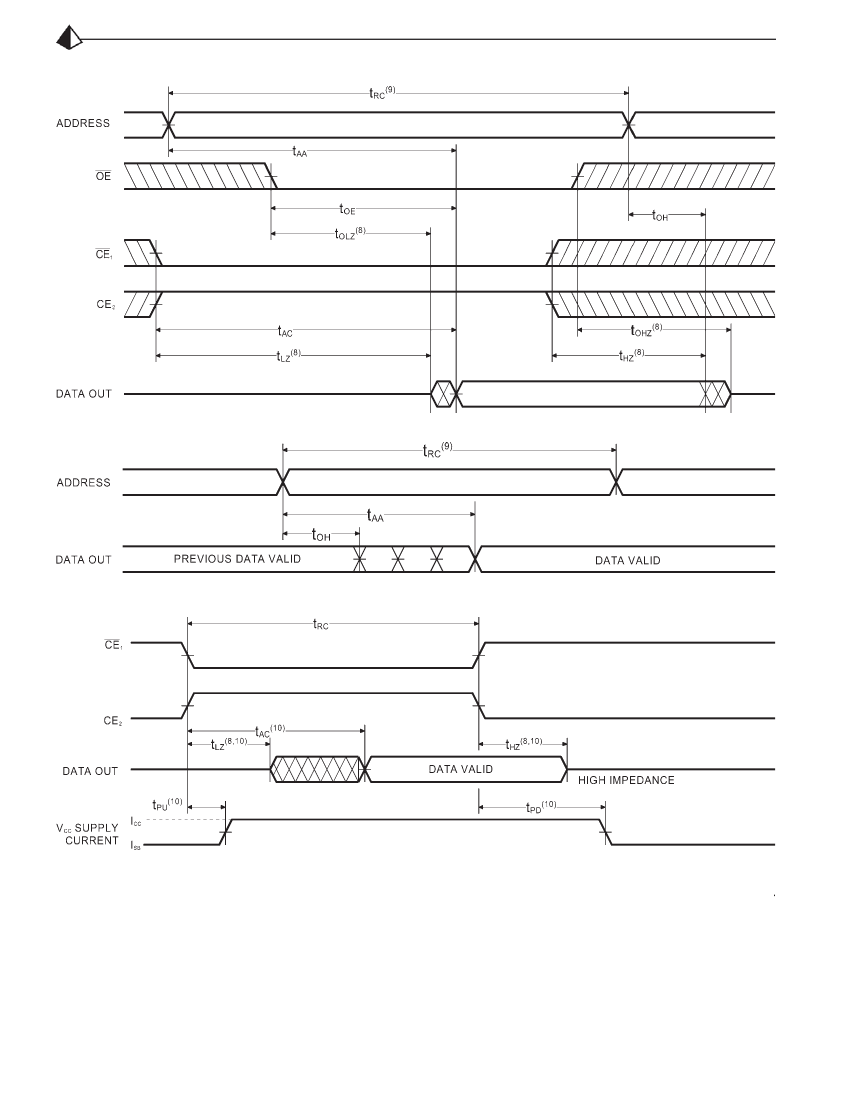

Memory locations are specified on address pins A

. Reading is accomplished by device selection (CE

low CE

high) and output enabling (OE) while write en-

able (WE) remains HIGH. By presenting the address

under these conditions, the data in the addressed memory

location is presented on the data input/output pins. The

input/output pins stay in the HIGH Z state when either

is HIGH or

or CE

is LOW.

Package options for the P4C164L include 28-pin 300 and

600 mil DIP and 28-pin 330 mil SOP packages.

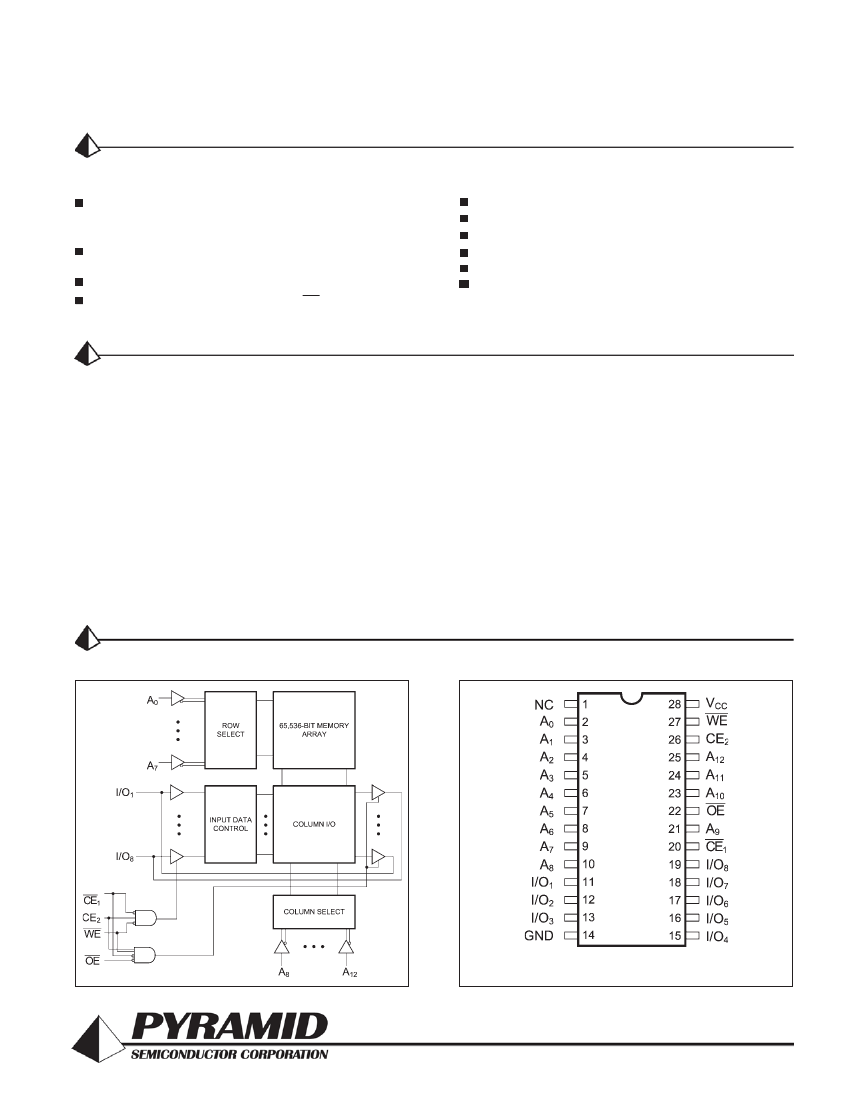

FUNCTIONAL BLOCK DIAGRAM

PIN CONFIGURATION

DIP (P5, P6), SOP (S5)

TOP VIEW

Document #

SRAM116

REV B

Revised June 2007

P4C164L-80SC Related Products

	P4C164L-80SC	P4C164L-100P3C	P4C164L-80SI	P4C164L-80P6I	P4C164L-80P3I	P4C164L-80P6C	P4C164L-100P3I	P4C164L-80P3C	P4C164L-100SI	P4C164L-100SC
Description	Standard SRAM, 8KX8, 80ns, CMOS, PDSO28, 0.450 INCH, PLASTIC, SOIC-28	Standard SRAM, 8KX8, 100ns, CMOS, PDIP28, 0.300 INCH, PLASTIC, DIP-28	Standard SRAM, 8KX8, 80ns, CMOS, PDSO28, 0.450 INCH, PLASTIC, SOIC-28	Standard SRAM, 8KX8, 80ns, CMOS, PDIP28, 0.600 INCH, PLASTIC, DIP-28	Standard SRAM, 8KX8, 80ns, CMOS, PDIP28, 0.300 INCH, PLASTIC, DIP-28	Standard SRAM, 8KX8, 80ns, CMOS, PDIP28, 0.600 INCH, PLASTIC, DIP-28	Standard SRAM, 8KX8, 100ns, CMOS, PDIP28, 0.300 INCH, PLASTIC, DIP-28	Standard SRAM, 8KX8, 80ns, CMOS, PDIP28, 0.300 INCH, PLASTIC, DIP-28	Standard SRAM, 8KX8, 100ns, CMOS, PDSO28, 0.450 INCH, PLASTIC, SOIC-28	Standard SRAM, 8KX8, 100ns, CMOS, PDSO28, 0.450 INCH, PLASTIC, SOIC-28
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	SOIC	DIP	SOIC	DIP	DIP	DIP	DIP	DIP	SOIC	SOIC
package instruction	SOP,	DIP,	SOP,	DIP,	DIP,	DIP,	DIP,	DIP,	SOP,	0.450 INCH, PLASTIC, SOIC-28
Contacts	28	28	28	28	28	28	28	28	28	28
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum access time	80 ns	100 ns	80 ns	80 ns	80 ns	80 ns	100 ns	80 ns	100 ns	100 ns
JESD-30 code	R-PDSO-G28	R-PDIP-T28	R-PDSO-G28	R-PDIP-T28	R-PDIP-T28	R-PDIP-T28	R-PDIP-T28	R-PDIP-T28	R-PDSO-G28	R-PDSO-G28
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0	e0
length	18.0086 mm	34.8615 mm	18.0086 mm	36.322 mm	34.8615 mm	36.322 mm	34.8615 mm	34.8615 mm	18.0086 mm	18.0086 mm
memory density	65536 bit	65536 bit	65536 bit	65536 bit	65536 bit	65536 bit	65536 bit	65536 bit	65536 bit	65536 bit
Memory IC Type	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM
memory width	8	8	8	8	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1	1	1	1	1
Number of terminals	28	28	28	28	28	28	28	28	28	28
word count	8192 words	8192 words	8192 words	8192 words	8192 words	8192 words	8192 words	8192 words	8192 words	8192 words
character code	8000	8000	8000	8000	8000	8000	8000	8000	8000	8000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	85 °C	85 °C	85 °C	70 °C	85 °C	70 °C	85 °C	70 °C
organize	8KX8	8KX8	8KX8	8KX8	8KX8	8KX8	8KX8	8KX8	8KX8	8KX8
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	DIP	SOP	DIP	DIP	DIP	DIP	DIP	SOP	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	SMALL OUTLINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	SMALL OUTLINE	SMALL OUTLINE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.5908 mm	5.334 mm	2.5908 mm	5.08 mm	5.334 mm	5.08 mm	5.334 mm	5.334 mm	2.5908 mm	2.5908 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	YES	NO	NO	NO	NO	NO	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	COMMERCIAL	INDUSTRIAL	COMMERCIAL	INDUSTRIAL	COMMERCIAL
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD
Terminal form	GULL WING	THROUGH-HOLE	GULL WING	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	GULL WING	GULL WING
Terminal pitch	1.27 mm	2.54 mm	1.27 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	8.5979 mm	7.62 mm	8.5979 mm	15.24 mm	7.62 mm	15.24 mm	7.62 mm	7.62 mm	8.5979 mm	8.5979 mm
Maker	Pyramid Semiconductor Corporation	Pyramid Semiconductor Corporation	Pyramid Semiconductor Corporation	Pyramid Semiconductor Corporation	Pyramid Semiconductor Corporation	Pyramid Semiconductor Corporation	Pyramid Semiconductor Corporation	Pyramid Semiconductor Corporation	-	Pyramid Semiconductor Corporation
Base Number Matches	1	1	1	1	1	1	1	1	1	-
