AEM, Inc.
Multilayer Ferrite Inductors
Features
•
•
•
•
Monolithic structure for closed magnetic path eliminating crosstalk
and providing high reliability in wide temperature and humidity
range
Standard EIA/EIAJ chip sizes such as 0603/1608, 0805/2012, and
1206/3216
Superior termination bonding strength
Nickel barrier with solder overplated termination offering excellent
solderability and solder leach resistance, suitable for both wave and
reflow soldering processes
Operating Temperature
-25ºC — +85ºC
Product Identification
MCI 0603 J 152 K T - T
(1) (2) (3) (4) (5) (6) (7)
(1) Series code:
MCI: Multilayer Ferrite Inductor
(2) Dimensions: L x W inches
The first two digits: L (length)
The last two digits: W (width)
(3) Characteristic code: H, J
(4) Value code: Inductance (nH)
The first two digits are significant. The last
digit specifies the number of zeros to follow.
(5) Tolerance code:
K = ±10%
M = ±20%
(6) Package code:
T = Tape & Reel
B = Bulk
(7) Termination type code:
T = 100% Sn Plated (Lack of this code
defaults to Sn/Pb plated termination)
Applications
•
Prevention of electromagnetic interference to signal for high density
circuits in disk drives, personal computers, measuring equipment,
and telephone equipment
Recommended PC Board Land Patterns
CHIP SIZE
EIA/EIAJ
0603(1608)
0805(2012)
1206(3216)
L
INCH (mm)
0.102 (2.60)
0.118 (3.00)
0.173 (4.40)
G
INCH (mm)
0.022 (0.55)
0.026 (0.66)
0.059 (1.50)
H
NCH (mm)
0.037 (0.94)
0.057 (1.45)
0.071 (1.80)
Shape and Dimensions
G
H
SILVER
METALLIZATION
T
SOLDER
W
NICKEL
L
L
ELECTRODE
BW
CHIP SIZE
EIA/EIAJ
0603/1608
LENGTH (L)
INCH (mm)
0.063 ± 0.006
(1.60 ± 0.15)
WIDTH (W)
INCH (mm)
0.031 ± 0.006
(0.80 ± 0.15)
THICKNESS (T)
INCH (mm)
0.031 ± 0.006
(0.80 ± 0.15)
<2.7µH
0.035 ± 0.008
(0.90 ± 0.20)
≥2.7µH
0.049 ± 0.008
(1.25 ± 0.20)
0.043 ± 0.08
(1.10 ± 0.20)
TERMINATION (BW)
INCH (mm)
0.014 ± 0.006
(0.36 ± 0.15)
0805/2012
0.079 ± 0.008
(2.00 ± 0.20)
0.049 ± 0.008
(1.25± 0.20)
0.020 ± 0.010
(0.51 ± 0.25)
1206/3216
0.126 ± 0.008
(3.20 ± 0.20)
0.063 ± 0.008
(1.60 ± 0.20)
0.020 ± 0.010
(0.51 ± 0.25)
23
11525 Sorrento Valley Road, San Diego, CA 92121, U.S.A.
www.aem-usa.com
Phone: (858)481-0210, Fax: (858)481-1123
AEM, Inc.
MCI Series (General Use)
AEM Part
Number
MCI0603H470
MCI0603H680
MCI0603H820
MCI0603H101
MCI0603H121
MCI0603H151
MCI0603H181
MCI0603H221
MCI0603H271
MCI0603H331
MCI0603H391
MCI0603H471
MCI0603H561
MCI0603H681
MCI0603H821
MCI0603J102
MCI0603J122
MCI0603J152
MCI0603J182
MCI0603J222
MCI0603J272
MCI0603J332
MCI0603J392
MCI0603J472
MCI0603J562
MCI0603J682
MCI0603J822
MCI0603J103
MCI0603J123
L
µH
0.047
0.068
0.082
0.10
0.12
0.15
0.18
0.22
0.27
0.33
0.39
0.47
0.56
0.68
0.82
1.0
1.2
1.5
1.8
2.2
2.7
3.3
3.9
4.7
5.6
6.8
8.2
10
12
Tolerance
Min. Q
Test Frequency
MHz
50
50
50
25
25
25
25
25
25
25
25
25
25
25
25
10
10
10
10
10
10
10
10
10
4
4
4
2
2
Min. SRF
MHz
260
250
245
240
205
180
165
150
136
125
110
105
95
90
85
75
65
60
55
50
45
40
35
33
22
20
18
17
15
Max. R
DC
Ω
Max.
I
A
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.035
0.035
0.035
0.035
0.035
0.035
0.025
0.025
0.025
0.025
0.015
0.015
0.015
0.015
0.015
0.005
0.005
0.005
0.003
0.003
M
M
M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
10
10
10
15
15
15
15
15
15
15
15
15
15
15
15
35
35
35
35
35
35
35
35
35
35
35
35
30
30
0.30
0.30
0.30
0.50
0.50
0.60
0.60
0.80
0.80
0.85
1.00
1.35
1.55
1.70
2.10
0.60
0.80
0.80
0.95
1.15
1.35
1.55
1.70
2.10
1.55
1.70
2.10
1.85
2.10
Other values may be available upon request.
Please add tolerance, packaging and termination type codes when ordering.
24
11525 Sorrento Valley Road, San Diego, CA 92121, U.S.A.
www.aem-usa.com
Phone: (858)481-0210, Fax: (858)481-1123
AEM, Inc.
MCI Series (General Use)
AEM Part
Number
MCI0805H470
MCI0805H680
MCI0805H820
MCI0805H101
MCI0805H121
MCI0805H151
MCI0805H181
MCI0805H221
MCI0805H271
MCI0805H331
MCI0805H391
MCI0805H471
MCI0805H561
MCI0805H681
MCI0805H821
MCI0805J102
MCI0805J122
MCI0805J152
MCI0805J182
MCI0805J222
MCI0805J272
MCI0805J332
MCI0805J392
MCI0805J472
MCI0805J562
MCI0805J682
MCI0805J822
MCI0805J103
L
µH
0.047
0.068
0.082
0.1
0.12
0.15
0.18
0.22
0.27
0.33
0.39
0.47
0.56
0.68
0.82
1.0
1.2
1.5
1.8
2.2
2.7
3.3
3.9
4.7
5.6
6.8
8.2
10
Tolerance
M
M
M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
Min. Q
15
15
15
20
20
20
20
20
20
20
25
25
25
25
25
45
45
45
45
45
45
45
45
45
50
50
50
50
Test Frequency
MHz
50
50
50
25
25
25
25
25
25
25
25
25
25
25
25
10
10
10
10
10
10
10
10
10
4
4
4
2
Min. SRF
MHz
320
280
255
235
220
200
185
170
150
145
135
125
115
105
100
75
65
60
55
50
45
41
38
35
32
29
26
24
Max. R
DC
Ω
Max.
I
A
0.30
0.30
0.30
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.20
0.20
0.15
0.15
0.15
0.05
0.05
0.05
0.05
0.03
0.03
0.03
0.03
0.03
0.015
0.015
0.015
0.015
0.20
0.20
0.20
0.30
0.30
0.40
0.40
0.50
0.50
0.55
0.65
0.65
0.75
0.80
1.00
0.40
0.50
0.50
0.60
0.65
0.75
0.80
0.90
1.00
0.90
1.00
1.10
1.15
Other values may be available upon request.
Please add tolerance, packaging and termination type codes when ordering.
25
11525 Sorrento Valley Road, San Diego, CA 92121, U.S.A.
www.aem-usa.com
Phone: (858)481-0210, Fax: (858)481-1123
AEM, Inc.
MCI Series (General Use)
AEM Part
Number
MCI1206H470
MCI1206H680
MCI1206H101
MCI1206H121
MCI1206H151
MCI1206H181
MCI1206H221
MCI1206H271
MCI1206H331
MCI1206H391
MCI1206H471
MCI1206H561
MCI1206H681
MCI1206H821
MCI1206J102
MCI1206J122
MCI1206J152
MCI1206J182
MCI1206J222
MCI1206J272
MCI1206J332
MCI1206J392
MCI1206J472
MCI1206J562
MCI1206J682
MCI1206J822
MCI1206J103
MCI1206J123
MCI1206J153
MCI1206J183
MCI1206J223
MCI1206J273
MCI1206J333
L
µH
0.047
0.068
0.1
0.12
0.15
0.18
0.22
0.27
0.33
0.39
0.47
0.56
0.68
0.82
1
1.2
1.5
1.8
2.2
2.7
3.3
3.9
4.7
5.6
6.8
8.2
10
12
15
18
22
27
33
Tolerance
M
M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
K, M
Min. Q
20
20
20
20
20
20
20
20
20
25
25
25
25
25
45
45
45
45
45
45
45
45
45
50
50
50
50
50
30
30
30
30
30
Test Frequency
MHz
50
50
25
25
25
25
25
25
25
25
25
25
25
25
10
10
10
10
10
10
10
10
10
4
4
4
2
2
1
1
1
1
0.4
Min. SRF
MHz
320
280
235
220
200
185
170
150
145
135
125
115
105
100
75
65
60
55
50
45
41
38
35
32
29
26
24
22
19
18
16
14
13
Max. R
DC
Ω
Max.
I
A
0.30
0.30
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.20
0.20
0.15
0.15
0.15
0.10
0.10
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.025
0.025
0.025
0.025
0.015
0.005
0.005
0.005
0.005
0.005
0.15
0.25
0.25
0.30
0.30
0.40
0.40
0.50
0.60
0.50
0.60
0.70
0.80
0.90
0.40
0.50
0.50
0.50
0.60
0.60
0.70
0.80
0.85
0.90
0.90
0.90
1.00
1.05
0.70
0.70
0.90
0.90
1.05
Other values may be available upon request.
Please add tolerance, packaging and termination type codes when ordering.
26
11525 Sorrento Valley Road, San Diego, CA 92121, U.S.A.
www.aem-usa.com
Phone: (858)481-0210, Fax: (858)481-1123
AEM, Inc.

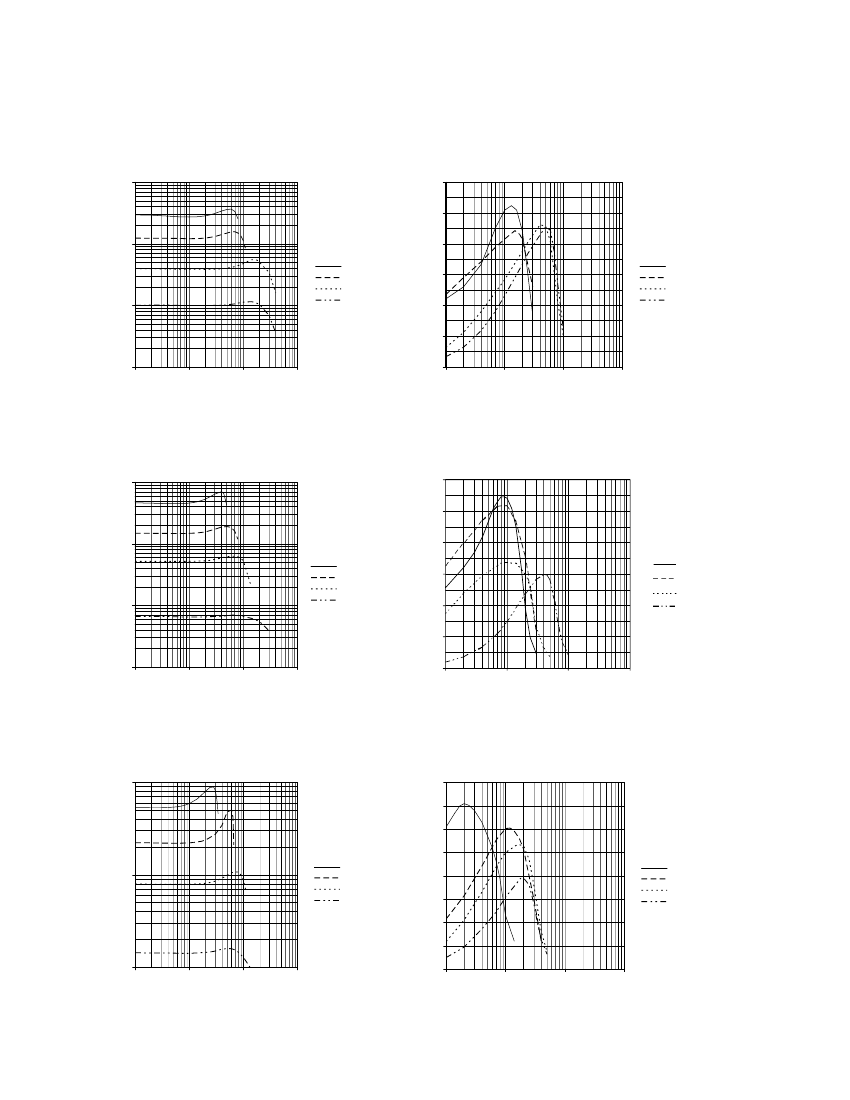

Electrical Characteristics
(Curves not listed are available upon request)
MCI 0603 SERIES
10000
60
50
1000
2700 nH
1200 nH
390 nH
100 nH
L (nH)
40
30
20
10
10
1
10
100
1000
FREQENCY (MHz)
0
1
10
100
1000
FREQENCY (MHz)
2700 nH
1200 nH
390 nH
100 nH
MCI 0603 SERIES
100
Q
MCI 0805 SERIES
10000
60
MCI 0805 SERIES
50
1000
4700 nH
1500 nH
560 nH
68 nH
L (nH)
40
4700
nH
1500
nH
560 nH
68 nH
30
100
Q
20
10
10
1
10
100
1000
FREQENCY (MHz)
0
1
10
100
1000
FREQENCY (MHz)
MCI 1206 SERIES
10000
MCI 1206 SERIES
80
70
60
50
1000
5600 nH
2200 nH
820 nH
150 nH
L (nH)
40
30
20
10
5600 nH
2200 nH
820 nH
150 nH
100
1
10
100
1000
FREQENCY (MHz)
Q
0
1
10
100
1000
FREQENCY (MHz)
27
11525 Sorrento Valley Road, San Diego, CA 92121, U.S.A.
www.aem-usa.com
Phone: (858)481-0210, Fax: (858)481-1123
