Part Number

Search

54176DMQB

Description
Decade Counter, Asynchronous, Up Direction, TTL, CDIP14,
Categorylogic    logic
File Size200KB,4 Pages
ManufacturerFairchild
Websitehttp://www.fairchildsemi.com/
Download Datasheet Parametric View All

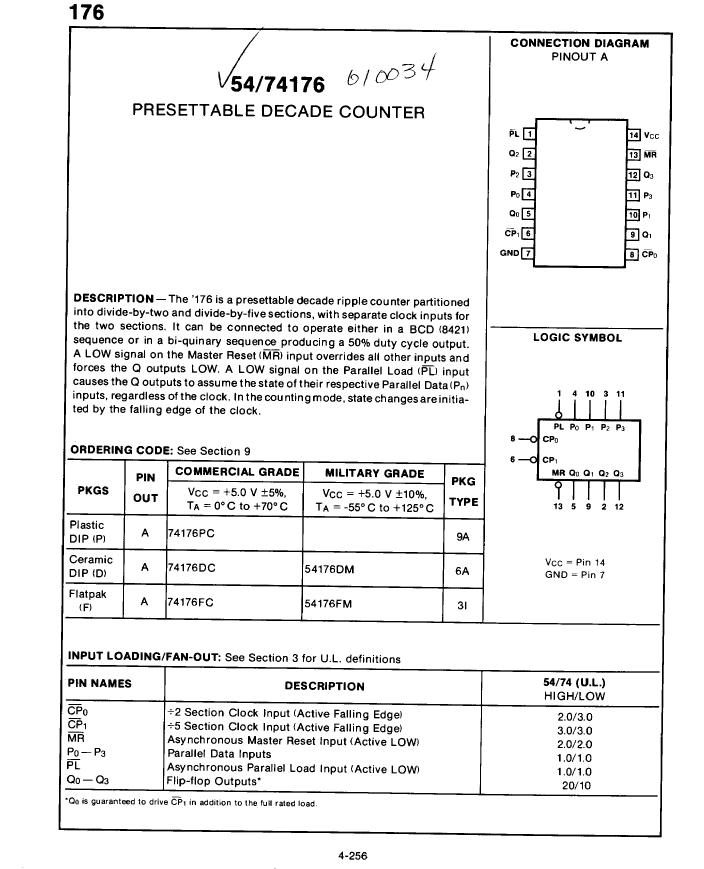

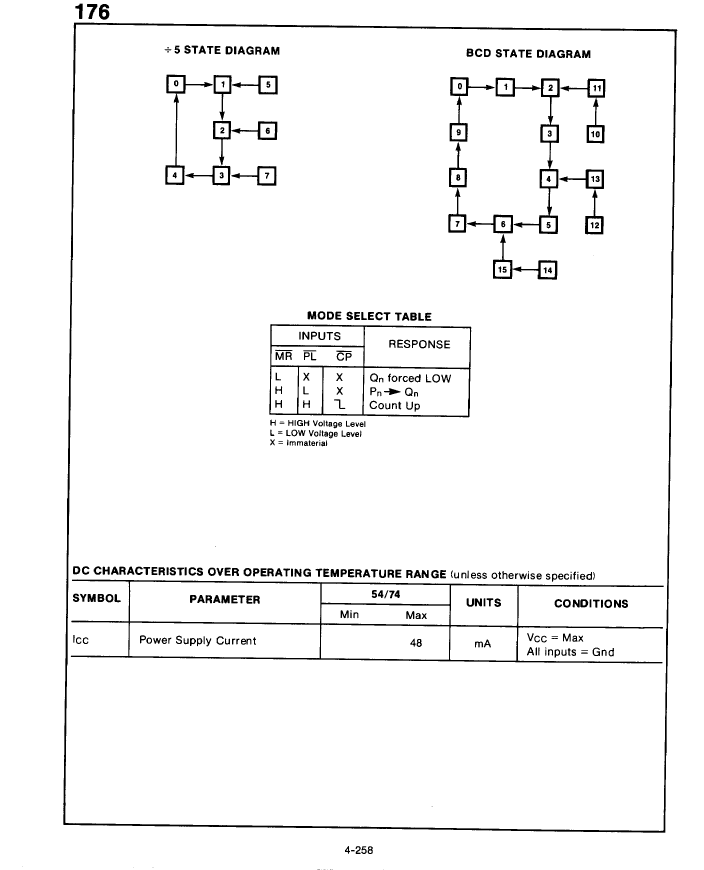

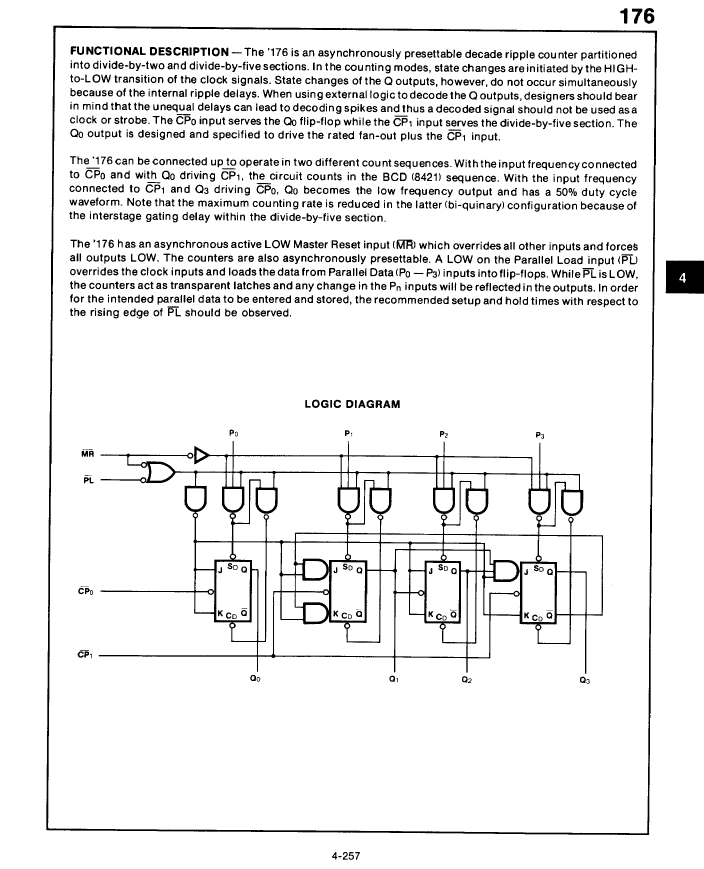

54176DMQB Overview

Decade Counter, Asynchronous, Up Direction, TTL, CDIP14,

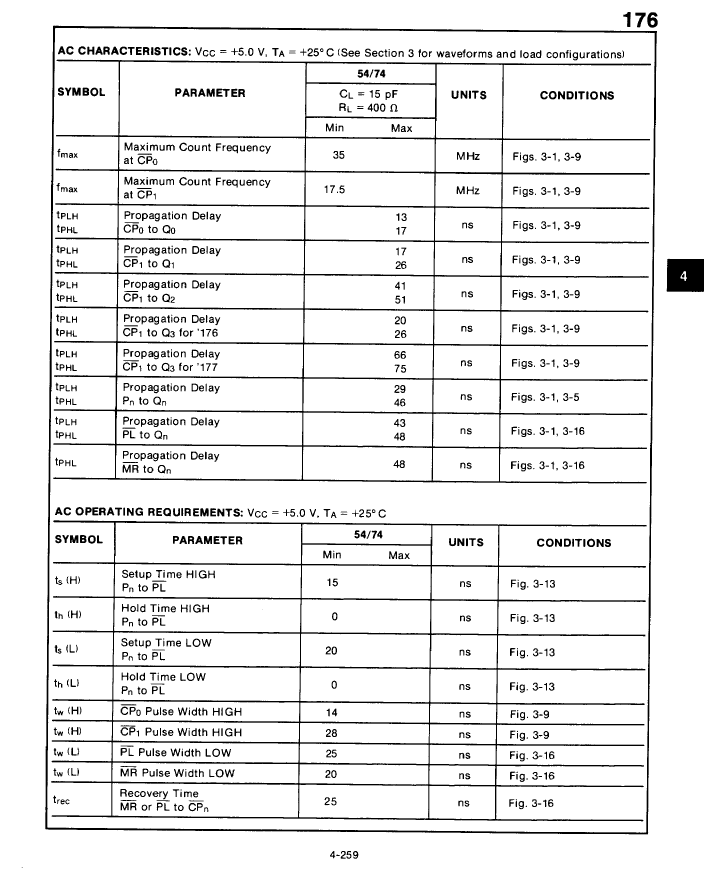

54176DMQB Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
Objectid1435987663
package instructionDIP, DIP14,.3
Reach Compliance Codecompliant
Counting directionUP
JESD-30 codeR-XDIP-T14
JESD-609 codee0
Load/preset inputNO
Logic integrated circuit typeDECADE COUNTER
Operating modeASYNCHRONOUS
Humidity sensitivity level2A
Number of functions1
Number of terminals14
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package body materialCERAMIC
encapsulated codeDIP
Encapsulate equivalent codeDIP14,.3
Package shapeRECTANGULAR
Package formIN-LINE
power supply5 V
Certification statusNot Qualified
Filter level38535Q/M;38534H;883B
Nominal supply voltage (Vsup)5 V
surface mountNO
technologyTTL
Temperature levelMILITARY
Terminal surfaceTIN LEAD
Terminal formTHROUGH-HOLE
Terminal pitch2.54 mm
Terminal locationDUAL
