NCM15NPO1R2F200F datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> NCM15NPO1R2F200F

NCM15NPO1R2F200F: DescriptionCeramic Capacitor, Ceramic, 200V, 1% +Tol, 1% -Tol, NP0, -/+30ppm/Cel TC, 0.0000012uF, 1510,; CategoryPassive components capacitor; File Size178KB，2 Pages; ManufacturerNIC Components Corp; Environmental Compliance

Download Datasheet Parametric View All

NCM15NPO1R2F200F Overview

Ceramic Capacitor, Ceramic, 200V, 1% +Tol, 1% -Tol, NP0, -/+30ppm/Cel TC, 0.0000012uF, 1510,

NCM15NPO1R2F200F Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	257419010
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	0.0000012 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	3.81 mm
length	3.81 mm
Installation features	THROUGH HOLE MOUNT
multi-layer	Yes
negative tolerance	1%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package form	Radial
method of packing	Bulk
positive tolerance	1%
Rated (DC) voltage (URdc)	200 V
surface mount	NO
Temperature characteristic code	C0G
Temperature Coefficient	30ppm/Cel ppm/°C
Terminal pitch	2.54 mm
Terminal shape	WIRE
width	2.54 mm

Preview

Download Datasheet

View All

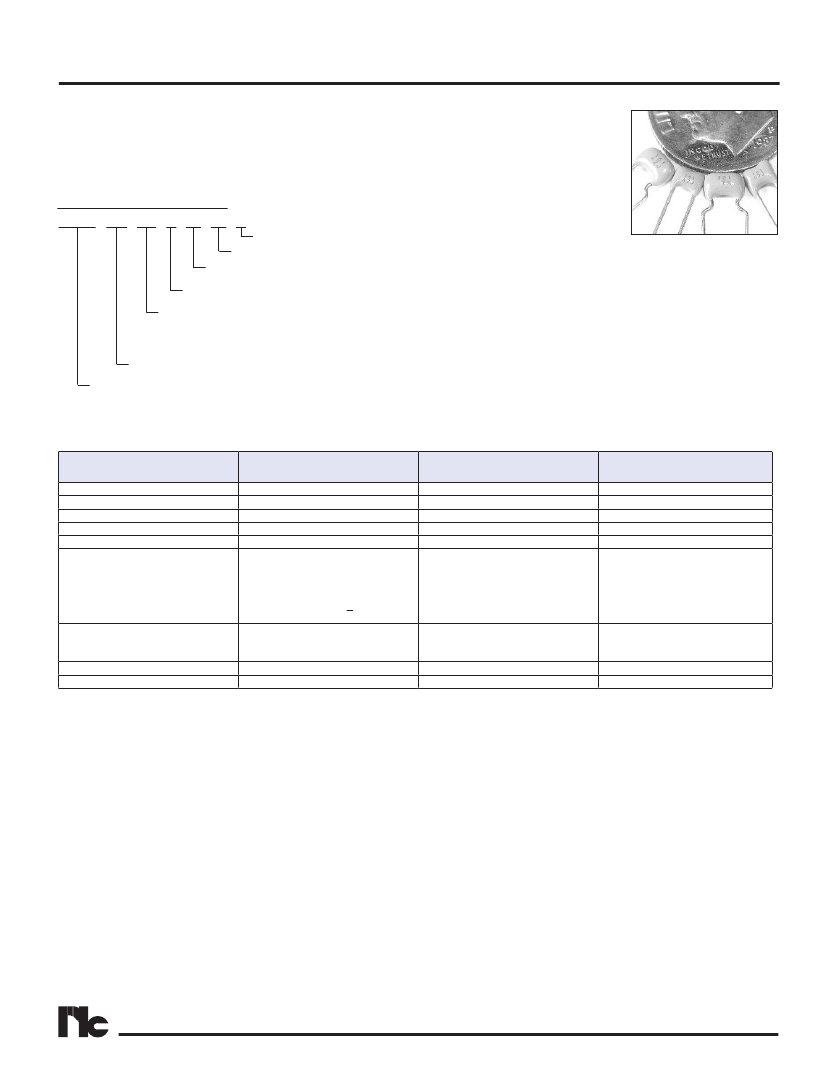

Conformally Coated, Radial Multilayer Ceramic Capacitors

FEATURES

• FLAME RETARDANT EPOXY COATING

• TEMPERATURE COEFFICIENTS NPO, X7R, Z5U

• AVAILABLE ON TAPE AND REEL

PART NUMBER SYSTEM

NCM20 Z5U 104 M

50 TR

RoHS Compliant

Tape and Reel

Voltage

Tolerance Code (see specifications table below)

Capacitance code, expressed in pF,

first two digits are significant, third digit is no. of zeros. “R” indicates

decimal for under 10pF

Temperature Coefficient

Series, Size Code

NCM Series

*See Part Number System for Details

SPECIFICATIONS

Characteristics

Capacitance Range*

Capacitance Tolerance (Code)

Operating Temperature Range

Temperature Characterisitcs

Voltage Rating

NPO

1pF ~ 0.1µF

±1%(F), ±2%(G), ±5%(J)

-55°C to +125°C

0±30ppm/°C

50, 100 & 200 Vdc

0.15% Max. (+25°C and +125°C)

for values greater than 30 pF.

For values of 30pF and below:

Q = 20 x C +400 1.0Vrms

1MHz for values < 1000pF

1KHz for values > 1000pF

100K Megohms or

1000 Megohm -µF Min.,

Whichever is Less

250% of Rated Voltage

200% of Rated Voltage at +125°C

X7R

470pF ~ 4.7µF

±5%(J), ±10%(K), ±20%(M)

-55°C to +125°C

±15% (0 Vdc)

50 & 100 Vdc

Z5U

1000pF ~ 4.7µF

±20%(M), +80%/-20%(Z)

+10°C to +85°C

+22%/-56%

50 & 100 Vdc

Dissipation Factor

2.5% Max. at 1KHz, 1Vrms Max.

4.0% Max. at 1KHz, 5Vrms Max.

Insulation Resistance 25°C

(Mil- STD-202, Method 302)

Dielectric Strength

Life Test (1000 hours)

100K Megohms or

1000 Megohm -µF Min.,

Whichever is Less

250% of Rated Voltage

200% of Rated Voltage at +125°C

10K Megohms or

100 Megohm -µF Min.,

Whichever is Less

200% of Rated Voltage

150% of Rated Voltage at +85°C

NIC COMPONENTS CORP.

www.niccomp.com

SPECIFICATIONS ARE SUBJECT TO CHANGE
