54F139LMQB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 54F139LMQB

54F139LMQB: DescriptionDecoder/Driver, F/FAST Series, Inverted Output, TTL, CQCC20, CERAMIC, LCC-20; Categorylogic logic; File Size847KB，9 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric Compare View All

54F139LMQB Overview

Decoder/Driver, F/FAST Series, Inverted Output, TTL, CQCC20, CERAMIC, LCC-20

54F139LMQB Parametric

Parameter Name	Attribute value
Parts packaging code	QLCC
package instruction	QCCN,
Contacts	20
Reach Compliance Code	unknow
ECCN code	EAR99
series	F/FAST
Input adjustment	STANDARD
JESD-30 code	S-CQCC-N20
length	8.89 mm
Logic integrated circuit type	OTHER DECODER/DRIVER
Humidity sensitivity level	1
Number of functions	2
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	INVERTED
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	260
propagation delay (tpd)	12 ns
Certification status	Not Qualified
Maximum seat height	1.905 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	8.89 mm
Base Number Matches	1

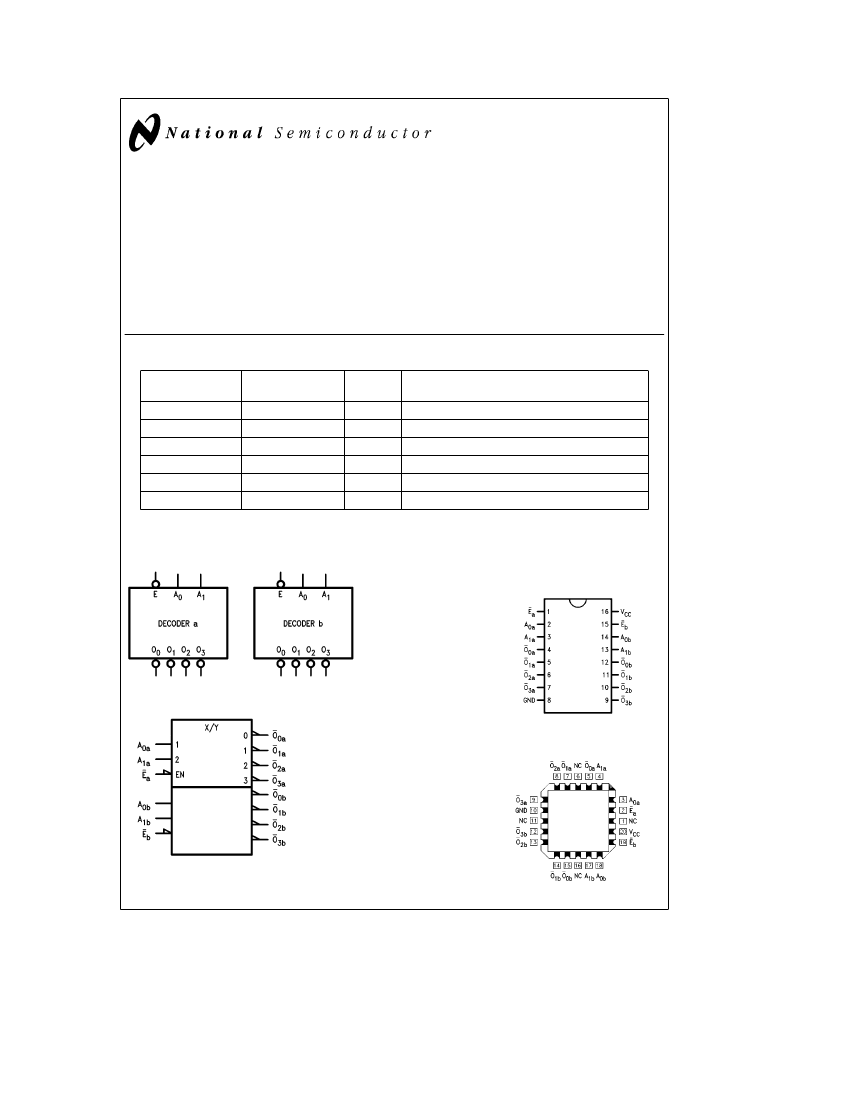

Preview
