DL4454: DescriptionRectifier Diode, 1 Element, 0.15A, 75V V(RRM), Silicon, GLASS, DL-35, 2 PIN; CategoryDiscrete semiconductor diode; File Size45KB，2 Pages; ManufacturerHitano Enterprise Corp; Environmental Compliance

Download Datasheet Parametric Compare View All

DL4454 Overview

Rectifier Diode, 1 Element, 0.15A, 75V V(RRM), Silicon, GLASS, DL-35, 2 PIN

DL4454 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Hitano Enterprise Corp
package instruction	O-LELF-R2
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	HIGH RELIABILITY, LOW POWER LOSS
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	O-LELF-R2
Number of components	1
Number of terminals	2
Maximum operating temperature	200 °C
Minimum operating temperature	-65 °C
Maximum output current	0.15 A
Package body material	GLASS
Package shape	ROUND
Package form	LONG FORM
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Maximum power dissipation	0.5 W
Maximum repetitive peak reverse voltage	75 V
Maximum reverse recovery time	0.004 µs
surface mount	YES
Terminal form	WRAP AROUND
Terminal location	END
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

Preview

Download Datasheet

View All

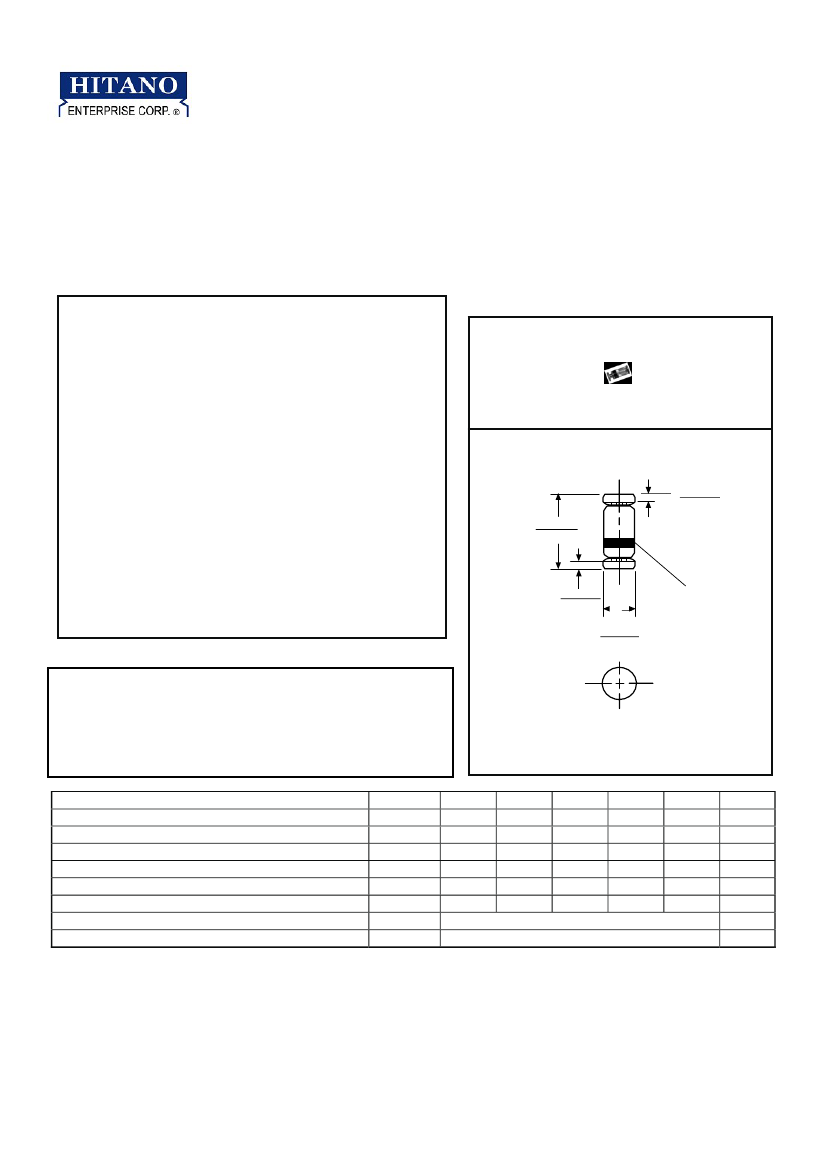

HITANO ENTERPRISE CORP.

DL4148 THRU DL4454

TECHNICAL SPECIFICATIONS OF SURFACE MOUNT SWITCHING DIODES

VOLTAGE RANGE – 50 to100 Volts

CURRENT - 0.15 to 0.2 Ampere

FEATURES

*

Low power loss, high efficiency

Low leakage

Low forward voltage drop

High speed switching

High current capability

High reliability

DL-35

MECHANICAL DATA

* Case: Glass sealed case

* Terminals:Solder plated, solderable per

MIL-STD-750, Method 2026

* Polarity: Color band denotes cathode end

* Mounting position: Any

* Weight: 0.35 gram

.142(3.6)

.134(3.4)

.016(0.4)

.008(0.2)

.016(0.4)

.008(0.2)

.059(1.5)

.055(1.4)

CATHODE MARK

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

Ratings at 25

O

C ambient temperature unless otherwise specified.

Single phase, half wave, 60 Hz, resistive or inductive

load. For capacitive load, derate current by 20%.

Dimensions in inches and (millimeters)

Maximum Recurrent Peak Reverse Voltage

Maximum Average Rectified Current

Maximum Power Dissipation Tamb=25

o

C

Maximum Forward Voltage

Maximum Reverse Current

Maximum Reverse Recovery Time

Typical Junction Capacitance

Operating and Storage Temperature Range

SYMBOL

V

RRM

Io

Ptot

V

F

I

R

trr

C

J

T

J

,T

STG

DL4148

100

150

500

1.0/10

5000/75

4.0

DL4150

50

200

500

1.0/200

100/50

4.0

DL4151

100

150

500

1.0/50

50/50

2.0

4.0

-65 to 200

DL4448

50

150

500

1.0/100

5000/75

4.0.

DL4454

75

150

500

1.0/10

100/10

4.0

V

mA

mW

V

µA

ns

pF

o

C

DL4454 Related Products

	DL4454	DL4150	DL4448	DL4148	DL4151
Description	Rectifier Diode, 1 Element, 0.15A, 75V V(RRM), Silicon, GLASS, DL-35, 2 PIN	Rectifier Diode, 1 Element, 0.2A, 50V V(RRM), Silicon, GLASS, DL-35, 2 PIN	Rectifier Diode, 1 Element, 0.15A, 50V V(RRM), Silicon, GLASS, DL-35, 2 PIN	Rectifier Diode, 1 Element, 0.15A, 50V V(RRM), Silicon, GLASS, DL-35, 2 PIN	Rectifier Diode, 1 Element, 0.15A, 100V V(RRM), Silicon, GLASS, DL-35, 2 PIN
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
Maker	Hitano Enterprise Corp	Hitano Enterprise Corp	Hitano Enterprise Corp	Hitano Enterprise Corp	Hitano Enterprise Corp
package instruction	O-LELF-R2	O-LELF-R2	O-LELF-R2	O-LELF-R2	O-LELF-R2
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	HIGH RELIABILITY, LOW POWER LOSS	HIGH RELIABILITY, LOW POWER LOSS	HIGH RELIABILITY, LOW POWER LOSS	HIGH RELIABILITY, LOW POWER LOSS	HIGH RELIABILITY, LOW POWER LOSS
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JESD-30 code	O-LELF-R2	O-LELF-R2	O-LELF-R2	O-LELF-R2	O-LELF-R2
Number of components	1	1	1	1	1
Number of terminals	2	2	2	2	2
Maximum operating temperature	200 °C	200 °C	200 °C	200 °C	200 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C
Maximum output current	0.15 A	0.2 A	0.15 A	0.15 A	0.15 A
Package body material	GLASS	GLASS	GLASS	GLASS	GLASS
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maximum power dissipation	0.5 W	0.5 W	0.5 W	0.5 W	0.5 W
Maximum repetitive peak reverse voltage	75 V	50 V	50 V	50 V	100 V
Maximum reverse recovery time	0.004 µs	0.004 µs	0.004 µs	0.004 µs	0.002 µs
surface mount	YES	YES	YES	YES	YES
Terminal form	WRAP AROUND	WRAP AROUND	WRAP AROUND	WRAP AROUND	WRAP AROUND
Terminal location	END	END	END	END	END
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Base Number Matches	1	1	1	-	-
