Q12.9990-JXS22P4-S-10/100-T1-AEC-HMR-LF datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> Q12.9990-JXS22P4-S-10/100-T1-AEC-HMR-LF

Q12.9990-JXS22P4-S-10/100-T1-AEC-HMR-LF: DescriptionSeries - Fundamental Quartz Crystal, 12.999MHz Nom, SMD, 4 PIN; CategoryPassive components Crystal/resonator; File Size2MB，2 Pages; ManufacturerJauch; Websitehttp://www.jauchusa.com/; Environmental Compliance

Download Datasheet Parametric View All

Q12.9990-JXS22P4-S-10/100-T1-AEC-HMR-LF Overview

Series - Fundamental Quartz Crystal, 12.999MHz Nom, SMD, 4 PIN

Q12.9990-JXS22P4-S-10/100-T1-AEC-HMR-LF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	145071162889
package instruction	SMD, 4 PIN
Reach Compliance Code	compliant
Country Of Origin	Taiwan
YTEOL	7.25
Other features	AEC-Q200; AT-CUT
Ageing	1 PPM/FIRST YEAR
Crystal/Resonator Type	SERIES - FUNDAMENTAL
Drive level	10 µW
frequency stability	0.01%
frequency tolerance	10 ppm
JESD-609 code	e4
Installation features	SURFACE MOUNT
Nominal operating frequency	12.999 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
physical size	2.5mm X 2.0mm X 0.55mm
Series resistance	120 Ω
surface mount	YES
Terminal surface	Nickel/Gold (Ni/Au)

Preview

Download Datasheet

View All

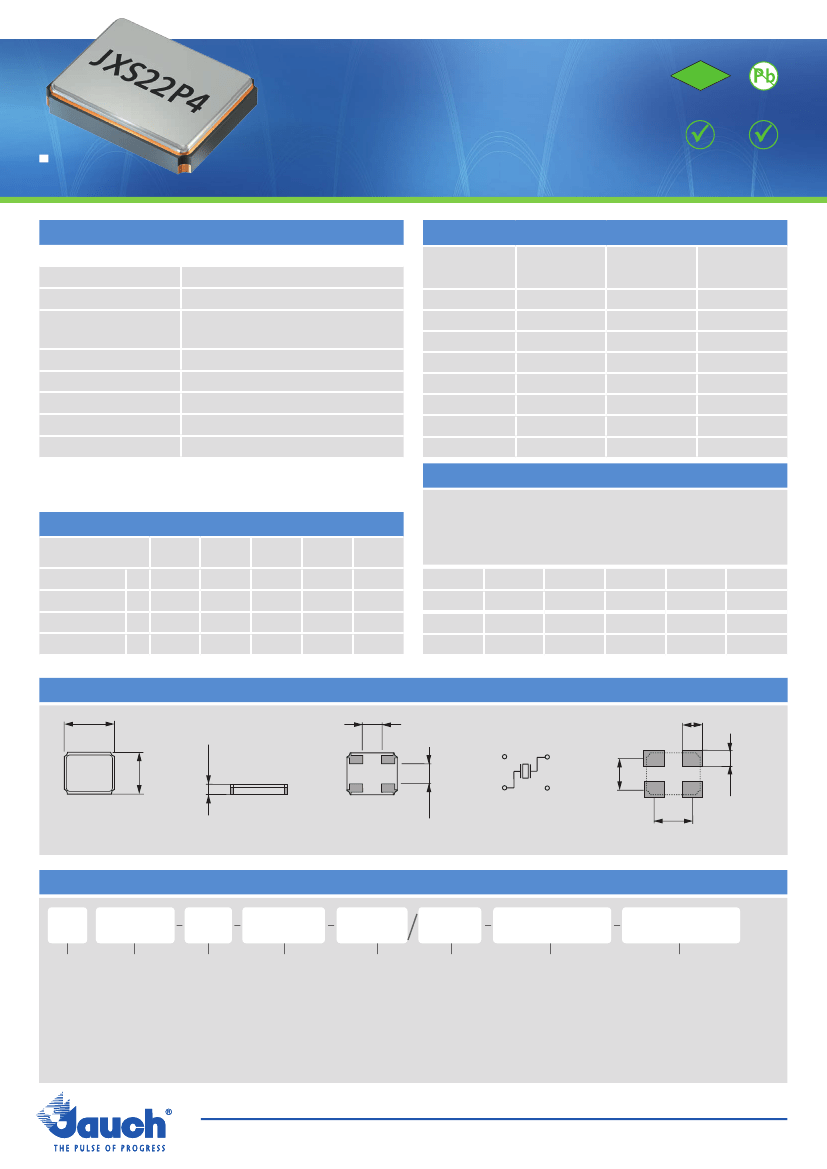

Automotive SMD Crystal · JXS22P4

- 4 Pad Version, 2.5 x 2.0 mm

- seam sealed ceramic/metal package

- all versions are AEC-Q200 qualified

- HMR version with extended shock & vibration immunity

actual size

2011/65/EC

RoHS

RoHS compliant

Pb free

REACH

compliant

Conflict

mineral free

GENERAL DATA

TYPE

frequency range

frequency tolerance at 25 °C

load capacitance C

shunt capacitance C

storage temperature

shock resistance

drive level max.

aging

JXS22P4

12.0 ~ 40.0 MHz

(fund. AT-cut)

ESR (SERIES RESISTANCE RS)

frequency

in MHz

12.0 ~ 12.999

13.0 ~ 15.999

16.0 ~ 17.999

18.0 ~ 19.999

20.0 ~ 24.999

25.0 ~ 29.999

30.0 ~ 34.999

35.0 ~ 40.000

MARKING

(half sine pulse, 6.0 ms)*

(10 µW recommended)

vibration

mode

fund. - AT

ESR max.

in ½

150

ESR typ.

in ½

120

100

±10 ppm, ±20 ppm, ±30 ppm

12 pF standard

(option: 8 pF ~ 30.0 pF / series)

< 5 pF

-40 °C ~ +125 °C

> 100 g

100 µW

< ±3 ppm first year (< ± 1 ppm for tol. ± 10 ppm)

* optional HMR version: 3000G / half sine pulse / 0.3 ms

TABLE 1: FREQUENCY STABILITY VS. TEMPERATURE

± 15

ppm

±20

ppm

±30

ppm

±50

ppm

±100

ppm

frequency with load capacitance code

company code / date code / internal code

date code: year/month; A ~ M: Jan. - Dec.; example 9A = 2019 January

9: 2019

0: 2020

1: 2021

2: 2022

3: 2023

4: 2024

Jan.

July

Febr.

Aug.

Mar.

Sept.

Apr.

Oct.

May

Nov.

June

Dec.

-20 °C ~ +70 °C

-40 °C ~ +85 °C

-40 °C ~ +105 °C

-40 °C ~ +125 °C





















available ∆ ask if available

DIMENSIONS

2.5

±0.1

0.55

±0.05

0.95

±0.1

1.3

±0.1

1.0

±0.1

1.7

±0.1

pad layout

in mm

option 2

21032019

1.2

±0.1

2.0

±0.1

0.65

±0.1

side view

top view

ORDER INFORMATION

bottom view

#2–#4: connected to lid,

preferably connect to GND

crystal connection

Quartz

frequency

12.0 ~ 40.0 MHz

type

JXS22P4

load capacitance

12 pF standard

8 pF ~ 30 pF

S for series

tolerance at

25 °C

10 = ±10 ppm

20 = ±20 ppm

30 = ±30 ppm

stability vs.

temp. range

see table 1

option 1

blank = -20 °C ~ +70 °C

AEC = AEC-Q200 qualified

T(-30/+85) = -30 °C ~ +85 °C

HMR = high mechanical reliability

T1 = -40 °C ~ +85 °C

(3000g/half sine wave/0.3ms)

T2 = -40 °C ~ +105 °C

T3 = -40 °C ~ +125 °C

FU = for fundamental

frequencies ≥ 20 MHz

Example: Q 30.0-JXS22P4-12-30/50-T2-FU-AEC-LF

(Suffix LF = RoHS compliant / Pb free)

Jauch Quartz GmbH • e-mail: info@jauch.de • full data can bedata can be found under:

info@jauch.com

full found under: www.jauch.com

All specifications are subject to change without notice

www.jauch.de | www.jauch.co.uk | www.jauch.fr | www.jauchusa.com
