PRA182I4-100KBWN: Descriptionresistor networks & arrays 1/10watt 100kohms abs 0.1% ratio .05%; CategoryPassive components The resistor; File Size102KB，5 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance

Download Datasheet Parametric Compare View All

PRA182I4-100KBWN Overview

resistor networks & arrays 1/10watt 100kohms abs 0.1% ratio .05%

PRA182I4-100KBWN Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	SMT, 2912
Reach Compliance Code	unknow
ECCN code	EAR99
Is Samacsys	N
structure	Chi
JESD-609 code	e2
Manufacturer's serial number	PRA(CNW)
Network Type	Isolated
Number of terminals	8
Maximum operating temperature	155 °C
Minimum operating temperature	-55 °C
Package height	0.4 mm
Package length	7.28 mm
Package form	SMT
Package width	3 mm
method of packing	Box
Rated power dissipation(P)	0.2 W
resistance	100000 Ω
Resistor type	ARRAY/NETWORK RESISTOR
series	PRA (CNW)
size code	2912
Temperature Coefficient	-10,10 ppm/°C
Terminal surface	Tin/Silver (Sn/Ag) - with Nickel (Ni) barrie
Tolerance	0.1%
Operating Voltage	150 V
Base Number Matches	1

Preview

Download Datasheet

View All

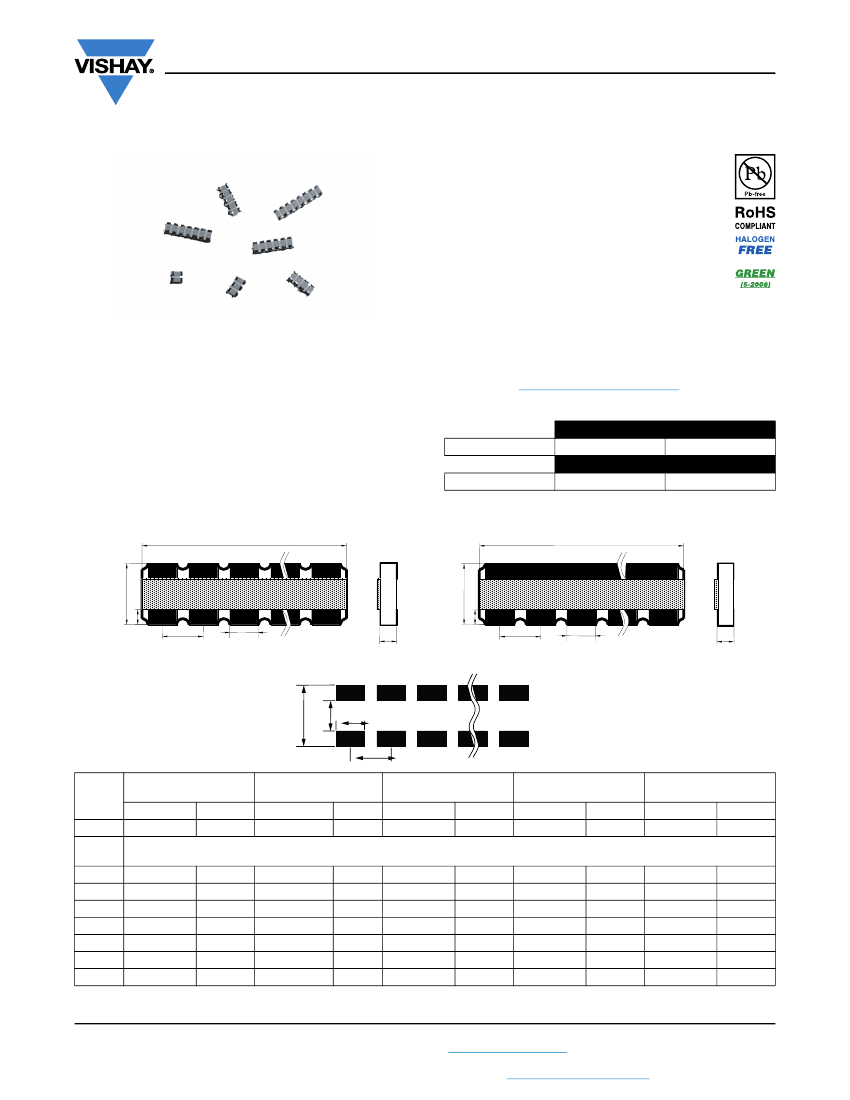

PRA073, PRA074, PRA100, PRA135, PRA182 (CNW)

www.vishay.com

Vishay Sfernice

High-Precision Thin Film Chip Resistor Arrays, Sulfur Resistant

FEATURES

• High-stability passivated nichrome resistive

layer 0.02 % on ratio, 1000 h at Pn at + 70 °C

• Tight TCR (10 ppm/°C) and TCR tracking

(to 1 ppm/°C)

• Very low noise < -35 dB and voltage coefficient

< 0.01 ppm/V

Available

• Ratio tolerance to 0.01 % (R



200R)

• High-temperature (230 °C) version, see PRA HT

Available

• ESA-qualified version, see PRA HR

• SMD wraparound chip resistor array

• Thin film technology

• Option to withstand humidity test of AEC-Q200

• Sulfur resistant (per ASTM B809-95 humid vapor test)

• Material categorization: For definitions of compliance

please see

www.vishay.com/doc?99912

PRA arrays can be used in most applications requiring a

matched pair (or set) of resistor elements. The networks

provide 1 ppm/°C TCR tracking, a ratio tolerance as tight as

0.01 %, and outstanding stability.

They are available in pitch:

•

0.70 mm for PRA073 (based on case 0302)

0.70 mm for PRA074 (based on case 0402)

1.00 mm for PRA100 (based on case 0603)

1.35 mm for PRA135 (based on case 0805)

1.82 mm for PRA182 (based on case 1206)

Independent resistors

TYPICAL PERFORMANCE

ABSOLUTE

TCR

TOL.

10 ppm/°C

ABSOLUTE

0.1 %

TRACKING

2 ppm/°C

RATIO

0.01 %

DIMENSIONS

One common point

Suggested land pattern

(according to IPC-7351A)

max.

min.

max.

DIM.

min.

max.

PRA073

(0302 base)

0.75 ± 0152

mil

29.5 ± 6

PRA074

(0402 base)

1.00 ± 0.152

mil

40 ± 6

PRA100

(0603 base)

1.52 ± 0.152

mil

60 ± 6

PRA135

(0805 base)

1.91 ± 0.152

mil

75 ± 6

PRA182

(1206 base)

3.06 ± 0.152

mil

120 ± 6

B = N x E (± 0.2 mm)

B = N x E (± 8 mil)

0.5 ± 0.127

0.15 ± 0.08

0.7

0.55 ± 0.1

0.28

0.51

1.8

20 ± 5

5.9 ± 3

27.5

21.5 ± 4

70.9

0.5 ± 0.127

0.25 ± 0 .1

0.7

0.55 ± 0.1

0.29

0.51

2.05

20 ± 5

10 ± 4

27.5

21.5 ± 4

11.4

80.7

0.5 ± 0.127

0.38 ± 0.13

0.7 ± 0.1

0.49

0.66

2.57

20 ± 5

15 ± 5

27.6 ± 4

19.3

101.2

0.5 ± 0.127

0.38 ± 0.13

1.35

1.05 ± 0.1

0.88

1.01

2.96

20 ± 5

15 ± 5

41.4 ± 4

34.5

39.8

116.5

0.5 ± 0.127

0.4 ± 0.13

1.825

1.525 ± 0.1

1.99

1.49

4.11

20 ± 5

16 ± 5

6±4

78.3

58.7

161.8

Note

• N represents number of resistors

Revision: 23-Apr-14

Document Number: 53033

For technical questions, contact:

sferthinfilm@vishay.com

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT

www.vishay.com/doc?91000

Legal Disclaimer Notice

www.vishay.com

Vishay

Disclaimer

ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE

RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.

Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively,

“Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other

disclosure relating to any product.

Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or

the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all

liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special,

consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular

purpose, non-infringement and merchantability.

Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of typical

requirements that are often placed on Vishay products in generic applications. Such statements are not binding statements

about the suitability of products for a particular application. It is the customer’s responsibility to validate that a particular

product with the properties described in the product specification is suitable for use in a particular application. Parameters

provided in datasheets and/or specifications may vary in different applications and performance may vary over time. All

operating parameters, including typical parameters, must be validated for each customer application by the customer’s

technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase,

including but not limited to the warranty expressed therein.

Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining

applications or for any other application in which the failure of the Vishay product could result in personal injury or death.

Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk. Please

contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for such applications.

No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by

any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners.

Material Category Policy

Vishay Intertechnology, Inc. hereby certifies that all its products that are identified as RoHS-Compliant fulfill the

definitions and restrictions defined under Directive 2011/65/EU of The European Parliament and of the Council

of June 8, 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment

(EEE) - recast, unless otherwise specified as non-compliant.

Please note that some Vishay documentation may still make reference to RoHS Directive 2002/95/EC. We confirm that

all the products identified as being compliant to Directive 2002/95/EC conform to Directive 2011/65/EU.

Vishay Intertechnology, Inc. hereby certifies that all its products that are identified as Halogen-Free follow Halogen-Free

requirements as per JEDEC JS709A standards. Please note that some Vishay documentation may still make reference

to the IEC 61249-2-21 definition. We confirm that all the products identified as being compliant to IEC 61249-2-21

conform to JEDEC JS709A standards.

Revision: 02-Oct-12

Document Number: 91000

PRA182I4-100KBWN Related Products

	PRA182I4-100KBWN	PRA100I4-10KBWN	PRA100I4-1KBWN	PRA100I4-5KBWN	PRA100I2-10KBWN	PRA100I2-5KBWN	PRA100I4-100KBWN	PRA182I4-1KBWN	PRA182I4-10KBWN
Description	resistor networks & arrays 1/10watt 100kohms abs 0.1% ratio .05%	resistor networks & arrays 1/10watt 10kohms abs 0.1% ratio .05%	resistor networks & arrays 1/10watt 1kohms abs 0.1% ratio .05%	resistor networks & arrays 1/10watt 5kohms abs 0.1% ratio .05%	resistor networks & arrays 1/10watt 10kohms abs 0.1% ratio .05%	resistor networks & arrays 1/10watt 5kohms abs 0.1% ratio .05%	resistor networks & arrays 1/10watt 100kohms abs 0.1% ratio .05%	resistor networks & arrays 1/10watt 1kohms abs 0.1% ratio .05%	resistor networks & arrays 1/10watt 10kohms abs 0.1% ratio .05%
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	-	conform to	conform to	conform to
package instruction	SMT, 2912	SMT, 1606	SMT, 1606	SMT, 1606	SMT, 0806	-	SMT, 1606	SMT, 2912	SMT, 2912
Reach Compliance Code	unknow	unknown	unknown	unknown	unknown	-	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	-	EAR99	EAR99	EAR99
Is Samacsys	N	N	N	N	N	-	N	N	N
structure	Chi	Chip	Chip	Chip	Chip	-	Chip	Chip	Chip
JESD-609 code	e2	e2	e2	e2	e2	-	e2	e2	e2
Manufacturer's serial number	PRA(CNW)	PRA(CNW)	PRA(CNW)	PRA(CNW)	PRA(CNW)	-	PRA(CNW)	PRA(CNW)	PRA(CNW)
Network Type	Isolated	Isolated	Isolated	Isolated	Isolated	-	Isolated	Isolated	Isolated
Number of terminals	8	8	8	8	4	-	8	8	8
Maximum operating temperature	155 °C	155 °C	155 °C	155 °C	155 °C	-	155 °C	155 °C	155 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-	-55 °C	-55 °C	-55 °C
Package height	0.4 mm	0.4 mm	0.4 mm	0.4 mm	0.4 mm	-	0.4 mm	0.4 mm	0.4 mm
Package length	7.28 mm	4 mm	4 mm	4 mm	2 mm	-	4 mm	7.28 mm	7.28 mm
Package form	SMT	SMT	SMT	SMT	SMT	-	SMT	SMT	SMT
Package width	3 mm	1.6 mm	1.6 mm	1.6 mm	1.6 mm	-	1.6 mm	3 mm	3 mm
method of packing	Box	Box	Box	Box	Box	-	Box	Box	Box
Rated power dissipation(P)	0.2 W	0.1 W	0.1 W	0.1 W	0.1 W	-	0.1 W	0.2 W	0.2 W
resistance	100000 Ω	10000 Ω	1000 Ω	5000 Ω	10000 Ω	-	100000 Ω	1000 Ω	10000 Ω
Resistor type	ARRAY/NETWORK RESISTOR	ARRAY/NETWORK RESISTOR	ARRAY/NETWORK RESISTOR	ARRAY/NETWORK RESISTOR	ARRAY/NETWORK RESISTOR	-	ARRAY/NETWORK RESISTOR	ARRAY/NETWORK RESISTOR	ARRAY/NETWORK RESISTOR
series	PRA (CNW)	PRA (CNW)	PRA (CNW)	PRA (CNW)	PRA (CNW)	-	PRA (CNW)	PRA (CNW)	PRA (CNW)
size code	2912	1606	1606	1606	0806	-	1606	2912	2912
Temperature Coefficient	-10,10 ppm/°C	-10,10 ppm/°C	-10,10 ppm/°C	-10,10 ppm/°C	-10,10 ppm/°C	-	-10,10 ppm/°C	-10,10 ppm/°C	-10,10 ppm/°C
Terminal surface	Tin/Silver (Sn/Ag) - with Nickel (Ni) barrie	Tin/Silver (Sn/Ag) - with Nickel (Ni) barrier	Tin/Silver (Sn/Ag) - with Nickel (Ni) barrier	Tin/Silver (Sn/Ag) - with Nickel (Ni) barrier	Tin/Silver (Sn/Ag) - with Nickel (Ni) barrier	-	Tin/Silver (Sn/Ag) - with Nickel (Ni) barrier	Tin/Silver (Sn/Ag) - with Nickel (Ni) barrier	Tin/Silver (Sn/Ag) - with Nickel (Ni) barrier
Tolerance	0.1%	0.1%	0.1%	0.1%	0.1%	-	0.1%	0.1%	0.1%
Operating Voltage	150 V	50 V	50 V	50 V	50 V	-	50 V	150 V	150 V
Base Number Matches	1	1	1	1	1	-	1	1	1
