Tantalum Through-Hole Capacitors – Hermetically Sealed
T216 Series Axial MIL–PRF–39003 (CSS13 Style) and
T256 (CSS33 Style)
Overview
The T216 and T256 are KEMET's designation for MIL Style
CSS13 and CSS33 capacitors. The T216/T256 Series is
qualified to all failure rates per MIL-PRF-39003/10. Products
meeting this specification have passed rigorous test
requirements and are used in space applications or other
equally demanding environments.
Applications
These capacitors provide circuit designers an excellent
choice for blocking, bypass, decoupling, filtering, and timing
applications.
Benefits
• Taped and reeled per EIA Specification RS–296
• Marking per MIL–STD–1285
• Qualified to MIL–PRF–39003 (CSS13 and CSS33 Style)
• Failure rate options: Graded – B, C
• The T216 is available in capacitance ratings from
0.12 – 330 μF and voltage rating from 6 – 75 VDC
• The T256 is available in capacitance ratings from
1.2 – 1,000 μF and voltage rating from 6 – 50 VDC
• Tolerances of ±10%
• Operating temperature range of −55°C to +125°C
• Case sizes: A, B, C, D

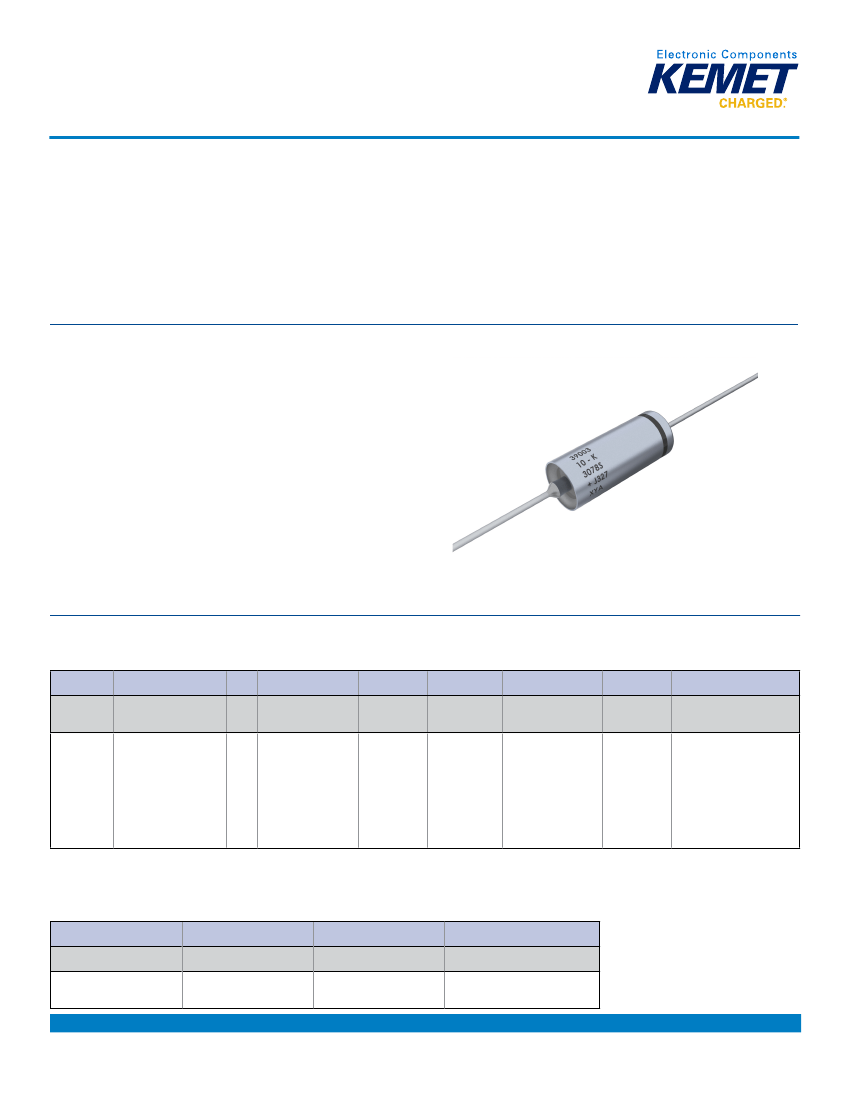

Click image above for interactive 3D content
Open PDF in Adobe Reader for full functionality
Ordering Information – T216/T256
T
Capacitor
Class
T=
Tantalum
216
Series
216
(MIL–C–39003/10,
CSS13)
256
(MIL–C–39003/10,
CSS33)
A
Case
Size
A
B
C
D
106
Capacitance
Code (pF)
First two digits
represent
significant
figures. Third
digit specifies
number of zeros.
K
050
C
Failure Rate
Graded:
B = 0.1%/k hours
C = 0.01%/k hours
S
Termination
Finish
S=
Standard
(Solder-
coated
nickel)
C-Spec
Blank = Sleeved/Bulk
0100 = Unsleeved/Bulk
7200 = Tape & Reel
All capacitors are
sleeved unless
specified.
Capacitance
Rated Voltage
Tolerance
(VDC)
K = ±10%
006 = 6
010 = 10
015 = 15
020 = 20
035 = 35
050 = 50
075 = 75
Ordering Information – T216 (CSS13 Style)
MIL product
M39003
Capacitor Class
Military specification
number
/10
Slash
Specification sheet
number
2049
Dash Number
Failure rate level
S
Sleeve
S = Sleeved
U = Unsleeved use C - 0100
One world. One KEMET
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
T2037_T216_AXIAL_T256 • 2/5/2019
1
Tantalum Through-Hole Capacitors – Hermetically Sealed
T216 Series Axial MIL–PRF–39003 (CSS13 Style) and T256 (CSS33 Style)
Ordering Information – T256 (CSS33 Style)
MIL product
M39003
Capacitor Class
Military specification
number
/10
Slash
Specification sheet
number
2549
Dash Number
Failure rate level
S
Sleeve
S = Sleeved
U = Unsleeved use C - 0100
Performance Characteristics
Item
Operating Temperature
Rated Capacitance Range
Capacitance Tolerance
Rated Voltage Range
DF (120 Hz at 25°C)
ESR and Impedance (100 kHz at 25°C)
Leakage Current
Failure Rate (MIL-PRF-39003,
CSS13 and CSS33 capacitors only)
−55°C to 125°C
CSS13 = 0.12 – 330 μF at 120 Hz/25°C
CSS33 = 1.2 – 1,000 μF at 120 Hz/25°C
K Tolerance (10%)
CSS13 = 6 – 75 V
CSS33 = 6 – 50 V
Refer to Part Number Electrical Specification Table
Refer to Part Number Electrical Specification Table
Refer to Part Number Electrical Specification Table (rated voltage up to +125°C)
Approved failure rate: C (0.01%/k hours) – Graded
Performance Characteristics
Dimensions – Inches (Millimeters)
SIDE VIEW
1.50±0.250
(38.10±6.35)
END VIEW
1.50±0.250
(38.10±6.35)
C
D
+
B
L
Case
Size
A
B
C
D
Uninsulated
D
±0.005
±(0.13)
0.125
(3.18)
0.175
(4.45)
0.279
(7.09)
0.341
(8.66)
Insulated
D
±0.010
±(0.25)
0.135
(3.43)
0.185
(4.70)
0.289
(7.34)
0.351
(8.92)
L
±0.031
±(0.79)
0.250
(6.35)
0.438
(11.13)
0.650
(16.51)
0.750
(19.05)
L
±0.031
±(0.79)
0.286
(7.26)
0.474
(12.04)
0.686
(17.42)
0.786
(19.96)
B
±0.002
C
±(0.05)
Maximum
0.020
(0.51)
0.020
(0.51)
0.025
(0.64)
0.025
(0.64)
0.422
(10.72)
0.610
(15.49)
0.822
(20.88)
0.922
(23.42)
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
T2037_T216_AXIAL_T256 • 2/5/2019
2
Tantalum Through-Hole Capacitors – Hermetically Sealed
T216 Series Axial MIL–PRF–39003 (CSS13 Style) and T256 (CSS33 Style)
Table 1A – T216 Ratings & Part Number Reference
MIL–PRF–39003 (CSS13 Style)
Rated
Voltage
Rated
Capacitance
Case
Size
Code
DC
Leakage
DF
% at
25°C
Dash Number Reference
ESR
Failure Rate Level
(%/1,000 Hours)
MIL–PRF–39003/10
Graded
(V) 85°C
6
6
6
6
6
6
6
6
10
10
10
10
10
10
10
10
10
10
15
15
15
15
15
15
15
15
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
35
35
35
35
35
35
(V) 85°C
µF
5.6
6.8
47.0
56.0
150.0
180.0
270.0
330.0
3.9
4.7
27.0
33.0
39.0
82.0
100.0
120.0
180.0
220.0
2.7
3.3
18.0
22.0
56.0
68.0
120.0
150.0
1.2
1.5
1.8
2.2
8.2
10.0
12.0
15.0
27.0
33.0
39.0
47.0
56.0
68.0
82.0
100.0
5.6
6.8
22.0
27.0
33.0
39.0
µF
A
A
B
B
C
C
D
D
A
A
B
B
B
C
C
C
D
D
A
A
B
B
C
C
D
D
A
A
A
A
B
B
B
B
C
C
C
C
D
D
D
D
B
B
C
D
D
D
µA at 25°C
Maximum/5 Minutes
0.3
0.3
1.5
1.5
4.5
5.5
6.5
7.5
0.3
0.4
2.0
2.5
2.5
4.0
5.0
6.0
9.0
10.0
0.3
0.4
2.0
2.0
4.0
5.0
9.0
10.0
0.3
0.3
0.3
0.4
1.0
1.5
1.8
2.0
2.5
3.5
4.0
4.5
5.5
7.0
8.0
10.0
1.3
1.5
4.0
4.5
5.5
7.0
µA at 25°C
Maximum/5 Minutes
120 Hz
Maximum
4
6
6
6
8
8
8
8
4
4
6
6
6
6
8
8
8
8
4
4
6
6
6
6
8
8
4
4
4
4
6
6
6
6
6
6
6
6
6
6
6
8
4
6
6
6
6
6
120 Hz
Maximum
Ω at25°C
100 kHz Max
0.90
0.80
0.24
0.24
0.09
0.08
0.07
0.06
1.00
0.90
0.25
0.24
0.24
0.12
0.11
0.10
0.08
0.07
1.20
1.00
0.27
0.26
0.15
0.13
0.09
0.09
1.40
1.30
1.25
1.20
0.39
0.35
0.32
0.29
0.21
0.19
0.17
0.16
0.13
0.12
0.11
0.10
0.47
0.43
0.25
0.18
0.17
0.15
Ω at25°C
100 kHz Max
B
(0.1)
2001(1)
2002(1)
2003(1)
2004(1)
2005(1)
2006(1)
2007(1)
2008(1)
2009(1)
2010(1)
2011(1)
2012(1)
2013(1)
2014(1)
2015(1)
2016(1)
2017(1)
2018(1)
2019(1)
2020(1)
2021(1)
2022(1)
2023(1)
2024(1)
2025(1)
2026(1)
2027(1)
2028(1)
2029(1)
2030(1)
2031(1)
2032(1)
2033(1)
2034(1)
2035(1)
2036(1)
2037(1)
2038(1)
2039(1)
2040(1)
2041(1)
2042(1)
2043(1)
2044(1)
2045(1)
2046(1)
2047(1)
2048(1)
B
(0.1)
C
(0.01)
3001(1)
3002(1)
3003(1)
3004(1)
3005(1)
3006(1)
3007(1)
3008(1)
3009(1)
3010(1)
3011(1)
3012(1)
3013(1)
3014(1)
3015(1)
3016(1)
3017(1)
3018(1)
3019(1)
3020(1)
3021(1)
3022(1)
3023(1)
3024(1)
3025(1)
3026(1)
3027(1)
3028(1)
3029(1)
3030(1)
3031(1)
3032(1)
3033(1)
3034(1)
3035(1)
3036(1)
3037(1)
3038(1)
3039(1)
3040(1)
3041(1)
3042(1)
3043(1)
3044(1)
3045(1)
3046(1)
3047(1)
3048(1)
C
(0.01)
Part Number
T216A565K006(2)S
T216A685K006(2)S
T216B476K006(2)S
T216B566K006(2)S
T216C157K006(2)S
T216C187K006(2)S
T216D277K006(2)S
T216D337K006(2)S
T216A395K010(2)S
T216A475K010(2)S
T216B276K010(2)S
T216B336K010(2)S
T216B396K010(2)S
T216C826K010(2)S
T216C107K010(2)S
T216C127K010(2)S
T216D187K010(2)S
T216D227K010(2)S
T216A275K015(2)S
T216A335K015(2)S
T216B186K015(2)S
T216B226K015(2)S
T216C566K015(2)S
T216C686K015(2)S
T216D127K015(2)S
T216D157K015(2)S
T216A125K020(2)S
T216A155K020(2)S
T216A185K020(2)S
T216A225K020(2)S
T216B825K020(2)S
T216B106K020(2)S
T216B126K020(2)S
T216B156K020(2)S
T216C276K020(2)S
T216C336K020(2)S
T216C396K020(2)S
T216C476K020(2)S
T216D566K020(2)S
T216D686K020(2)S
T216D826K020(2)S
T216D107K020(2)S
T216B565K035(2)S
T216B685K035(2)S
T216C226K035(2)S
T216D276K035(2)S
T216D336K035(2)S
T216D396K035(2)S
Part Number
KEMET
Equivalent
Military
Rated
Voltage
Rated
Capacitance
Case
Size
Code
DC
Leakage
DF % at
25°C
ESR
MIL–PRF–39003 (CSS13 Style)
(1) To complete MIL–PRF–39003 dash part number, insert S for sleeved or U for unsleeved. If “U” ordered also use C0100.
(2) To complete KEMET Part Number (T216, T256), insert Graded failure rate - B for .1%/k hours, C for .01%/k hours. Designates reliability level.
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
T2037_T216_AXIAL_T256 • 2/5/2019
3
Tantalum Through-Hole Capacitors – Hermetically Sealed
T216 Series Axial MIL–PRF–39003 (CSS13 Style) and T256 (CSS33 Style)
Table 1A – T216 Ratings & Part Number Reference cont'd
MIL–PRF–39003 (CSS13 Style)
Rated
Voltage
Rated
Capacitance
Case
Size
Code
DC
Leakage
DF
% at
25°C
Dash Number Reference
ESR
Failure Rate Level
(%/1,000 Hours)
MIL–PRF–39003/10
Graded
(V) 85°C
35
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
75
75
75
75
75
75
75
75
75
75
75
75
75
75
75
75
75
75
75
(V) 85°C
µF
47.0
0.12
0.15
0.18
0.22
0.27
0.33
0.39
0.47
0.56
0.68
0.82
1.0
1.2
1.5
1.8
2.2
2.7
3.3
3.9
4.7
5.6
6.8
8.2
10.0
12.0
15.0
18.0
22.0
0.15
0.18
0.22
0.27
0.33
0.39
0.47
0.56
0.68
0.82
1.0
1.2
1.5
1.8
2.2
2.7
3.3
3.9
4.7
µF
D
A
A
A
A
A
A
A
A
A
A
A
A
B
B
B
B
B
B
B
B
C
C
C
C
C
C
C
D
A
A
A
A
A
A
A
A
A
B
B
B
B
B
B
B
B
B
C
µA at 25°C
Maximum/5 Minutes
8.0
0.3
0.3
0.3
0.3
0.3
0.3
0.3
0.3
0.3
0.3
0.3
0.4
0.4
0.6
0.7
0.8
1.0
1.2
1.5
1.7
2.2
2.2
2.5
2.5
3.0
4.0
4.5
5.5
0.3
0.3
0.3
0.3
0.3
0.3
0.3
0.3
0.3
0.3
0.4
0.4
0.6
0.7
0.8
1.0
1.2
1.5
3.0
µA at 25°C
Maximum/5 Minutes
120 Hz
Maximum
6
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
6
6
6
6
6
6
6
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
120 Hz
Maximum
Ω at25°C
100 kHz Max
0.14
6.50
5.50
5.00
4.00
3.50
3.30
3.20
3.00
2.50
1.80
1.60
1.40
1.20
1.10
0.92
0.80
0.68
0.62
0.56
0.51
0.44
0.40
0.36
0.33
0.30
0.27
0.25
0.20
4.4
4.0
3.5
3.1
2.8
2.6
2.4
2.25
2.10
1.47
1.40
1.33
1.06
0.92
0.80
0.68
0.62
0.56
0.47
Ω at25°C
100 kHz Max
B
(0.1)
2049(1)
2067(1)
2068(1)
2069(1)
2070(1)
2071(1)
2072(1)
2073(1)
2074(1)
2075(1)
2076(1)
2077(1)
2078(1)
2079(1)
2080(1)
2081(1)
2082(1)
2083(1)
2084(1)
2085(1)
2086(1)
2087(1)
2088(1)
2089(1)
2090(1)
2091(1)
2092(1)
2093(1)
2094(1)
2097(1)
2098(1)
2099(1)
2100(1)
2101(1)
2102(1)
2103(1)
2104(1)
2105(1)
2106(1)
2107(1)
2108(1)
2109(1)
2110(1)
2111(1)
2112(1)
2113(1)
2114(1)
2115(1)
B
(0.1)
C
(0.01)
3049(1)
3067(1)
3068(1)
3069(1)
3070(1)
3071(1)
3072(1)
3073(1)
3074(1)
3075(1)
3076(1)
3077(1)
3078(1)
3079(1)
3080(1)
3081(1)
3082(1)
3083(1)
3084(1)
3085(1)
3086(1)
3087(1)
3088(1)
3089(1)
3090(1)
3091(1)
3092(1)
3093(1)
3094(1)
3097(1)
3098(1)
3099(1)
3100(1)
3101(1)
3102(1)
3103(1)
3104(1)
3105(1)
3106(1)
3107(1)
3108(1)
3109(1)
3110(1)
3111(1)
3112(1)
3113(1)
3114(1)
3115(1)
C
(0.01)
Part Number
T216D476K035(2)S
T216A124K050(2)S
T216A154K050(2)S
T216A184K050(2)S
T216A224K050(2)S
T216A274K050(2)S
T216A334K050(2)S
T216A394K050(2)S
T216A474K050(2)S
T216A564K050(2)S
T216A684K050(2)S
T216A824K050(2)S
T216A105K050(2)S
T216B125K050(2)S
T216B155K050(2)S
T216B185K050(2)S
T216B225K050(2)S
T216B275K050(2)S
T216B335K050(2)S
T216B395K050(2)S
T216B475K050(2)S
T216C565K050(2)S
T216C685K050(2)S
T216C825K050(2)S
T216C106K050(2)S
T216C126K050(2)S
T216C156K050(2)S
T216C186K050(2)S
T216D226K050(2)S
T216A154K075(2)S
T216A184K075(2)S
T216A224K075(2)S
T216A274K075(2)S
T216A334K075(2)S
T216A394K075(2)S
T216A474K075(2)S
T216A564K075(2)S
T216A684K075(2)S
T216B824K075(2)S
T216B105K075(2)S
T216B125K075(2)S
T216B155K075(2)S
T216B185K075(2)S
T216B225K075(2)S
T216B275K075(2)S
T216B335K075(2)S
T216B395K075(2)S
T216C475K075(2)S
Part Number
KEMET
Equivalent
Military
Rated
Voltage
Rated
Capacitance
Case
Size
Code
DC
Leakage
DF % at
25°C
ESR
MIL–PRF–39003 (CSS13 Style)
(1) To complete MIL–PRF–39003 dash part number, insert S for sleeved or U for unsleeved. If “U” ordered also use C0100.
(2) To complete KEMET Part Number (T216, T256), insert Graded failure rate - B for .1%/k hours, C for .01%/k hours. Designates reliability level.
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
T2037_T216_AXIAL_T256 • 2/5/2019
4
Tantalum Through-Hole Capacitors – Hermetically Sealed
T216 Series Axial MIL–PRF–39003 (CSS13 Style) and T256 (CSS33 Style)
Table 1A – T216 Ratings & Part Number Reference cont'd
MIL–PRF–39003 (CSS13 Style)
Rated
Voltage
Rated
Capacitance
Case
Size
Code
DC
Leakage
DF
% at
25°C
Dash Number Reference
ESR
Failure Rate Level
(%/1,000 Hours)
MIL–PRF–39003/10
Graded
(V) 85°C
75
75
75
75
75
75
(V) 85°C
µF
5.6
6.8
8.2
10.0
12.0
15.0
µF
C
C
C
C
D
D
µA at 25°C
Maximum/5 Minutes
3.0
5.0
5.0
5.0
5.0
7.0
µA at 25°C
Maximum/5 Minutes
120 Hz
Maximum
4
6
6
6
6
6
120 Hz
Maximum
Ω at25°C
100 kHz Max
0.44
0.44
0.36
0.33
0.26
0.23
Ω at25°C
100 kHz Max
B
(0.1)
2116(1)
2117(1)
2118(1)
2119(1)
2120(1)
2121(1)
B
(0.1)
C
(0.01)
3116(1)
3117(1)
3118(1)
3119(1)
3120(1)
3121(1)
C
(0.01)
Part Number
T216C565K075(2)S
T216C685K075(2)S
T216C825K075(2)S
T216C106K075(2)S
T216D126K075(2)S
T216D156K075(2)S
Part Number
KEMET
Equivalent
Military
Rated
Voltage
Rated
Capacitance
Case
Size
Code
DC
Leakage
DF % at
25°C
ESR
MIL–PRF–39003 (CSS13 Style)
Table 1B – T256 Ratings & Part Number Reference
MIL–PRF–39003 (CSS33 Style)
Rated
Voltage
Rated
Capacitance
Case
Size
Code
DC
Leakage
DF
% at
25°C
Dash Number Reference
ESR
Failure Rate Level
(%/1,000 Hours)
MIL–PRF–39003/10
Graded
(V) 85°C
6
6
6
6
6
6
6
6
6
10
10
10
10
10
10
10
(V) 85°C
µF
10.0
12.0
100.0
330.0
390.0
470.0
680.0
820.0
1000.0
6.8
8.2
47.0
56.0
68.0
82.0
220.0
µF
A
A
B
C
C
C
D
D
D
A
A
B
B
B
B
C
µA at 25°C
Maximum/5 Minutes
0.5
0.5
1.0
2.0
2.0
2.0
5.0
5.0
5.0
0.5
0.5
1.0
1.0
1.0
1.0
1.0
µA at 25°C
Maximum/5 Minutes
120 Hz
Maximum
6
6
8
8
10
10
10
10
10
6
6
6
6
6
6
2
120 Hz
Maximum
Ω at25°C
100 kHz Max
0.70
0.60
0.20
0.065
0.065
0.060
0.060
0.055
0.050
0.80
0.70
0.22
0.20
0.18
0.15
0.090
Ω at25°C
100 kHz Max
B
(0.1)
2500(1)
2501(1)
2502(1)
2503(1)
2504(1)
2505(1)
2506(1)
2507(1)
2508(1)
2509(1)
2510(1)
2511(1)
2512(1)
2513(1)
2514(1)
2515(1)
B
(0.1)
C
(0.01)
3500(1)
3501(1)
3502(1)
3503(1)
3504(1)
3505(1)
3506(1)
3507(1)
3508(1)
3509(1)
3510(1)
3511(1)
3512(1)
3513(1)
3514(1)
3515(1)
C
(0.01)
Part Number
T256A106K006(2)S
T256A126K006(2)S
T256B107K006(2)S
T256B337K006(2)S
T256C397K006(2)S
T256C447K006(2)S
T256D687K006(2)S
T256D827K006(2)S
T256D108K006(2)S
T256A685K010(2)S
T256A825K010(2)S
T256B476K010(2)S
T256B566K010(2)S
T256B686K010(2)S
T256B826K010(2)S
T256C227K010(2)S
Part Number
KEMET
Equivalent
Military
Rated
Voltage
Rated
Capacitance
Case
Size
Code
DC
Leakage
DF % at
25°C
ESR
MIL–PRF–39003 (CSS33 Style)
(1) To complete MIL–PRF–39003 dash part number, insert S for sleeved or U for unsleeved. If “U” ordered also use C0100.
(2) To complete KEMET Part Number (T216, T256), insert Graded failure rate - B for .1%/k hours, C for .01%/k hours. Designates reliability level.
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
T2037_T216_AXIAL_T256 • 2/5/2019
5
京公网安备 11010802033920号
EEWORLD
