Tantalum Surface Mount Capacitors – Space Grade
T497 Space Grade Commercial Off-The-Shelf (COTS)
MnO
2
(CWR09/19/29 Style)
KEMET's Space Grade capacitors are suitable for use by
military/aerospace customers in high reliability space
applications. These capacitors meet the requirements
of MIL–PRF–55365 as well as MIL–STD–1580. These
capacitors incorporate an intensive testing and screening
protocol which is customizable depending upon
customer's specific needs.
The full part number allows for designation of surge current
level (10 cycles −55°C and +85°C before and/or after
Weibull grading, 10 cycles +25°C), performance testing
level (see chart for details on available options), ESR (low
and standard), and termination finish (see description in
each series). Fused versions are available for built-in circuit
protection, as well as multi-anode designs for very low ESR
values.
Benefits
• Low profile case sizes
• 100% thermal shock
• 100% surge current test available on all case sizes
• Various termination finishes available
• Weibull Grading C (0.01%/1,000 hours)
• Operating temperature range of −55˚C to +125˚C
• Capacitance values of 0.1 μF to 330 μF
• Voltage rating of 4 – 50 VDC
Click image above for interactive 3D content
Open PDF in Adobe Reader for full functionality
Applications
Typical applications include decoupling and filtering in medical, defense, and aerospace applications.
K-SIM
For a detailed analysis of specific part numbers, please visit ksim.kemet.com to access KEMET's K-SIM software. KEMET
K-SIM is designed to simulate behavior of components with respect to frequency, ambient temperature, and DC bias levels.
One world. One KEMET
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
T2027_T497_SPACE • 5/11/2017
1
Tantalum Surface Mount Capacitors – Space Grade
T497 Space Grade Commercial Off-The-Shelf (COTS) MnO
2
(CWR09/19/29 Style)
Ordering Information
T
Capacitor
Class
T=
Tantalum
497
Series
High
Grade
–
Space
Grade
G
226
K
020
Voltage
C
Failure
Rate/
Design
H
Lead
Material
61
Surge
62 = 10
Cycles after
Weibull,25°C
63 = 10
Cycles, after
Weibull,−55°C
and 85°C
64 = 10 Cycles
before Weibull,
−55°C and 85°C
65 = 10 Cycles
Before and After
Weibull, −55°C
and 85°C
2
ESR
A
Testing
Packaging
(C-Spec)
Blank = 7" Reel
7280 = 13" Reel
7610 = Bulk Bag
7640 = Bulk
plastic box
WAFL = Waffle
Pack
Case Capacitance Capacitance
Size Code (pF)
Tolerance
A
B
C
D
E
F
G
H
X
First two
digits
represent
significant
figures.
Third digit
specifies
number of
zeros.
K = ±10% 004 = 4 V
C = C = Hot
M = ±20% 006 = 6.3 V 0.01% Solder Dipped
010 = 10 V 1,000 H = Standard
015 = 15 V hours Solder Coated
020 = 20 V
(SnPb 5% Pb
025 = 25 V
minimum)
035 = 35 V
B = Gold
050 = 50 V
Plated
1 = ESR – A = Option A
Standard B = Option B
2 = ESR – C = Option C
Low
Performance Characteristics
Item
Operating Temperature
Rated Capacitance Range
Capacitance Tolerance
Rated Voltage Range
DF (120 Hz)
ESR (100 kHz)
Leakage Current
−55°C to 125°C
0.1 – 330 µF at 120 Hz/25°C
K Tolerance (10%), M Tolerance (20%)
4 – 50 V
Refer to Part Number Electrical Specification Table
Refer to Part Number Electrical Specification Table
≤ 0.01CV (µA) at rated voltage after 5 minutes
Performance Characteristics
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
T2027_T497_SPACE • 5/11/2017
2
Tantalum Surface Mount Capacitors – Space Grade
T497 Space Grade Commercial Off-The-Shelf (COTS) MnO
2
(CWR09/19/29 Style)
Qualification
Test
Endurance
Condition
Δ C/C
105°C at rated voltage, 2,000 hours
125°C at 2/3 rated voltage, 2,000 hours
DF
DCL
ESR
Δ C/C
DF
DCL
ESR
Δ C/C
Humidity
85°C, 85% RH, 1,000 hours, No Load
DF
DCL
+25°C
Extreme temperature exposure at a
succession of continuous steps at +25°C,
−55°C, +25°C, +85°C, +125°C, +25°C
Δ C/C
DF
DCL
IL*
IL
IL
Δ C/C
DF
DCL
ESR
Δ C/C
DF
DCL
Characteristics
Within −20%/+10% of initial value
≤ Initial Limit
2 x IL at 125°C
2 x Initial Limit
Within −20%/+10% of initial value
Within initial limits
Within 2.0 x initial limit
Within 2.0 x initial limit
Within −5%/+35% of initial value
≤ Initial Limit
Within 3.0 x initial limit
−55°C
±20%
IL
n/a
+85°C
±20%
1.2 x IL
10 x IL
+125°C
±30%
1.5 x IL
10 x IL
Storage Life
125°C at 0 volts, 2,000 hours
Temperature Stability
Within −20%/+10% of initial value
Within initial limits
Within initial limits
Within initial limits
Within ±10% of initial value
Within initial limits
Within initial limits
Surge Voltage
105°C, 1.32 x rated voltage 1,000 cycles
Mechanical Shock/
Vibration
*IL = Initial Limit
MIL–STD–202, Method 213, Condition I, 100 G peak.
MIL–STD–202, Method 204, Condition D, 10 Hz to 2,000
Hz, 20 G peak
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
T2027_T497_SPACE • 5/11/2017
3
Tantalum Surface Mount Capacitors – Space Grade
T497 Space Grade Commercial Off-The-Shelf (COTS) MnO
2
(CWR09/19/29 Style)
Test Methods
Test Sequence
100% Serialization
100% IR Reflow
100% Thermal Shock
100% Electrical Verification
Read and Record Attributes/Variables Data
100% Surge Current, Option C with 5% PDA Calculation
100% Electrical Verification
Read and Record Attributes/Variables Data
100% Voltage Aging, 10 hours at 1.32 Vr
100% Electrical Verification
100% Weibull Grading B or C
100% Electrical Verification
Read and Record Attributes/Variables Data
100% Surge Current, Option A or B with 5% PDA Calculation
100% Electrical Verification
Read and Record Attributes/Variables Data
3 Sigma Screening – All Electricals
Read and Record Attributes/Variables Data
Destructive Physical Analysis (DPA) (5 pieces- each lot)
Group B Testing (22 pieces – each lot)
Temperature Stability – sample
Solderability – Sample
Group C Testing (57 pieces – each Lot)**
100% X-ray
100% X-ray – 2 Plane***
100% Physical Dimension Verification
Data Pack
Group A and C Summaries
2 Plane X-ray JPEG photos
DPA Report
Attributes/Variables Data for Cap/Df/DCL/ESR
X
X
X
X
X
X
X
Test Method
KEMET Standard
MIL–PRF–55365
MIL–PRF–55365
KEMET Standard
KEMET Standard
MIL–PRF–55365 with 5% PDA Calculation
KEMET Standard
KEMET Standard
MIL–PRF–55365
KEMET Standard
MIL–PRF–55365
KEMET Standard
KEMET Standard
MIL–PRF–55365 with 5% PDA Calculation
KEMET Standard
KEMET Standard
KEMET Standard
KEMET Standard
MIL–PRF–55365
* See Note Below
MIL–PRF–55365
MIL–PRF–55365
MIL–PRF–55365
MIL–PRF–55365
MIL–PRF–55365 and KEMET Standard
MIL–PRF–55365
Option A
X
X
X
Option B
X
X
Option C
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
= Included in test option
* Group B Testing = 10,000 Cycles Surge Current, 85°C, 40% Vr
** Group C Post Moisture ESR limit = 1.25 initial limit
*** 2 Plane X-ray = Top and side views, molded case wall thickness minimum 0.005" on all sides, negative/positive termination attachment criteria per
MIL–STD–1580
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
T2027_T497_SPACE • 5/11/2017
4
Tantalum Surface Mount Capacitors – Space Grade
T497 Space Grade Commercial Off-The-Shelf (COTS) MnO
2
(CWR09/19/29 Style)

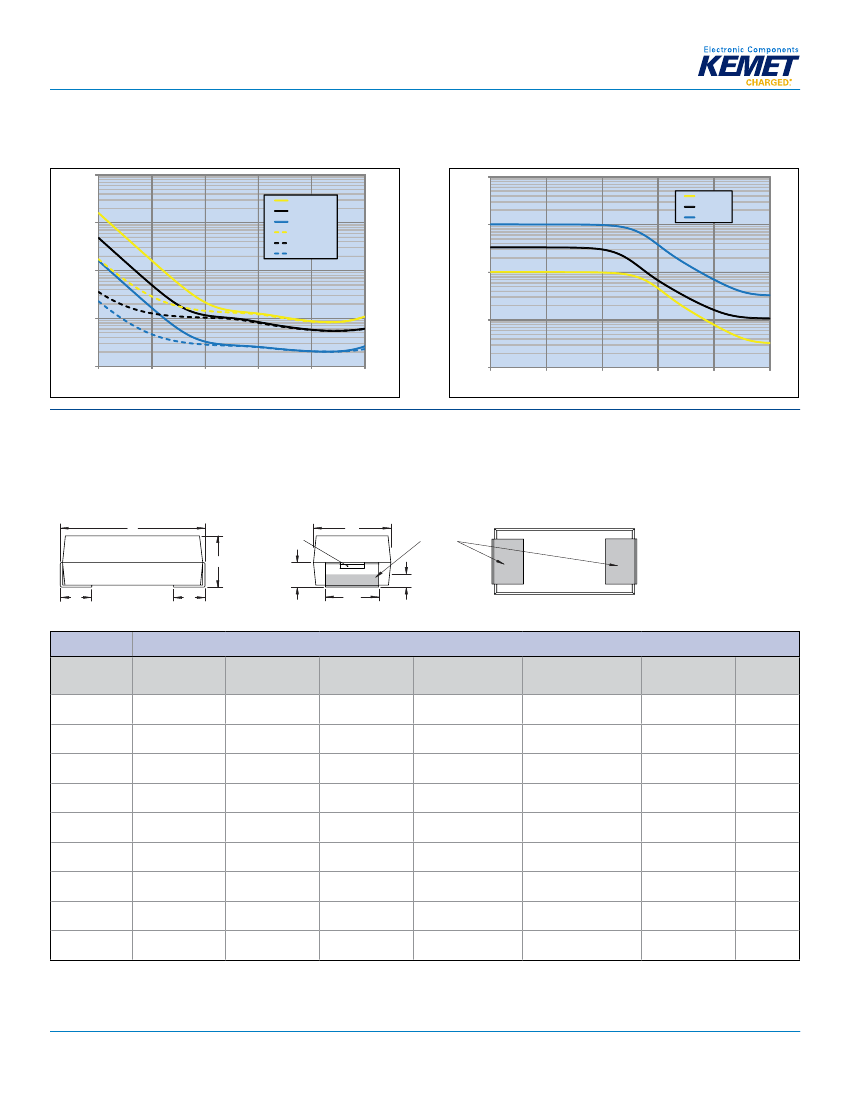

Electrical Characteristics
ESR vs. Frequency
1,000
T497D106/15_IMP
T497F336/15_IMP
Capacitance vs. Frequency
1,000
T497D106/15
T497F336/15
Impedance, ESR (Ohms)
T497D106/15_ESR
T497F336/15_ESR
T497F107/15_ESR
10
Capacitance (µF)
100
T497H107/15_IMP
100
T497H107/15
10
1
1
0.1
100
1,000
10,000
Frequency (Hz)
100,000
1,000,000
10,000,000
0
100
1,000
10,000
Frequency (Hz)
100,000
1,000,000
10,000,000
Dimensions – Millimeters (Inches)
Metric will govern
SIDE VIEW
L
H
P
P
Termination cutout
at KEMET's option,
either end
END VIEW
W
Solderable
Surfaces
BOTTOM VIEW
H
2
W
2
½ H
2
Min.
Case Size
KEMET
A
B
C
D
E
F
G
H
X
L ±0.38 (0.015)
2.54 (0.100)
3.81 (0.150)
5.08 (0.200)
3.81 (0.150)
5.08 (0.200)
5.59 (0.220)
6.73 (0.265)
7.24 (0.285)
6.93 (0.273)
W ±0.38 (0.015)
1.27 (0.050)
1.27 (0.050)
1.27 (0.050)
2.54 (0.100)
2.54 (0.100)
3.43 (0.135)
2.79 (0.110)
3.81 (0.150)
5.41 (0.213)
H ±0.38 (0.015)
1.27 (0.050)
1.27 (0.050)
1.27 (0.050)
1.27 (0.050)
1.27 (0.050)
1.78 (0.070)
2.79 (0.110)
2.79 (0.110)
2.74 (0.108)
Component
P +0.25 (0.010),
−0.13 (0.005)
0.76 (0.030)
0.76 (0.030)
0.76 (0.030)
0.76 (0.030)
0.76 (0.030)
0.76 (0.030)
1.27 (0.050)
1.27 (0.050)
1.19 (0.047)
W
2
1.27±0.13
(0.050±0.005)
1.27±0.13
(0.050±0.005)
1.27±0.13
(0.050±0.005)
2.41+0.13, −0.25
(0.095+0.005, −0.010)
2.41+0.13, −0.25
(0.095+0.005, −0.010)
3.30±0.13
(0.130±0.005)
2.67±0.13
(0.105±0.005)
3.68+0.013, −0.51
(0.145+0.005, −0.020)
3.05±0.13
(0.120±0.005)
H
2
Minimum
0.76 (0.030)
0.76 (0.030)
0.76 (0.030)
0.76 (0.030)
0.76 (0.030)
1.02 (0.040)
1.52 (0.060)
1.52 (0.060)
1.22 (0.048)
Net Weight
(mg)
39.91
68.73
146.5
264.12
421.63
173.63
266.42
349.01
590.44
Note: When solder coated terminations are required, add an additional 0.38 mm (0.015 inch) to the above tolerances for "L", "W", "H", "P" ,"W
2
" and "H
2
"
These weights are provided as a reference. If exact weights are needed, please contact your KEMET Sales Representative.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
T2027_T497_SPACE • 5/11/2017
5
