GRM1554P1HR60BD01J: DescriptionCAPACITOR, CERAMIC, MULTILAYER, 50V, PK, 0.0000006uF, SURFACE MOUNT, 0402, CHIP, ROHS COMPLIANT; CategoryPassive components capacitor; File Size41KB，1 Pages; ManufacturerMurata; Websitehttps://www.murata.com; Environmental Compliance

Download Datasheet Parametric Compare View All

GRM1554P1HR60BD01J Overview

CAPACITOR, CERAMIC, MULTILAYER, 50V, PK, 0.0000006uF, SURFACE MOUNT, 0402, CHIP, ROHS COMPLIANT

GRM1554P1HR60BD01J Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Murata
package instruction	, 0402
Reach Compliance Code	compli
ECCN code	EAR99
capacitance	6e-7 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	0.5 mm
length	1 mm
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	16.67%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	TR, PAPER, 13 INCH
positive tolerance	16.67%
Rated (DC) voltage (URdc)	50 V
size code	0402
surface mount	YES
Temperature characteristic code	PK
Temperature Coefficient	-150+/-250ppm/Cel ppm/°C
Terminal shape	WRAPAROUND
width	0.5 mm
Base Number Matches	1

Preview

Download Datasheet

View All

GRM1554P1HR60BD01#

# indicates a package specification code.

< List of part numbers with package codes >

GRM1554P1HR60BD01D , GRM1554P1HR60BD01W , GRM1554P1HR60BD01J

Shape

References

Packaging

D

J

Specifications

φ180mm Paper taping

φ330mm Paper taping

φ180mm Paper taping (W8P1*)

* Width : 8mm, Pocket pitch : 1mm

Minimum quantity

10000

50000

W

20000

L size

W size

T size

External terminal width e

Distance between external terminals g

Size code in inch(mm)

1.0 ±0.05mm

1 piece

0.5 ±0.05mm

φ180mm Reel

0.5 ±0.05mm

0.15 to 0.35mm

0.3mm min.

0402 (1005)

Mass (typ.)

1.6mg

118g

Specifications

Capacitance

Rated voltage

Temperature characteristics (complied standard)

Temperature coefficient

Temperature range of temperature characteristics

Operating temperature range

0.60pF ±0.1pF

50Vdc

PK(JIS)

-150±250ppm/℃

20 to 85℃

-25 to 85℃

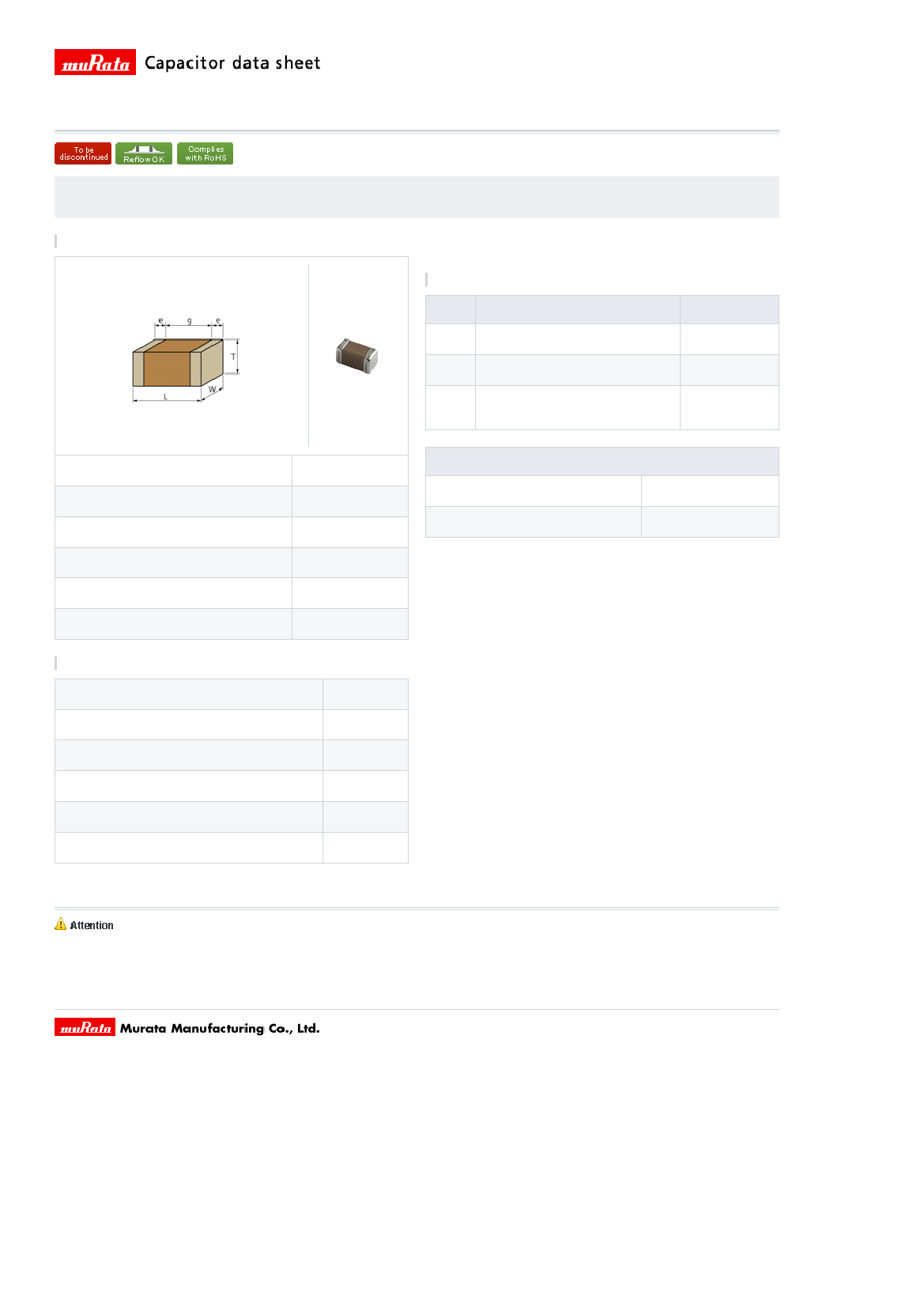

1 of 1

1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it s specifications are subject to change or our products in it may be discontinued

without advance notice. Please check with our sales representatives or product engineers before ordering.

2.This datasheet has only typical specifications because there is no space for detailed specifications.

Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.

URL : http://www.murata.co.jp/

Last updated: 2013/11/20

GRM1554P1HR60BD01J Related Products

	GRM1554P1HR60BD01J	GRM1554P1HR60BD01D
Description	CAPACITOR, CERAMIC, MULTILAYER, 50V, PK, 0.0000006uF, SURFACE MOUNT, 0402, CHIP, ROHS COMPLIANT	CAPACITOR, CERAMIC, MULTILAYER, 50V, PK, 0.0000006uF, SURFACE MOUNT, 0402, CHIP, ROHS COMPLIANT
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
Maker	Murata	Murata
package instruction	, 0402	, 0402
Reach Compliance Code	compli	compli
ECCN code	EAR99	EAR99
capacitance	6e-7 µF	6e-7 µF
Capacitor type	CERAMIC CAPACITOR	CERAMIC CAPACITOR
dielectric materials	CERAMIC	CERAMIC
high	0.5 mm	0.5 mm
length	1 mm	1 mm
Installation features	SURFACE MOUNT	SURFACE MOUNT
multi-layer	Yes	Yes
negative tolerance	16.67%	16.67%
Number of terminals	2	2
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-25 °C	-25 °C
Package shape	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
Package form	SMT	SMT
method of packing	TR, PAPER, 13 INCH	TR, PAPER, 7 INCH
positive tolerance	16.67%	16.67%
Rated (DC) voltage (URdc)	50 V	50 V
size code	0402	0402
surface mount	YES	YES
Temperature characteristic code	PK	PK
Temperature Coefficient	-150+/-250ppm/Cel ppm/°C	-150+/-250ppm/Cel ppm/°C
Terminal shape	WRAPAROUND	WRAPAROUND
width	0.5 mm	0.5 mm
Base Number Matches	1	1
