MAS3764TCS datasheet, PDF - EEWORLD Datasheet

MAS3764TCS: DescriptionMASK ROM, 8KX8, 55ns, CMOS, CDIP28; Categorystorage storage; File Size350KB，8 Pages; ManufacturerDynex; Websitehttp://www.dynexsemi.com/

Download Datasheet Parametric Compare View All

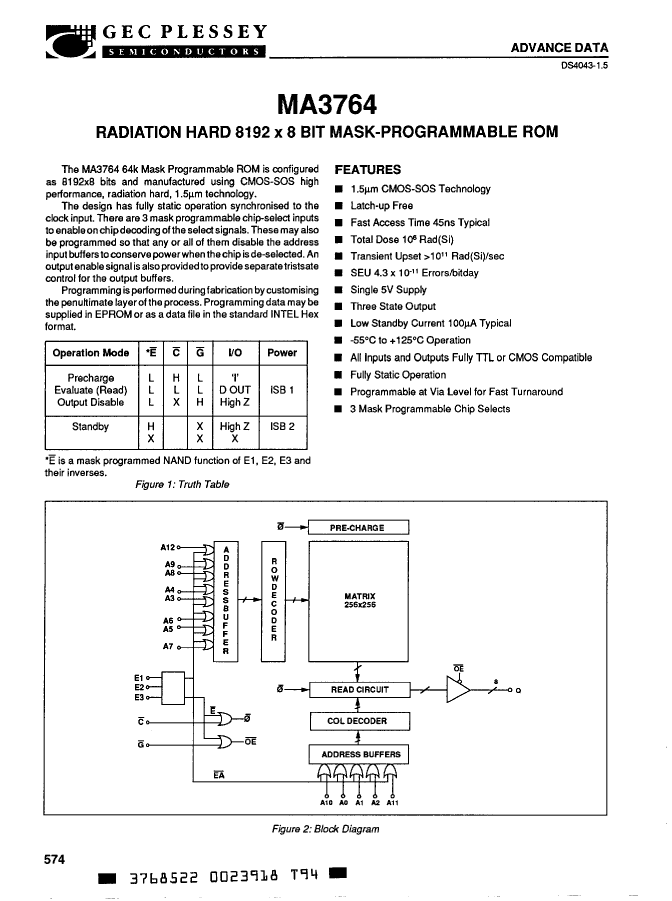

MAS3764TCS Overview

MASK ROM, 8KX8, 55ns, CMOS, CDIP28

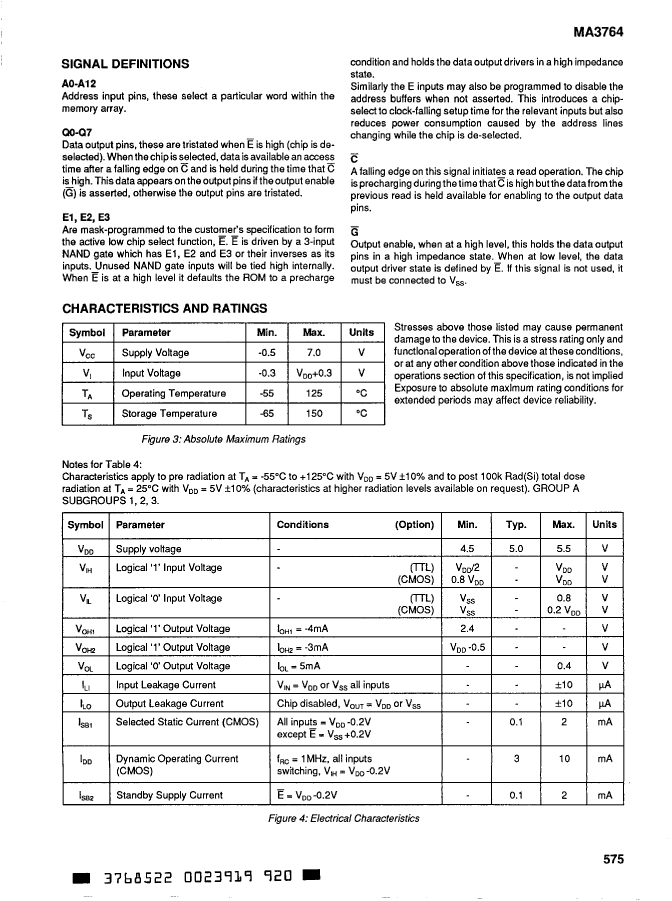

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	DIP, DIP28,.6
Reach Compliance Code	unknow

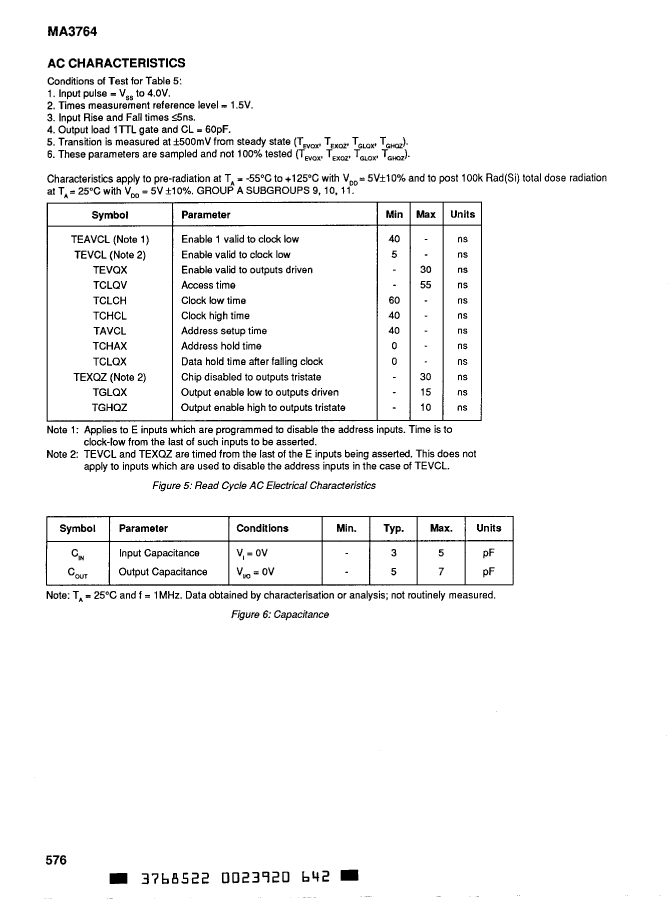

Maximum access time	55 ns
JESD-30 code	R-XDIP-T28
JESD-609 code	e0
memory density	65536 bi
Memory IC Type	MASK ROM
memory width	8
Number of terminals	28
word count	8192 words
character code	8000
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	8KX8
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP28,.6
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Certification status	Not Qualified
Filter level	38535V;38534K;883S
Maximum standby current	0.002 A
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1

	MAS3764TCS	MAS3764TCB	MAT3764TCB
Description	MASK ROM, 8KX8, 55ns, CMOS, CDIP28	MASK ROM, 8KX8, 55ns, CMOS, CDIP28	MASK ROM, 8KX8, 55ns, CMOS, CDIP28
Is it Rohs certified?	incompatible	incompatible	incompatible
package instruction	DIP, DIP28,.6	DIP, DIP28,.6	DIP, DIP28,.6
Reach Compliance Code	unknow	unknown	unknown
Maximum access time	55 ns	55 ns	55 ns
JESD-30 code	R-XDIP-T28	R-XDIP-T28	R-XDIP-T28
JESD-609 code	e0	e0	e0
memory density	65536 bi	65536 bit	65536 bit
Memory IC Type	MASK ROM	MASK ROM	MASK ROM
memory width	8	8	8
Number of terminals	28	28	28
word count	8192 words	8192 words	8192 words
character code	8000	8000	8000
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
organize	8KX8	8KX8	8KX8
Package body material	CERAMIC	CERAMIC	CERAMIC
encapsulated code	DIP	DIP	DIP
Encapsulate equivalent code	DIP28,.6	DIP28,.6	DIP28,.6
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE
power supply	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified
Filter level	38535V;38534K;883S	38535Q/M;38534H;883B	38535Q/M;38534H;883B
Maximum standby current	0.002 A	0.002 A	0.002 A
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	NO	NO	NO
technology	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL
Base Number Matches	1	1	1
