P528-150-S-C1A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The sensor> Sensor/transducer> P528-150-S-C1A

P528-150-S-C1A: DescriptionCapacitive Sensor, Sealed Gage, 0Psi Min, 150Psi Max, 0.50-4.50V,; CategoryThe sensor Sensor/transducer; File Size320KB，6 Pages; ManufacturerAIRPAX; Environmental Compliance

Download Datasheet Parametric View All

P528-150-S-C1A Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	P528-150-S-C1A	-	-	View	Buy Now

P528-150-S-C1A Overview

Capacitive Sensor, Sealed Gage, 0Psi Min, 150Psi Max, 0.50-4.50V,

P528-150-S-C1A Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	AIRPAX
Reach Compliance Code	compliant
Other features	IP 67, OVER VOLTAGE PROTECTION, SHORT CIRCUIT PROTECTION
shell	BRASS
Maximum working current	5 mA
Maximum operating temperature	120 °C
Minimum operating temperature	-30 °C
Output range	0.50-4.50V
Output type	VOLTAGE OUTPUT
port type	1/4-18NPT
Maximum pressure range	150 Psi
Minimum pressure range
Pressure sensing mode	SEALED GAGE
Response time	2000 µs
Sensor/Transducer Type	PRESSURE SENSOR,CAPACITIVE
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Termination type	CONNECTOR
Base Number Matches	1

Preview

Download Datasheet

View All

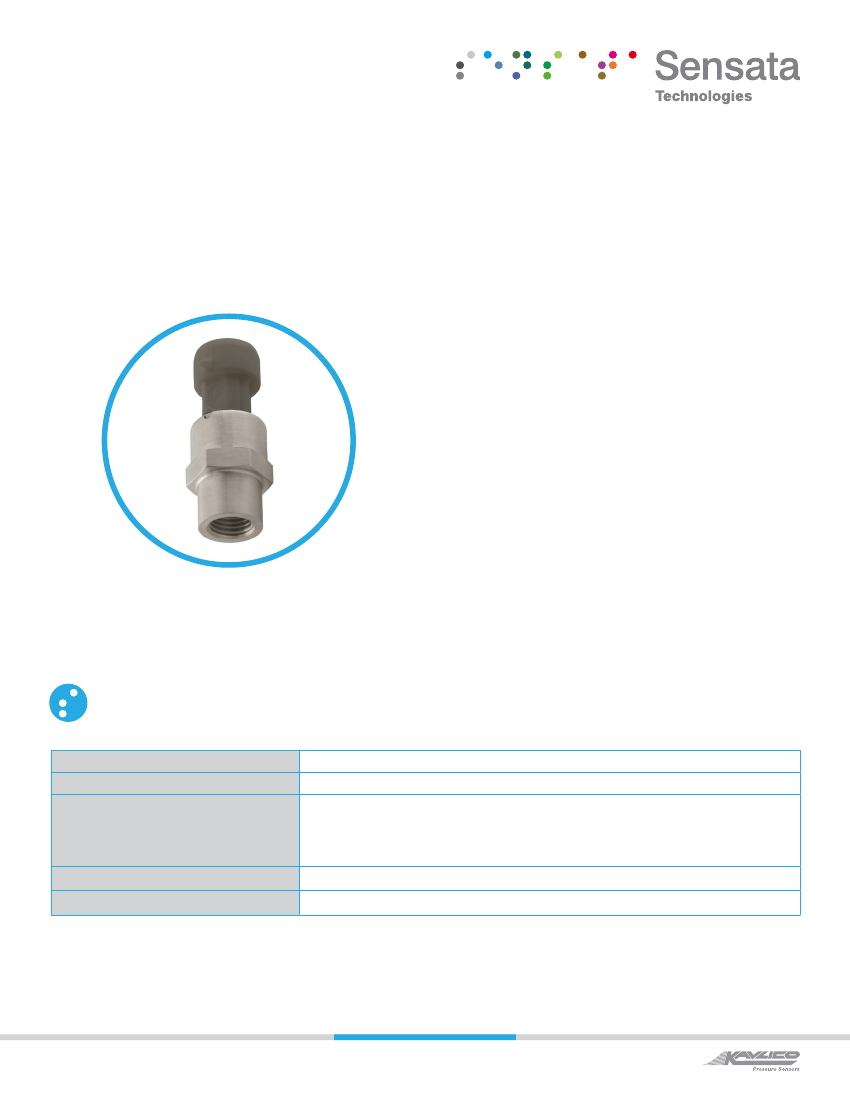

P528

Pressure Sensor

Description

The P528 incorporates Kavlico’s 4th generation ceramic capacitive sense element with the latest state of the art proprietary ASIC. Available in brass or

stainless steel housings, this multi-purpose sensor is rugged by design. Highly reliable, the P528 is ideal for measuring a broad range of process media

including hydrocarbon based fluids, air, and gases. The P528 package has a built-in Metri-Pack 150 series sealed electrical connector and is available

with popular pressure connection thread options. The sensor is offered with seal materials suitable for diverse applications. Standard pressure ranges

are available in PSI or Bar.

Features

• Small Size (3/4” Hex)

• External Hex for Easy Installation

• Linear Amplified Output

• Temperature Compensated

• Superior Long-Term Stability

• Low Power Consumption

• Minimum Life Expectancy: Ten Million Cycles

Applications

• Compressors

• Process Controls

• Instruments & Test Equipment

• Sterilizers

• Air Pressure

• Oil & Fuel Pressure

• Coolant Pressure

• Agricultural Equipment

• CNG & Natural Gas Engines

MAIN FEATURES

Pressure Ranges

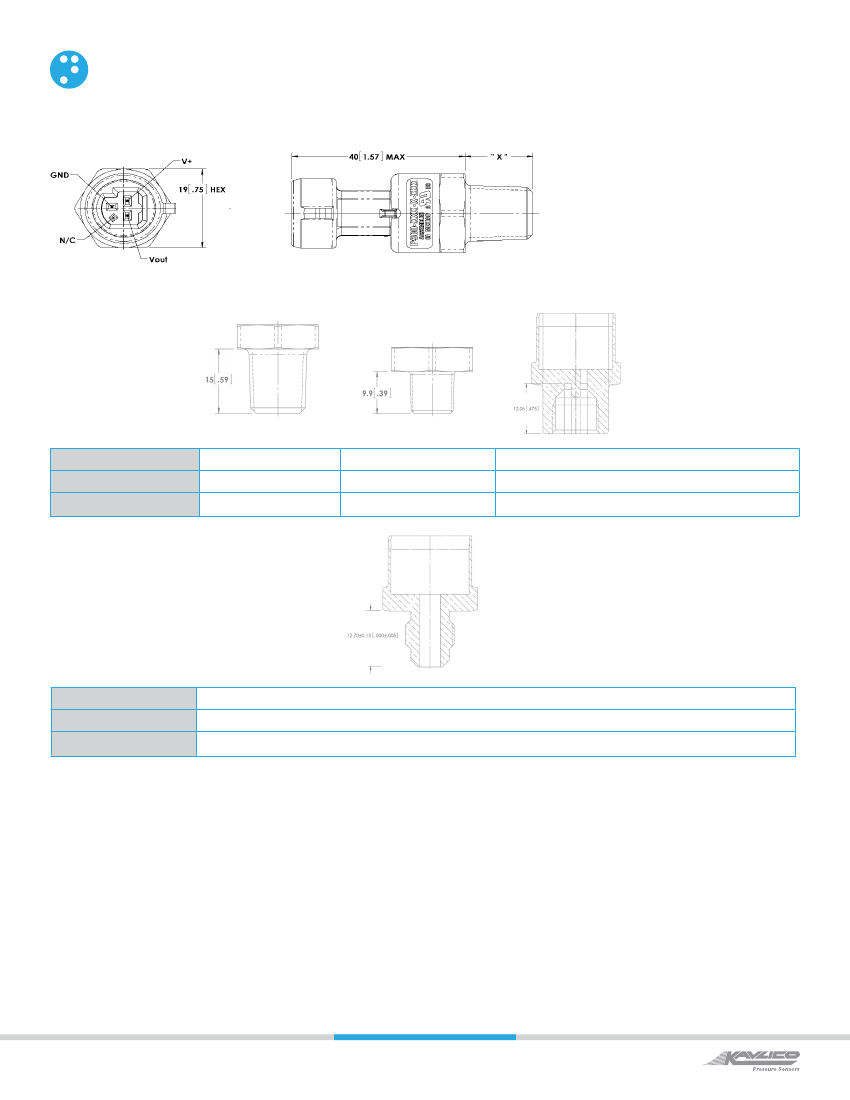

Electrical Connection

Pressure Connection

Housing Material

Output Voltage

0 - 6 up to 0 - 70 Bar and 0 - 100 up to 0 - 1000 PSI

Packard Electric Metri-Pack 150 Series

1/4”SAE Female Flare w/ Schrader Deflator

7/16”-20 UNF-2A external threads

1/4”-18 NPT

1/8”-27 NPT (external threads)

Brass (up to 300 psi) and stainless steel (above 300 psi)

0.5 to 4.5 Vdc

Page 1

www.sensata.com
